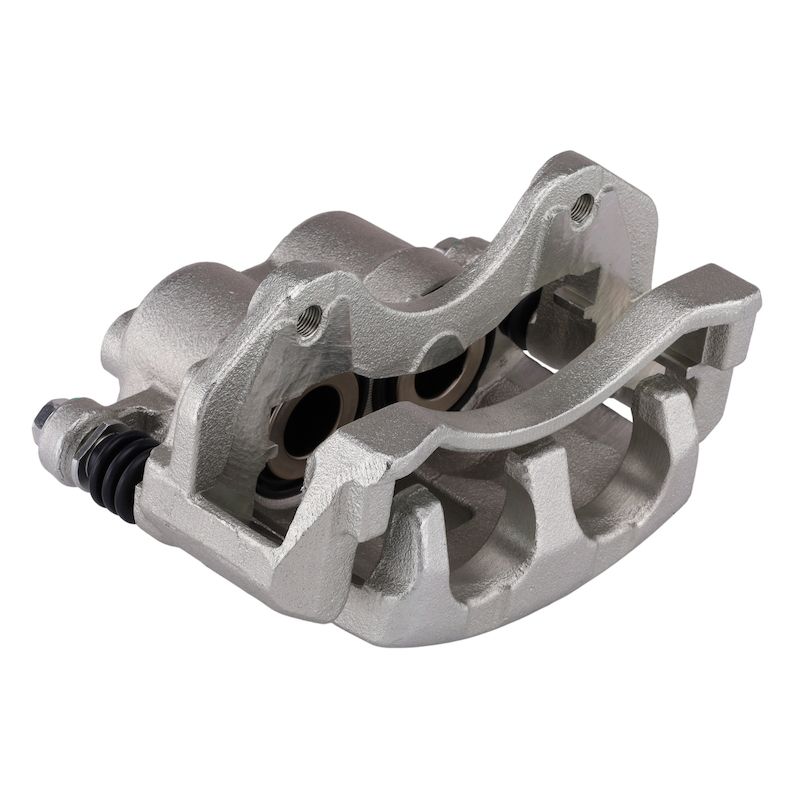

Pagid 355786792 Disc Brake Caliper - Front Left
| Brand | Pagid 355786792 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 48.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9.5 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Jeep · 6 vehicles |
OE-standard replacement. Built for consistent braking performance and service fitment.
Cast iron construction. Powder-coated gray finish helps resist corrosion in daily use.
Complete service hardware. Includes bracket, slides, bleeder screw, and abutment clips.
Cross-references 05093181AA and 05093181AB for the same application. See all 2.
Overview
This Pagid disc brake caliper is a standard replacement for select Jeep Grand Cherokee applications. It is built as a floating caliper with a cast iron body, powder-coated finish, and two steel pistons for consistent braking response.
Part number 355786792 is engineered to meet OE standards and is backed by HELLA Brake Calipers program coverage for European aftermarket applications and European nameplates in the US.
Key Features
- Standard replacement disc brake caliper for direct service use
- Floating caliper design with 2 pistons and 48.00 mm piston diameter
- Cast iron caliper body with powder-coated gray finish
- Mounting bracket, slides, bleeder screw, abutment clips, and mounting hardware included
- Pad wear sensor not included
Detailed Description
Pagid 355786792 is a front left disc brake caliper for 1999-2004 Jeep Grand Cherokee applications. The floating design, steel pistons, and cast iron construction support stable brake operation under everyday driving loads, while the powder-coated finish adds corrosion resistance. This caliper includes the mounting bracket, slides, bleeder screw, abutment clips, and mounting hardware for a complete service replacement.
This part cross-references Chrysler 05093181AA and 05093181AB for the same application.
Common Uses
- Restoring braking performance when the original caliper is sticking or seized
- Addressing uneven pad wear caused by caliper slide or piston issues
- Replacing a leaking caliper body or bleeder screw assembly
- Correcting brake pull or reduced braking response on the front axle
Installation Notes
Fits 2003-2004 Jeep Grand Cherokee, front left. Fits 1999-2002 Jeep Grand Cherokee, front left. Verify inlet thread size and brake hose connection before installation. Bleeding the brake system after installation is required to remove air from the hydraulic circuit.
Quality Assurance
Every Pagid brake caliper in this program is tested to meet OE standards for safety and performance.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Jeep | Grand Cherokee | Overland | — | — | Front Left | — |
| 2003 | Jeep | Grand Cherokee | Overland | — | — | Front Left | — |
| 2002 | Jeep | Grand Cherokee | Overland | — | — | Front Left | Color-Silver |
| 2001 | Jeep | Grand Cherokee | Limited | 4.7L | V8 | Front Left | Color-Silver |
| 2000 | Jeep | Grand Cherokee | Limited | 4.7L | V8 | Front Left | Color-Silver |
| 1999 | Jeep | Grand Cherokee | Limited | 4.7L | V8 | Front Left | Color-Silver |
