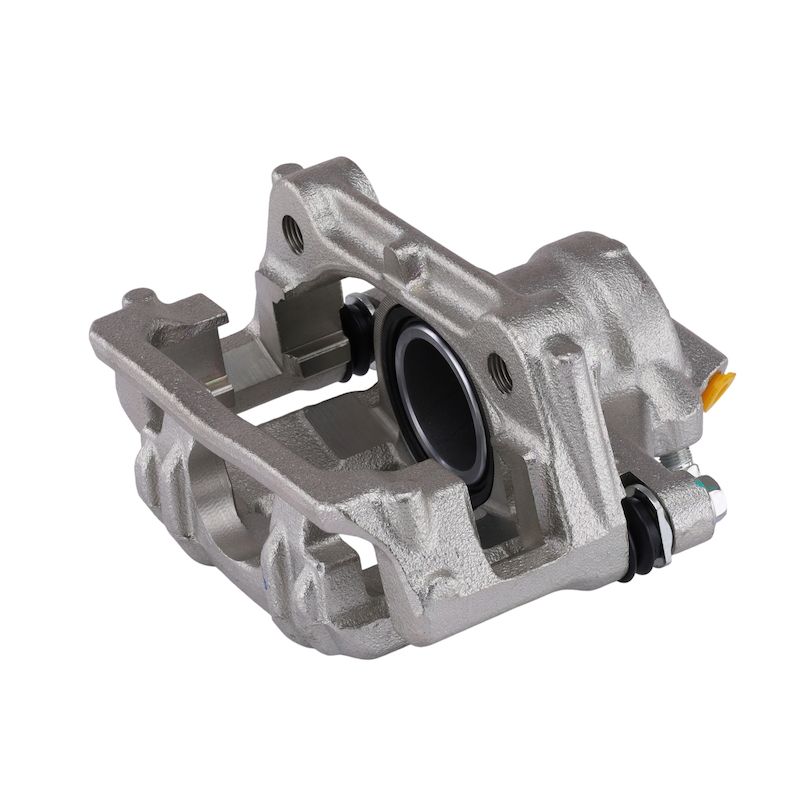

Pagid 355788762 Disc Brake Caliper - Rear Right
| Brand | Pagid 355788762 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 51.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Mercedes-Benz · 9 vehicles |
OE-standard testing. Built to meet OE requirements for safety and consistent braking performance.
Floating caliper design. Helps maintain even pad contact for smooth brake operation.
Cast iron construction. Powder-coated housing adds durability in a service replacement caliper.
Cross-references 2E0615406B, 2E0615424 and 0034207283 for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Disc Brake Caliper for Sprinter 2500
This Pagid disc brake caliper is a standard replacement unit built for the braking demands of the Mercedes-Benz Sprinter 2500. It is engineered to meet OE standards and is covered by HELLA Brake Calipers program testing for consistent fit and performance.
Key Features
- Standard replacement disc brake caliper with a floating design.
- Cast iron caliper body with a powder-coated gray finish.
- Includes mounting bracket, slides, bleeder screw, and mounting hardware.
- Single 51.00 mm piston with steel piston material.
- Compatible with brake systems that use a 9 mm inlet and M10 x 1.0 bleeder thread.
Detailed Description
Part number 355788762 is a rear right disc brake caliper for 2010-2018 Mercedes-Benz Sprinter 2500 applications. The floating caliper design helps maintain even pad contact, while the cast iron construction and powder-coated finish provide a durable service replacement for brake system repair. This part cross-references Mercedes-Benz and OE numbers 2E0615406B and A0034207283 for the same application.
HELLA Brake Calipers are developed for a wide range of European applications, including European nameplates in the US market. Pagid 355788762 is built to match the requirements of vehicle load, braking characteristics, and system design found in this platform. It is a direct service option for Sprinter brake maintenance where caliper replacement is required.
Common Repair Uses
- Restores braking performance when the caliper piston or seals are worn.
- Addresses sticking or uneven brake application at the wheel.
- Replaces a corroded or damaged caliper housing.
- Helps correct brake fluid leakage at the caliper assembly.
- Supports repair of brake drag or reduced pad movement.
Installation Notes
Fits 2010-2018 Mercedes-Benz Sprinter 2500, rear right. Verify piston diameter, inlet thread size, and bleeder thread specifications before installation. The caliper includes a mounting bracket and slides, which helps streamline brake service on the Mercedes-Benz Sprinter 2500 platform.
Quality Assurance
This caliper is tested to meet OE standards for safety and performance. HELLA Brake Calipers program coverage is built around European aftermarket applications and nameplate-specific requirements.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Mercedes-Benz | Sprinter 2500 | Base | — | — | Rear Right | — |
| 2017 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear Right | — |
| 2016 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear Right | — |
| 2015 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear Right | — |
| 2014 | Mercedes-Benz | Sprinter 2500 | Base | 3.0L | V6 | Rear Right | — |
| 2013 | Mercedes-Benz | Sprinter 2500 | Base | — | — | Rear Right | — |
| 2012 | Mercedes-Benz | Sprinter 2500 | Base | — | — | Rear Right | — |
| 2011 | Mercedes-Benz | Sprinter 2500 | Base | — | — | Rear Right | — |
| 2010 | Mercedes-Benz | Sprinter 2500 | Base | — | — | Rear Right | — |
