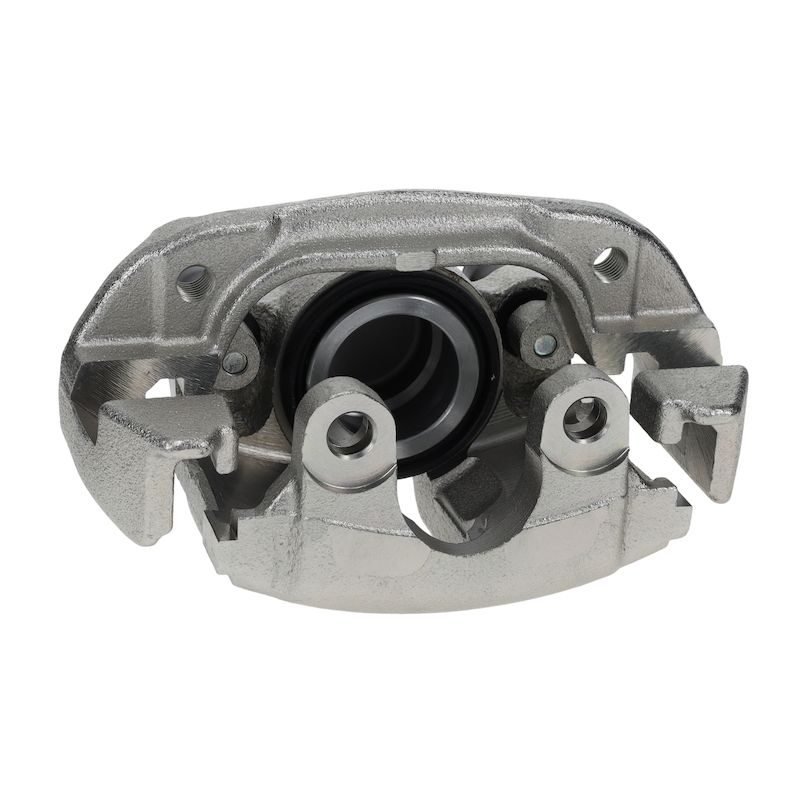

Pagid 355788952 Disc Brake Caliper - Front Left
| Brand | Pagid 355788952 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | BMW · 66 vehicles |
Standard replacement. Direct-fit disc brake caliper for brake hydraulic service.
Cast iron body. Powder-coated gray finish with a steel piston for durable construction.
Service-ready design. Includes bleeder screw, slides, anti-rattle spring, and mounting bracket.
Cross-references 34111160351, 34111165029 and 34116758113 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Product Overview
This Pagid disc brake caliper is a standard replacement unit built for BMW applications that require a front left floating caliper. Part number 355788952 is engineered with a cast iron body, a steel piston, and a powder-coated gray finish for a direct service replacement in the brake hydraulic system.
Fits 2003-2008 BMW Z4, front left. Fits 2001-2006 BMW 325Ci, front left. Fits 2001-2005 BMW 325i, front left. Fits 1992-1995 BMW 325i, front left. Fits 2001-2005 BMW 325xi, front left. Fits 1997-2002 BMW Z3, front left. Fits 2000 BMW 323Ci, front left. Fits 1998-2000 BMW 323i, front left. Fits 2000 BMW 328Ci, front left. Fits 1996-2000 BMW 328i, front left. Fits 1999 BMW 318ti, front left. Fits 1998-1999 BMW 323is, front left. Fits 1996-1999 BMW 328is, front left. Fits 1992-1998 BMW 318i, front left. Fits 1992-1997 BMW 318is, front left. Fits 1992-1995 BMW 325is, front left.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Floating caliper design with one 54 mm piston
- Cast iron caliper body with steel piston construction
- Powder-coated gray finish for added surface protection
- Includes mounting hardware, bleeder screw, anti-rattle spring, caliper slides, and mounting bracket
Detailed Description
Pagid 355788952 is a front left disc brake caliper for BMW models across the Z4, Z3, 3 Series coupe, sedan, and compact applications listed in the fitment data. The floating design, 54 mm piston diameter, and included mounting bracket support a straightforward brake service replacement where the original caliper has worn, seized, or lost hydraulic integrity. This part cross-references Monroe Shocks & Struts (e.g., 34111160351, 34111165029) for the same application.
HELLA brake calipers are built to meet the requirements of different vehicle types, brake systems, engine outputs, and braking loads. The program covers leading European aftermarket applications and European nameplates in the US, with testing performed to OE standards. Part number 355788952 is a practical match for BMW 325i and BMW Z4 brake repairs when the original caliper needs replacement.
What It Is Used For
- Restoring hydraulic pressure when a caliper is sticking or leaking
- Replacing a worn or corroded brake caliper body
- Addressing uneven braking caused by piston or slide wear
- Correcting brake drag from a seized floating caliper assembly
- Returning proper brake pedal response after caliper failure
Installation Notes and Tips
Verify the front left position and confirm the inlet thread size, bleeder screw thread size, and piston diameter before installation. Inspect brake hoses, pads, and rotors during service, and bleed the brake system after caliper replacement to remove air from the hydraulic circuit. Confirm fitment against the vehicle application list for BMW 325i, BMW Z3, and related models before ordering.
Quality Assurance
HELLA brake calipers are tested to OE standards for safety and performance. Pagid 355788952 is a standard replacement caliper built to meet the demands of the listed BMW applications.
| Year | Make | Model | Submodel | Body Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2008 | BMW | Z4 | Roadster 3.0i | — | — | — | Front Left | — |
| 2007 | BMW | Z4 | Roadster 3.0i | — | — | — | Front Left | — |
| 2006 | BMW | 325Ci | Base | — | 2.5L | L6 | Front Left | — |
| 2006 | BMW | Z4 | Roadster 3.0i | — | — | — | Front Left | — |
| 2005 | BMW | 325Ci | Base | — | 2.5L | L6 | Front Left | — |
| 2005 | BMW | 325i | Base | — | 2.5L | L6 | Front Left | — |
| 2005 | BMW | 325xi | Base | — | — | — | Front Left | — |
| 2005 | BMW | Z4 | 3.0i | — | — | — | Front Left | — |
| 2004 | BMW | 325Ci | Base | — | 2.5L | L6 | Front Left | — |
| 2004 | BMW | 325i | Base | — | 2.5L | L6 | Front Left | — |
| 2004 | BMW | 325xi | Base | — | — | — | Front Left | — |
| 2004 | BMW | Z4 | 3.0i | — | — | — | Front Left | — |
| 2003 | BMW | 325Ci | Base | — | 2.5L | L6 | Front Left | — |
| 2003 | BMW | 325i | Base | — | 2.5L | L6 | Front Left | — |
| 2003 | BMW | 325xi | Base | — | — | — | Front Left | — |
| 2003 | BMW | Z4 | 3.0i | — | — | — | Front Left | — |
| 2002 | BMW | 325Ci | Base | — | — | — | Front Left | — |
| 2002 | BMW | 325i | Base | — | — | — | Front Left | — |
| 2002 | BMW | 325xi | Base | — | — | — | Front Left | — |
| 2002 | BMW | Z3 | Coupe | — | — | — | Front Left | — |
| 2001 | BMW | 325Ci | Base | — | — | — | Front Left | — |
| 2001 | BMW | 325i | Base | — | — | — | Front Left | — |
| 2001 | BMW | 325xi | Base | — | — | — | Front Left | — |
| 2001 | BMW | Z3 | Coupe | — | — | — | Front Left | — |
| 2000 | BMW | 323Ci | Base | Coupe | — | — | Front Left | — |
| 2000 | BMW | 323i | Base | — | — | — | Front Left | — |
| 2000 | BMW | 328Ci | Base | — | — | — | Front Left | — |
| 2000 | BMW | 328i | Base | — | — | — | Front Left | — |
| 2000 | BMW | Z3 | Coupe | — | — | — | Front Left | — |
| 1999 | BMW | 318ti | Base | — | — | — | Front Left | — |
| 1999 | BMW | 323i | Base | — | — | — | Front Left | — |
| 1999 | BMW | 323is | Base | — | — | — | Front Left | — |
| 1999 | BMW | 328i | Base | — | — | — | Front Left | — |
| 1999 | BMW | 328is | Base | — | — | — | Front Left | — |
| 1999 | BMW | Z3 | Coupe | — | — | — | Front Left | — |
| 1998 | BMW | 318i | Base | — | — | — | Front Left | — |
| 1998 | BMW | 323i | Base | — | — | — | Front Left | — |
| 1998 | BMW | 323is | Base | — | — | — | Front Left | — |
| 1998 | BMW | 328i | Base | — | — | — | Front Left | — |
| 1998 | BMW | 328is | Base | — | — | — | Front Left | — |
| 1998 | BMW | Z3 | Roadster | — | 2.8L | L6 | Front Left | — |
| 1997 | BMW | 318i | Base | — | — | — | Front Left | — |
| 1997 | BMW | 318is | Base | — | — | — | Front Left | — |
| 1997 | BMW | 328i | Base | — | — | — | Front Left | — |
| 1997 | BMW | 328is | Base | — | — | — | Front Left | — |
| 1997 | BMW | Z3 | Roadster | — | 2.8L | L6 | Front Left | — |
| 1996 | BMW | 318i | Base | — | — | — | Front Left | — |
| 1996 | BMW | 318is | Base | — | — | — | Front Left | — |
| 1996 | BMW | 328i | Base | — | — | — | Front Left | — |
| 1996 | BMW | 328is | Base | — | — | — | Front Left | — |
| 1995 | BMW | 318i | Base | — | — | — | Front Left | — |
| 1995 | BMW | 318is | Base | — | — | — | Front Left | — |
| 1995 | BMW | 325i | Base | — | 2.5L | L6 | Front Left | — |
| 1995 | BMW | 325is | Base | — | — | — | Front Left | — |
| 1994 | BMW | 318i | Base | — | — | — | Front Left | — |
| 1994 | BMW | 318is | Base | — | — | — | Front Left | — |
| 1994 | BMW | 325i | Base | — | — | — | Front Left | — |
| 1994 | BMW | 325is | Base | — | — | — | Front Left | — |
| 1993 | BMW | 318i | Base | — | — | — | Front Left | — |
| 1993 | BMW | 318is | Base | — | — | — | Front Left | — |
| 1993 | BMW | 325i | Base | — | 2.5L | L6 | Front Left | — |
| 1993 | BMW | 325is | Base | — | — | — | Front Left | — |
| 1992 | BMW | 318i | Base | Sedan | — | — | Front Left | — |
| 1992 | BMW | 318is | Base | — | — | — | Front Left | — |
| 1992 | BMW | 325i | Base | — | 2.5L | L6 | Front Left | — |
| 1992 | BMW | 325is | Base | — | — | — | Front Left | — |
