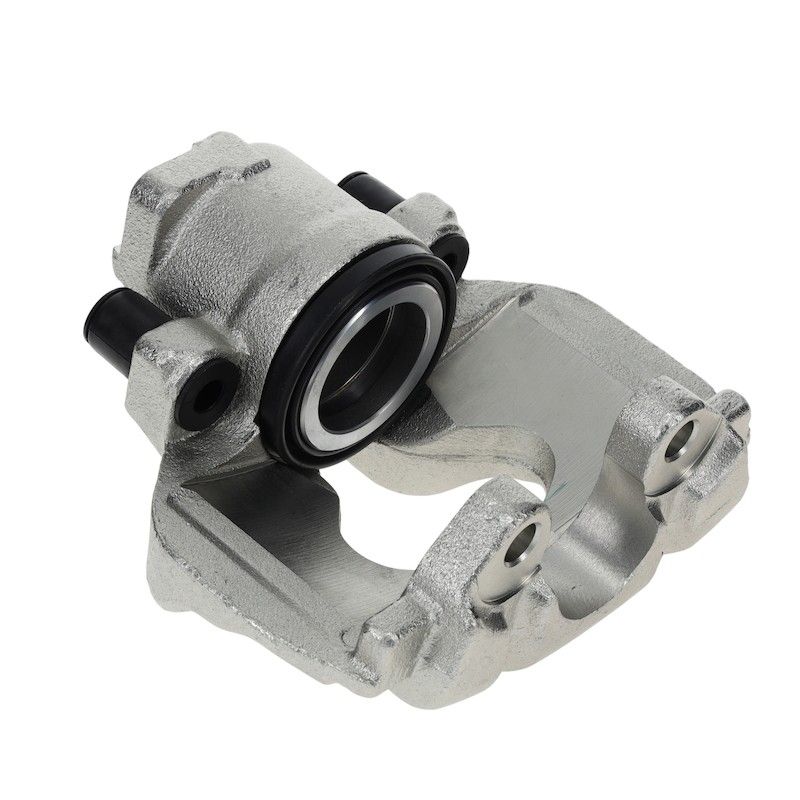

Pagid 355791412 Disc Brake Caliper - Front Left
| Brand | Pagid 355791412 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 57.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Volkswagen · 3 vehicles |
OE-standard replacement. Built to meet OE testing requirements for braking performance and safety.
Service-ready design. Cast iron body, steel piston, and powder-coated finish for durable repair work.
Installation components included. Includes bleeder screw, caliper slides, anti-rattle spring, and mounting hardware.
Cross-references 7D0615123 for the same application. See all 1.
Overview
Pagid 355791412 is a standard replacement disc brake caliper built for European vehicle brake systems that require a floating caliper design. It uses a cast iron body, a steel piston, and a powder-coated gray finish for a service-ready replacement on the front left side.
Compatible with Volkswagen EuroVan applications, this caliper is listed for 1997 and 1999-2000 models with the specified brake configurations. Part number 355791412 is also cross-referenced to 7D0615123 for the same application.
Key Features
- Floating caliper design with one piston for controlled brake application.
- Cast iron caliper body with a powder-coated finish.
- Steel piston and bleeder screw included.
- Mounting hardware, caliper slides, and anti-rattle spring included.
- Standard replacement grade for OE-style service work.
Product Details
Pagid 355791412 is engineered to meet OE standards for braking performance and safety. The caliper is built with a 57.00 mm piston, M10 x 1.0 bleeder screw thread, and 9 mm inlet thread dimensions, making it a direct service part for the specified Volkswagen EuroVan front left fitments. The design supports consistent hydraulic response and stable pad movement in everyday braking conditions.
Common Issues It Can Address
- Sticking or seized caliper movement.
- Uneven brake pad wear from worn internal components.
- Brake fluid leakage at the caliper or bleeder area.
- Reduced braking response caused by caliper wear.
- Corrosion-related caliper service issues.
Installation Notes
Fits 1997 Volkswagen EuroVan, front left, vented brake rotors. Fits 1999-2000 Volkswagen EuroVan, front left, 15" wheels. Verify rotor and hydraulic connection details before installation, and confirm the caliper orientation matches the vehicle side and brake setup.
Quality Assurance
HELLA brake calipers are tested to meet OE standards and are engineered for a wide range of braking demands across European applications. Pagid 355791412 reflects that OE-focused approach for service replacement.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2000 | Volkswagen | EuroVan | MV | — | — | Front Left | 15" Wheels |
| 1999 | Volkswagen | EuroVan | MV | — | — | Front Left | 15" Wheels |
| 1997 | Volkswagen | EuroVan | Camper | 2.8L | V6 | Front Left | Vented Brake Rotors |
