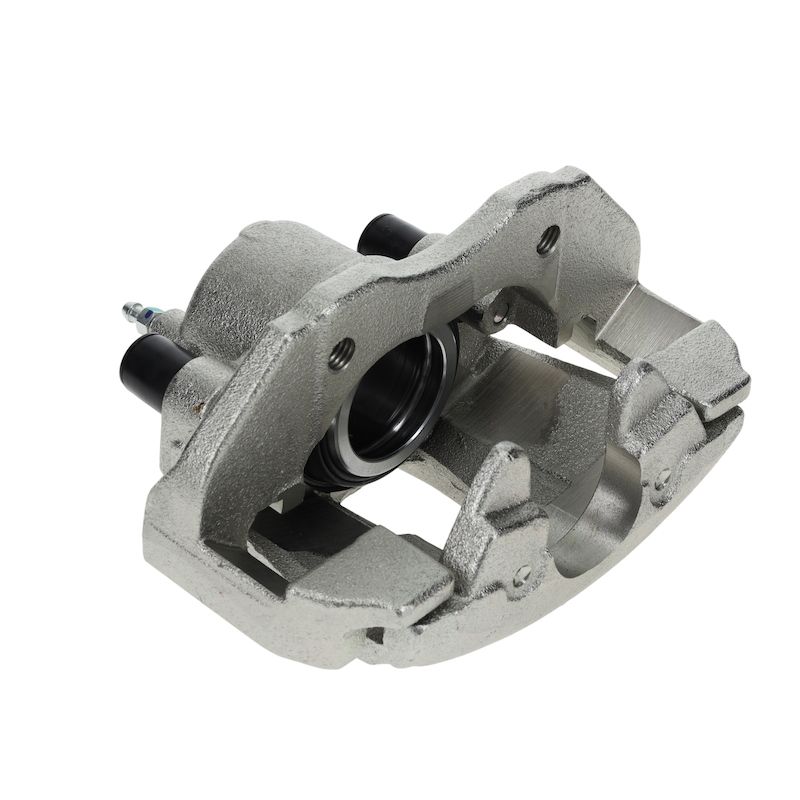

Pagid 355791492 Disc Brake Caliper - Front Left

Overview

This Pagid disc brake caliper, part number 355791492, is a standard replacement unit built for specific European and Mazda applications. It uses a floating caliper design with a single 57.00 mm piston, cast iron construction, and a powder-coated gray finish for a direct service replacement.

Compatible With Mazda 3 and Mazda 5 front left applications, as well as selected Volvo C30, C70, S40, and V50 front left brake systems. Part number 355791492 is also referenced by multiple OE and aftermarket numbers for the same application.

Key Features

• Standard replacement disc brake caliper for brake hydraulic service
• Floating caliper design with one 57.00 mm piston
• Cast iron body with powder-coated gray finish
• Bleeder screw, anti-rattle spring, caliper slides, and mounting bracket included
• Steel piston and OE-standard testing for application-specific performance

Detailed Description

Pagid 355791492 is engineered to meet the requirements of the brake system it serves, including vehicle load, braking characteristics, and system output. The floating design and 57.00 mm piston support consistent pad movement and hydraulic response, while the cast iron housing and powder-coated finish provide a service-ready replacement format. This caliper is a strong match for Mazda 3 and Mazda 5 front left brake service, and it also covers selected Volvo C30, C70, S40, and V50 front left applications with the specified rotor notes where listed.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Solve

• Sticking or seized caliper movement
• Uneven brake pad contact and wear
• Brake fluid leakage at the caliper assembly
• Reduced braking response from worn hydraulic components
• Noisy brake operation related to caliper hardware wear

Installation Notes

Verify rotor size and chassis/VIN notes before ordering, especially on Volvo C30, C70, S40, and V50 applications with 300 mm brake rotors or VIN breakpoints. This caliper includes a mounting bracket, bleeder screw, anti-rattle spring, and caliper slides; mounting bolts are not included. Confirm inlet and bleeder thread specifications during installation to match the brake line and service procedure.

Quality Assurance

Pagid brake calipers are tested to OE standards for fit, safety, and braking performance. Part number 355791492 is built for European nameplate applications and is supported by the brand’s application-focused brake program.
