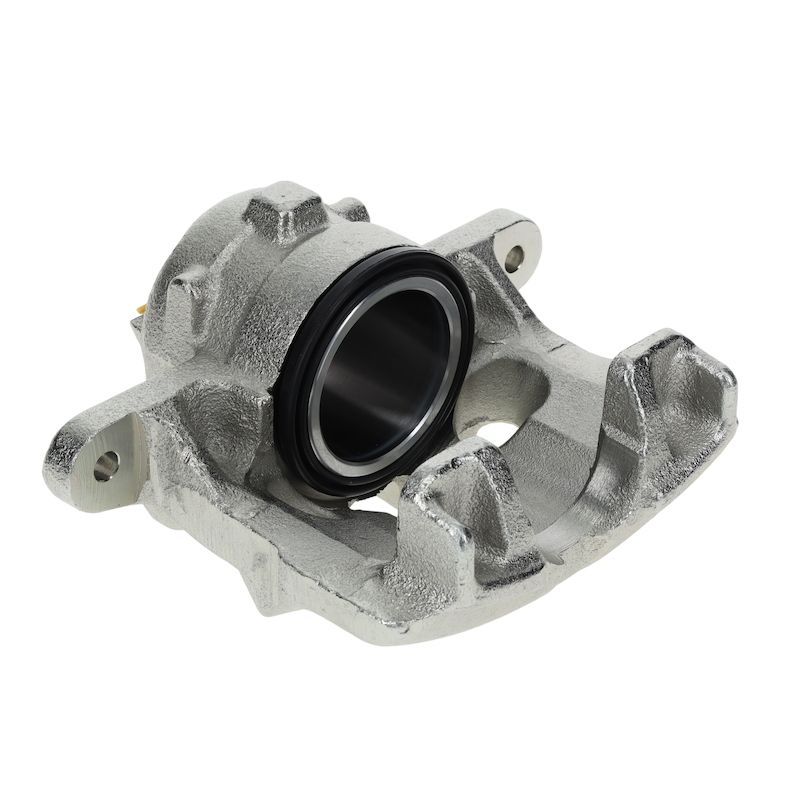

Pagid 355793122 Disc Brake Caliper - Front Right

Reliable Disc Brake Caliper for Volkswagen Vanagon

The Pagid 355793122 disc brake caliper is designed specifically for Volkswagen Vanagon models, providing dependable braking performance. Engineered as a standard replacement, this floating caliper ensures consistent stopping power and durability.

• Caliper type: Floating with one piston
• Caliper casting material: Cast iron for strength and heat resistance
• Piston diameter: 60.00 mm, made of steel for durability
• Powder-coated gray finish for corrosion protection
• Includes bleeder screw (M7 x 1 thread size) for easy brake fluid maintenance
• Caliper slides included for smooth operation
• Compatible with Volkswagen Vanagon brake hydraulics systems

Technical Details and Construction

This Pagid disc brake caliper (part number 355793122) features a cast iron body that withstands the rigors of daily driving and high-temperature braking conditions. The single steel piston with a 60 mm diameter provides reliable clamping force on the brake pads. The floating caliper design allows for self-alignment during braking, reducing uneven pad wear. A powder-coated gray finish protects the caliper from corrosion and environmental damage. The included bleeder screw (M7 x 1 thread) facilitates proper brake fluid bleeding, ensuring optimal hydraulic performance. Caliper slides are included to maintain smooth movement and consistent brake pad contact.

Compatible Vehicles and Applications

This disc brake caliper is compatible with Volkswagen Vanagon models requiring a standard replacement caliper in the brake hydraulics system. It is designed to address common braking issues such as:

• Uneven or premature brake pad wear
• Brake fluid leaks from the caliper
• Reduced braking efficiency due to caliper piston sticking
• Corrosion or damage to the original caliper body
• Brake noise caused by caliper misalignment

Installation Notes and Tips

When installing the Pagid 355793122 disc brake caliper on a Volkswagen Vanagon, ensure the brake system is properly bled using the included bleeder screw to remove air from the hydraulic lines. Since mounting hardware and pad wear sensors are not included, reuse existing components or source them separately as needed. Verify piston movement and caliper slide operation before final assembly to ensure smooth braking performance.

Quality Assurance and Warranty

Pagid manufactures this disc brake caliper to meet standard replacement specifications, using durable materials such as cast iron and steel. The powder-coated finish enhances corrosion resistance for extended service life. While specific warranty details are not provided, Pagid products typically adhere to industry quality standards for brake components.
