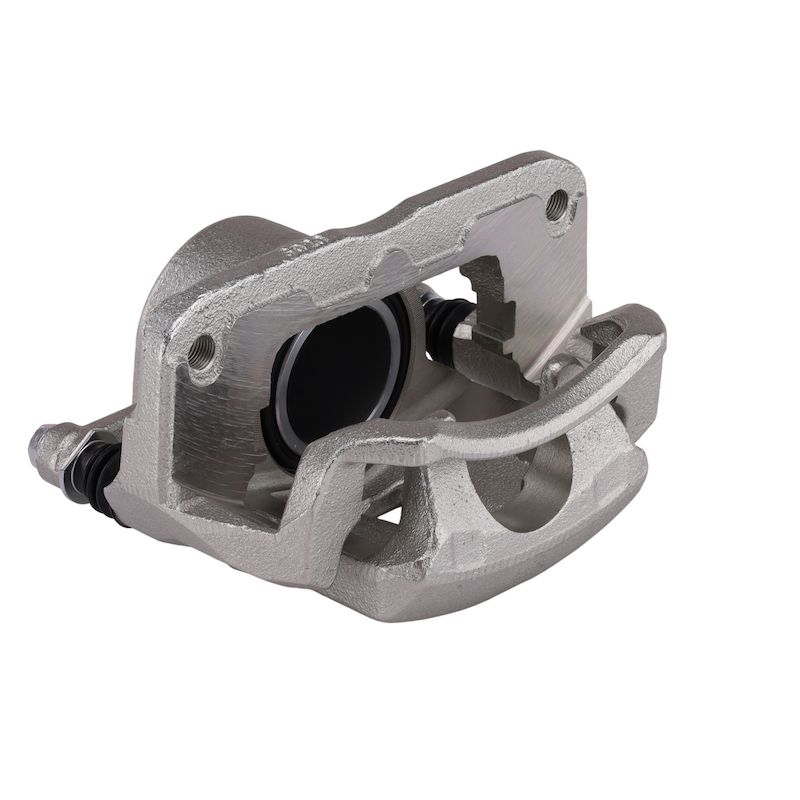

Pagid 355793562 Disc Brake Caliper - Front Right
| Brand | Pagid 355793562 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | Yes |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 60.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Lexus and Toyota · 22 vehicles |
OE-standard replacement. Built for service-focused brake restoration with OE-level testing.
Floating caliper design. Single-piston construction helps match original braking behavior.
Complete service components. Includes pad wear sensor, slides, bracket, clips, and bleeder screw.
Cross-references 4773006040 and 4773033120 for the same application. See all 2.
Overview
This Pagid disc brake caliper is a standard replacement for select Toyota and Lexus applications with front-right fitment. It is built with a floating caliper design, a cast iron body, and a powder-coated gray finish for service-focused brake system replacement.
Key Features
- Standard replacement disc brake caliper from Pagid
- Floating caliper design with one 60 mm piston
- Cast iron caliper body with steel piston
- Powder-coated gray finish for added surface protection
- Includes pad wear sensor, mounting bracket, slides, abutment clips, bleeder screw, and mounting hardware
Detailed Description
Part number 355793562 is engineered for brake service on compatible Toyota Avalon, Toyota Solara, Lexus ES300, and Toyota Camry applications. The caliper uses a floating design with a single 60 mm piston to match the braking requirements of the listed vehicles, while the cast iron housing and steel piston provide a durable service replacement construction. This part number 355793562 also includes a pad wear sensor and a bleeder screw with M7 x 1 thread size, along with a 9 mm inlet thread specification.
Pagid brake components are developed to meet OE-level standards and are tested for fit and performance across European nameplates and other covered applications. This makes the 355793562 a practical choice for restoring brake system function on Toyota Camry, Lexus ES300, and related front-right applications without changing the original brake layout.
What It Helps Address
- Sticking or seized caliper movement
- Uneven brake pad wear
- Brake fluid leakage at the caliper
- Reduced braking response from worn internal components
- Brake warning concerns related to pad wear sensing
Installation Notes
Fits 1998-2004 Toyota Avalon, front right. Fits 1999-2003 Toyota Solara, front right. Fits 1997-2001 Lexus ES300, front right. Fits 1997-2001 Toyota Camry, front right, USA built. Verify inlet and bleeder thread specifications before installation, and confirm pad wear sensor and bracket compatibility with the existing brake setup.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. Part number 355793562 cross-references 4773006040 and 4773033120 for the same application.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2004 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 2003 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 2003 | Toyota | Solara | SLE | — | — | Front Right | — |
| 2002 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 2002 | Toyota | Solara | SLE | — | — | Front Right | — |
| 2001 | Lexus | ES300 | Base | — | — | Front Right | — |
| 2001 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 2001 | Toyota | Camry | XLE | 3.0L | V6 | Front Right | USA Built |
| 2001 | Toyota | Solara | SLE | — | — | Front Right | — |
| 2000 | Lexus | ES300 | Base | — | — | Front Right | — |
| 2000 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 2000 | Toyota | Camry | XLE | 3.0L | V6 | Front Right | USA Built |
| 2000 | Toyota | Solara | SLE | — | — | Front Right | — |
| 1999 | Lexus | ES300 | Base | — | — | Front Right | — |
| 1999 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 1999 | Toyota | Camry | XLE | 3.0L | V6 | Front Right | USA Built |
| 1999 | Toyota | Solara | SLE | — | — | Front Right | — |
| 1998 | Lexus | ES300 | Base | — | — | Front Right | — |
| 1998 | Toyota | Avalon | XLS | — | — | Front Right | — |
| 1998 | Toyota | Camry | XLE | 3.0L | V6 | Front Right | USA Built |
| 1997 | Lexus | ES300 | Base | — | — | Front Right | — |
| 1997 | Toyota | Camry | XLE | 3.0L | V6 | Front Right | USA Built |
