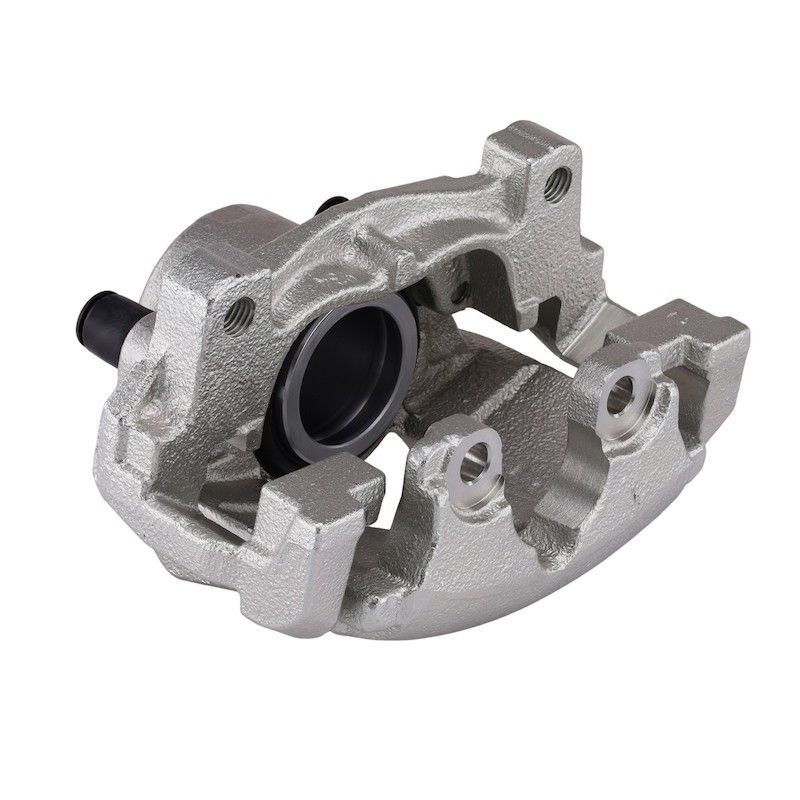

Pagid 355794342 Disc Brake Caliper - Front Right

Brake Caliper Overview

This Pagid disc brake caliper is a standard replacement unit built for OE-level braking performance and consistent pedal response. It is a front right application for Volvo and Land Rover vehicles with the specified fitment, including models that use 300mm brake rotors.

Part number 355794342 is engineered as a floating caliper with a 60.00 mm piston, cast iron housing, steel piston material, and powder-coated gray finish. The design includes a mounting bracket, caliper slides, anti-rattle spring, bleeder screw, and mounting hardware, making it a complete service replacement for the brake hydraulic assembly.

Key Features

• Standard replacement disc brake caliper for brake hydraulic service
• Floating caliper design with one 60.00 mm piston
• Cast iron caliper body with powder-coated gray finish
• Includes mounting bracket, caliper slides, anti-rattle spring, and bleeder screw
• Built to OE standards for braking consistency and safety
• Part number 355794342 for accurate ordering and fitment lookup

Detailed Description

Pagid 355794342 is a front right disc brake caliper for compatible Volvo S60, V60, S80, XC70, and V70 applications, as well as Land Rover LR2 and Range Rover Evoque fitments listed below. The floating caliper layout helps maintain even pad contact, while the cast iron construction and steel piston support stable braking under everyday driving loads. This part cross-references OE numbers such as 6G912B294AA and LR000568 for the same application.

HELLA brake calipers are developed to meet the requirements of different vehicle platforms and braking systems, with testing performed to OE standards. For Volvo S60 and Volvo XC70 brake service, this caliper provides a direct replacement option for the specified front right position and rotor size where noted.

Common Problems This Part Can Address

• Uneven braking caused by a sticking or worn caliper
• Brake fluid leakage at the caliper assembly
• Poor pad movement from worn slides or hardware
• Reduced braking response from piston or seal wear
• Noise from missing or fatigued anti-rattle components

Installation Notes and Tips

Verify rotor size and chassis notes before installation, especially on 2010 Land Rover LR2 and 2011 Volvo S80 applications. Confirm the bleeder screw thread size and inlet thread specifications during brake line connection, and bleed the hydraulic system after installation. Inspect pads, rotors, and hoses for wear before returning the vehicle to service.

Quality Assurance

This caliper is manufactured to OE standards and tested for braking performance and safety. Pagid part number 355794342 is supported by HELLA brake caliper engineering for European vehicle applications in the independent aftermarket.
