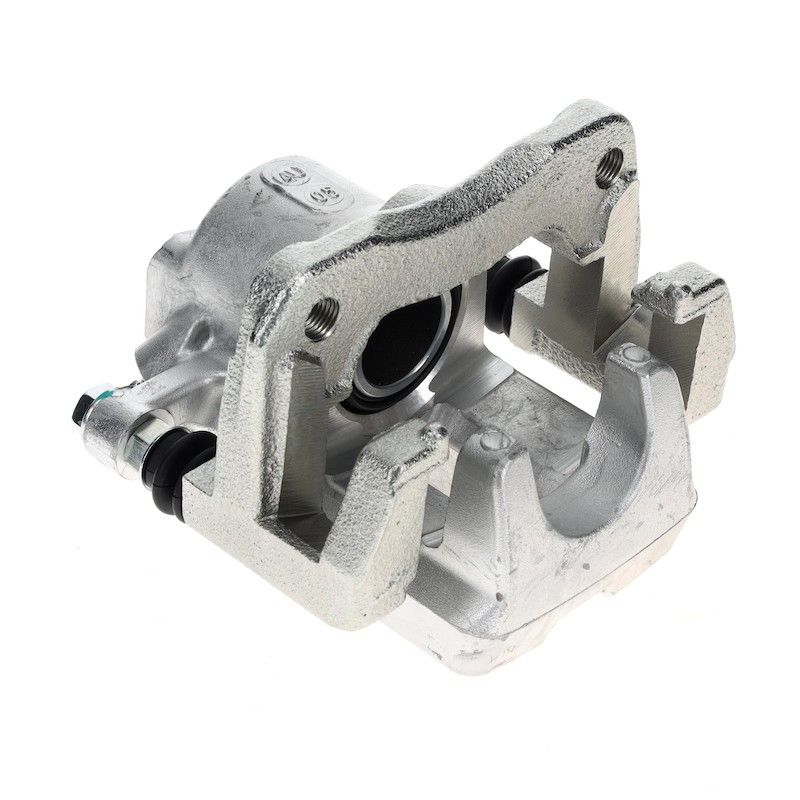

Pagid 355796302 Disc Brake Caliper - Rear Right
| Brand | Pagid 355796302 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Aluminum |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 38.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Toyota · 13 vehicles |
Standard replacement. Built for direct brake hydraulic service with OE-style fit and function.
Aluminum housing. Lightweight caliper casting with a powder-coated gray finish.
Complete caliper assembly. Includes bracket, slides, bleeder screw, and mounting hardware.
Cross-references 47830-42060, 47830-42061 and 47830-42080 for the same application. See all 4.
Brake Caliper for Toyota RAV4
This Pagid disc brake caliper is a standard replacement built for the rear right brake position on select Toyota RAV4 applications. It combines an aluminum caliper body, a floating design, and OE-standard testing for consistent braking performance.
- Standard replacement disc brake caliper for brake hydraulic service
- Aluminum caliper casting with powder-coated gray finish
- Floating caliper design with one 38.00 mm piston
- Mounting bracket, slides, bleeder screw, and mounting hardware included
- Steel piston construction with M7 x 1 bleeder screw thread
Fitment Details
Fits 2006-2008 Toyota RAV4, rear right. Fits 2009-2015 Toyota RAV4, rear right, Japan built. Fits 2016 Toyota RAV4, rear right. Fits 2017-2018 Toyota RAV4, rear right, Japan built.
This part cross-references Toyota part numbers 47830-42060 and 47830-42061 for the same application.
What It Helps Address
- Uneven rear braking caused by a worn caliper assembly
- Brake fluid leakage at the caliper body or bleeder screw area
- Sticking or restricted caliper movement from worn slides
- Brake drag or reduced release from piston or seal wear
Installation Notes
Verify rear right fitment by model year and Japan-built application before ordering. Confirm inlet thread size, bleeder screw thread size, and brake line connection during installation. Bleeder screw, slides, and mounting bracket are listed in the product attributes.
Quality Assurance
Pagid brake calipers are tested to meet OE standards and are engineered for the braking demands of European and import applications. Part number 355796302 is built as a standard replacement for service work where OE-level fit and function are required.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2018 | Toyota | RAV4 | XLE | — | — | Rear Right | Japan Built |
| 2017 | Toyota | RAV4 | XLE | — | — | Rear Right | Japan Built |
| 2016 | Toyota | RAV4 | Hybrid XLE | — | — | Rear Right | — |
| 2015 | Toyota | RAV4 | XLE | 2.5L | L4 | Rear Right | Japan Built |
| 2014 | Toyota | RAV4 | XLE | 2.5L | L4 | Rear Right | Japan Built |
| 2013 | Toyota | RAV4 | XLE | 2.5L | L4 | Rear Right | Japan Built |
| 2012 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | Japan Built |
| 2011 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | Japan Built |
| 2010 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | Japan Built |
| 2009 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | Japan Built |
| 2008 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | — |
| 2007 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | — |
| 2006 | Toyota | RAV4 | Sport | 3.5L | V6 | Rear Right | — |
