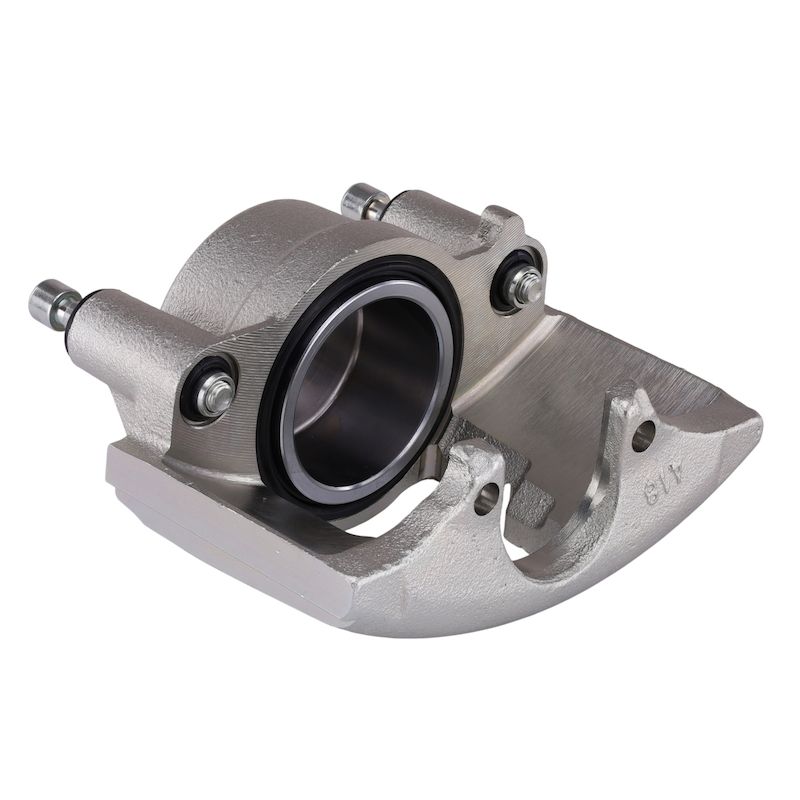

Pagid 355797472 Disc Brake Caliper - Rear Left
| Brand | Pagid 355797472 |
|---|---|
| Position | Rear Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 86.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 8.5 |
| Bleeder Screw Thread Pitch [mm] | 1.5 |
| Bleeder Screw Thread Size | M10x1.5-6h |
| Inlet Thread Diameter [mm] | 8.5 |
| Inlet Thread Pitch [mm] | 1.5 |
| Fits | Audi · 7 vehicles |
OE-standard testing. Built to meet OE requirements for safety and braking performance.
Floating caliper design. One-piston construction supports controlled brake response.
Service-ready hardware. Includes bleeder screw, slides, and mounting bolt for replacement work.
Cross-references 8K0 615 403 and 8K0 615 403A for the same application. See all 2.
Overview
This Pagid disc brake caliper is a standard replacement for select Audi applications with rear left fitment. It is built as a floating caliper with a cast iron body, powder-coated finish, and a steel piston for consistent brake system service.
Key Features
- Standard replacement disc brake caliper from Pagid
- Floating caliper design with one piston
- Cast iron caliper body with gray powder-coated finish
- Bleeder screw, caliper slides, and mounting bolt included
- Mounting hardware included for service-ready installation
- Fits applications with parking brake actuator
Detailed Description
Built for brake service on select Audi S4 and Audi S5 models, this caliper is engineered to meet OE-level requirements for braking performance and system compatibility. The 86.00 mm piston, steel piston material, and floating design support controlled brake response, while the included bleeder screw and slides simplify replacement work. Part number 355797472 is also referenced under 8K0 615 403 and 8K0 615 403A for the same application.
Pagid brake components are developed for European vehicle coverage and tested to meet OE standards. This caliper is a direct service part for rear left applications on the Audi S4 and Audi S5, including models with a parking brake actuator. The powder-coated gray finish adds corrosion resistance for everyday brake system use.
What It Helps Solve
- Brake drag caused by a sticking caliper
- Uneven rear braking performance
- Fluid leakage at the caliper assembly
- Worn piston or slide-related brake issues
- Service replacement for a damaged caliper housing
Installation Notes
Fits 2010-2012 Audi S4, rear left. Fits 2010-2012 Audi S5, rear left. Fits 2008 Audi S5, rear left. Verify bleeder thread size, inlet thread size, and parking brake actuator configuration before installation. Brake system bleeding is required after caliper replacement.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. This part number 355797472 is built for European vehicle applications and is cross-referenced to 8K0 615 403 and 8K0 615 403A for the same application.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2012 | Audi | S4 | Base | 3.0L | V6 | Rear Left | Incl.Parking Brake Actuator |
| 2012 | Audi | S5 | Base | 4.2L | V8 | Rear Left | Incl.Parking Brake Actuator |
| 2011 | Audi | S4 | Base | 3.0L | V6 | Rear Left | Incl.Parking Brake Actuator |
| 2011 | Audi | S5 | Base | — | — | Rear Left | Incl.Parking Brake Actuator |
| 2010 | Audi | S4 | Base | 3.0L | V6 | Rear Left | Incl.Parking Brake Actuator |
| 2010 | Audi | S5 | Base | — | — | Rear Left | Incl.Parking Brake Actuator |
| 2008 | Audi | S5 | Base | — | — | Rear Left | Incl.Parking Brake Actuator |
