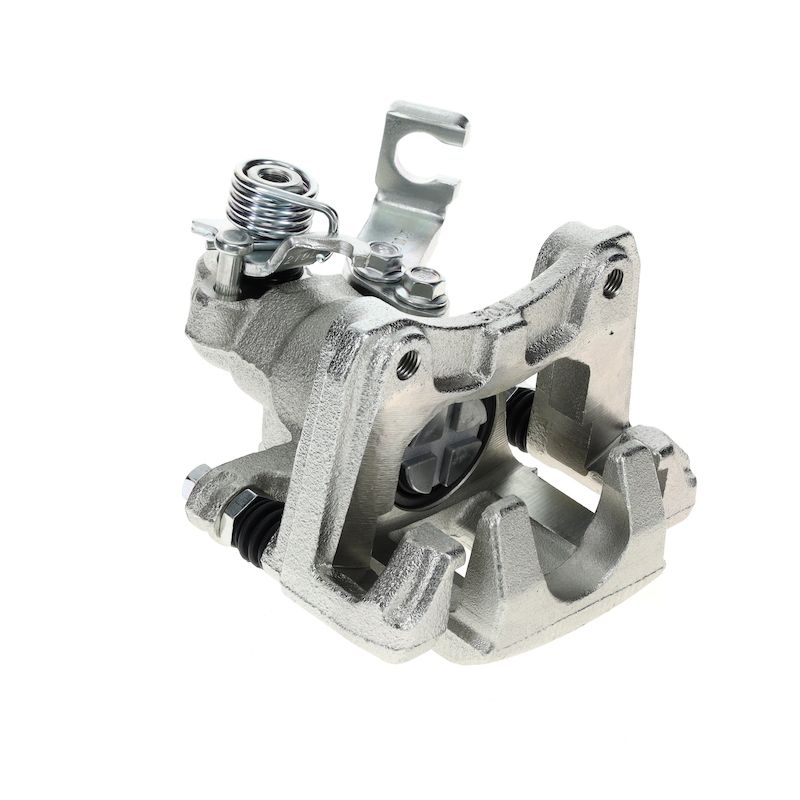

Pagid 355799722 Disc Brake Caliper - Rear Left
| Brand | Pagid 355799722 |
|---|---|
| Position | Rear Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Fixed |
| Piston Diameter | 34.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.25 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 8.8 |
| Bleeder Screw Thread Pitch [mm] | 1.25 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Suzuki · 7 vehicles |
OE-standard tested. Built to meet OE requirements for consistent braking performance.
Fixed caliper design. Single-piston construction with a 34.00 mm piston diameter.
Service-ready replacement. Includes the bracket, slides, bleeder screw, and mounting hardware.
Cross-references 55402-80J00-999, 5540280J00 and 5540280J01999 for the same application. See all 5.
Brake Caliper Overview
This Pagid disc brake caliper is a standard replacement for the rear left brake system on compatible Suzuki SX4 applications. Part number 355799722 is built with a fixed caliper design and OE-focused testing for consistent braking performance.
Key Features
- Fits 2007-2013 Suzuki SX4, rear left.
- Fixed caliper design with one 34.00 mm piston.
- Cast iron caliper body with powder-coated gray finish.
- Mounting bracket, slides, bleeder screw, and mounting hardware included.
- Steel piston and standard replacement grade.
Detailed Description
Pagid part number 355799722 is engineered as a disc brake caliper for the rear left position on the Suzuki SX4 from 2007 through 2013. The fixed design uses a single 34.00 mm piston and a cast iron housing with a powder-coated finish for a service-ready replacement. This caliper includes the mounting bracket, caliper slides, bleeder screw, and mounting hardware, and it is built to meet OE standards after extensive testing. This part cross-references Suzuki and OE numbers such as 55402-80J00-999 and 71750930 for the same application.
Common Issues It May Solve
- Brake fluid leakage from a worn caliper body or bleeder area.
- Uneven braking caused by sticking or seized caliper components.
- Poor pedal response from internal piston wear or corrosion.
- Brake drag related to damaged slides or mounting points.
- Reduced braking consistency from an aging rear caliper assembly.
Installation Notes and Tips
Verify fitment by year, make, model, and rear left position before installation. Confirm inlet and bleeder thread sizes match the vehicle brake line and bleeding setup. After installation, bleed the brake system thoroughly and inspect for leaks, proper pad movement, and even rotor contact.
Quality Assurance
Pagid brake calipers are tested to OE standards to support safe, consistent braking performance across a range of vehicle requirements. Part number 355799722 is built for the European aftermarket and European nameplate applications referenced by the manufacturer.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2013 | Suzuki | SX4 | Sportback | Rear Left | — |
| 2012 | Suzuki | SX4 | Sportback | Rear Left | — |
| 2011 | Suzuki | SX4 | Sportback | Rear Left | — |
| 2010 | Suzuki | SX4 | Sportback | Rear Left | — |
| 2009 | Suzuki | SX4 | Sport | Rear Left | — |
| 2008 | Suzuki | SX4 | Sport | Rear Left | — |
| 2007 | Suzuki | SX4 | Sport | Rear Left | — |
