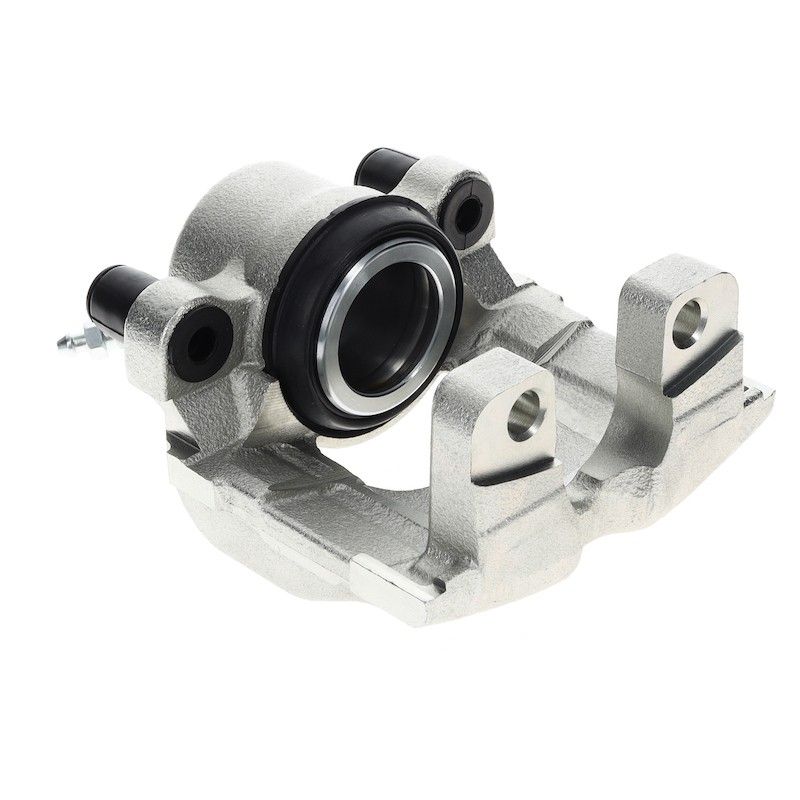

Pagid 355799872 Disc Brake Caliper - Front Right
| Brand | Pagid 355799872 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | BMW · 6 vehicles |
OE-standard testing. Extensive validation supports consistent safety and braking performance.
Floating caliper design. One-piston construction helps maintain smooth hydraulic operation.
Service-ready hardware. Bleeder screw, slides, and anti-rattle spring are included.
Cross-references 34 11 6 772 018 and 34 11 6 776 528 for the same application. See all 2.
BMW 128i Front Right Caliper
This Pagid disc brake caliper is a standard replacement for the front right position on compatible BMW 128i applications. It is built with a floating design, cast iron housing, and a 54 mm piston to match the braking demands of the vehicle.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Floating caliper design with one steel piston
- Cast iron body with powder-coated gray finish
- Bleeder screw, anti-rattle spring, and caliper slides included
- Mounting hardware included; mounting bracket not included
- Pad wear sensor not included
Product Details
Fits 2008-2013 BMW 128i, front right. This caliper is engineered for OE-level fit and braking performance, with specifications that align to the original hydraulic and mounting requirements. The 54 mm piston, M10 x 1.0 bleeder screw thread, and 9 mm inlet thread support proper fluid connection and serviceability. Part number 355799872 is also referenced by BMW OE numbers 34 11 6 772 018 and 34 11 6 776 528 for the same application.
Common Issues It Can Address
- Uneven braking response at the front right wheel
- Sticking or seized caliper movement
- Brake fluid leakage at the caliper body or bleeder area
- Corrosion or wear on the original caliper housing
- Noisy brake operation caused by worn caliper hardware
Installation Notes
Verify the front right fitment before installation and confirm thread sizes, piston size, and hose connection details against the removed part. Transfer only the components required by the application, and bleed the brake system after installation to restore proper hydraulic operation. Part number 355799872 should be matched carefully to the vehicle and brake configuration.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. HELLA brake calipers are engineered for a wide range of European applications and are validated through extensive testing before release.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | BMW | 128i | Base | 3.0L | L6 | Front Right | — |
| 2012 | BMW | 128i | Base | 3.0L | L6 | Front Right | — |
| 2011 | BMW | 128i | Base | 3.0L | L6 | Front Right | — |
| 2010 | BMW | 128i | Base | 3.0L | L6 | Front Right | — |
| 2009 | BMW | 128i | Base | 3.0L | L6 | Front Right | — |
| 2008 | BMW | 128i | Base | 3.0L | L6 | Front Right | — |
