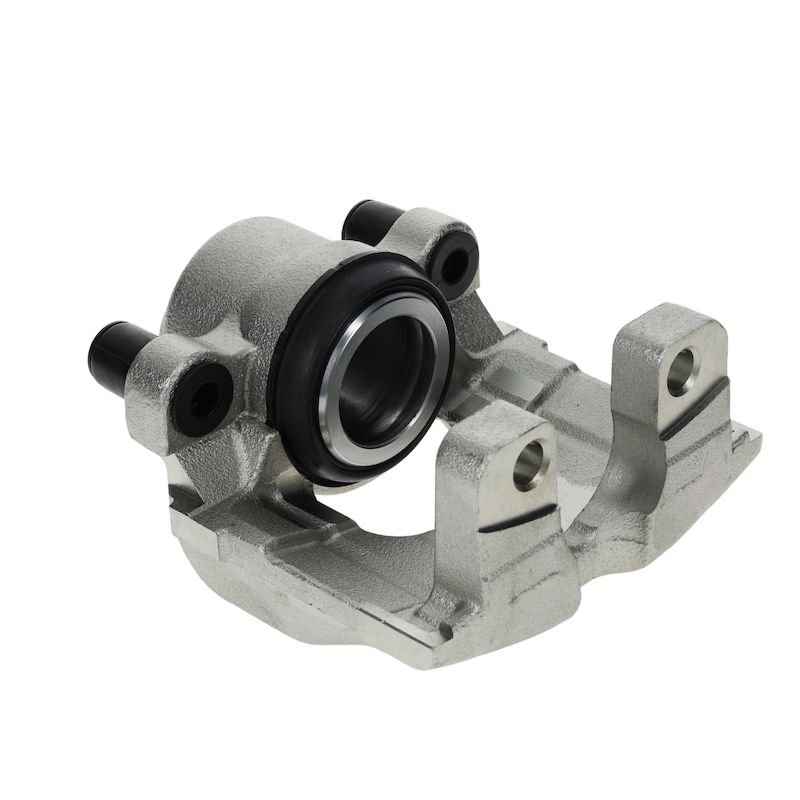

Pagid 355799882 Disc Brake Caliper - Front Left
| Brand | Pagid 355799882 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | BMW · 6 vehicles |
OE-standard testing. Built to meet original equipment requirements for brake system performance.
Floating caliper design. Supports even pad movement and consistent hydraulic operation.
Cast iron body. Powder-coated gray finish adds surface protection during service.
Cross-references 34 11 6 772 017 and 34 11 6 776 527 for the same application. See all 2.
Overview
This Pagid disc brake caliper is a standard replacement for select BMW brake applications. It is built as a floating caliper with a cast iron body, steel piston, and powder-coated gray finish for a direct service replacement that matches OE-style requirements.
Fits 2008-2013 BMW 128i, front left. Part number 355799882 is supported by fitment data for six vehicle applications and is cross-referenced to BMW 34 11 6 772 017 and 34 11 6 776 527 for the same application.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Floating caliper design with one 54.00 mm piston
- Cast iron caliper body with steel piston construction
- Powder-coated gray finish for added surface protection
- Bleeder screw, anti-rattle spring, and caliper slides included
- Mounting hardware included for installation
Detailed Description
Pagid 355799882 is engineered for BMW 128i brake service where a direct-fit caliper is needed to restore hydraulic function and braking consistency. The floating design, 54.00 mm piston, and OE-standard testing support predictable pedal response and even pad movement. This caliper uses a 9 mm inlet thread and M10 x 1.0 bleeder screw thread, and it is finished in gray powder coat for corrosion resistance. Part number 355799882 also cross-references BMW 34 11 6 772 017 and 34 11 6 776 527.
What It Helps Fix
- Sticking or seized caliper movement
- Brake fluid leakage at the caliper body or bleeder area
- Uneven pad contact and braking pull
- Reduced braking response from worn internal components
- Corrosion-related caliper wear
Installation Notes
Verify caliper orientation, inlet thread size, and bleeder screw thread before installation. Inspect brake hoses, pads, and rotor condition during service to avoid repeat brake issues. Bleed the hydraulic system after installation and confirm proper piston movement and pad seating.
Quality Assurance
HELLA brake calipers are tested to meet OE standards and are engineered for European aftermarket applications and European nameplates in the US. Pagid 355799882 is built to match the requirements of the original brake system for consistent service performance.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2013 | BMW | 128i | Base | 3.0L | L6 | Front Left | — |
| 2012 | BMW | 128i | Base | 3.0L | L6 | Front Left | — |
| 2011 | BMW | 128i | Base | 3.0L | L6 | Front Left | — |
| 2010 | BMW | 128i | Base | 3.0L | L6 | Front Left | — |
| 2009 | BMW | 128i | Base | 3.0L | L6 | Front Left | — |
| 2008 | BMW | 128i | Base | 3.0L | L6 | Front Left | — |
