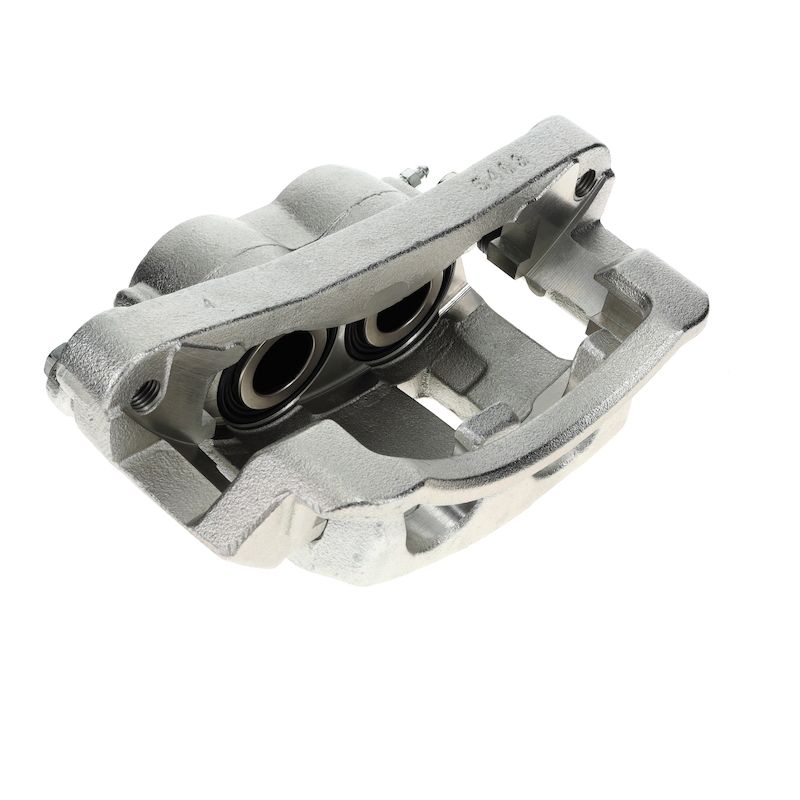

Pagid 355800292 Disc Brake Caliper - Front Left

Overview

This Pagid disc brake caliper is a standard replacement for select Ford Super Duty applications and the Ford Excursion. It is built as a floating caliper with a cast iron body, gray powder-coated finish, and two 54 mm steel pistons for consistent brake actuation.

Compatible with Ford F-250 Super Duty, Ford F-350 Super Duty, and Ford Excursion front left applications, this part number 355800292 is engineered to meet OE-level requirements for fit and braking performance. Part number 355800292 also cross-references Ford service numbers 1C3Z 2B121-AA and F81Z 2B121-HA for the same application.

Key Features

• Standard replacement disc brake caliper for direct service use
• Floating caliper design with two 54 mm pistons
• Cast iron caliper body with powder-coated gray finish
• Mounting bracket, slides, abutment clips, bleeder screw, and mounting hardware included
• Bleeder screw uses M10 x 1.0 thread specification

Product Details

Pagid 355800292 is built for front left brake service on the Ford Excursion and Ford Super Duty platform applications listed in the fitment data. The caliper uses a floating design to apply even pad pressure, while the cast iron construction and powder-coated finish support durability in demanding brake environments. With a 54 mm piston diameter and steel piston material, this caliper is configured for OE-style replacement where precise hydraulic response and consistent braking feel matter.

This part number 355800292 is part of Pagid's brake hydraulics program, which is backed by HELLA engineering and testing standards for European aftermarket and nameplate coverage in the US. That product line focus makes it a practical choice for buyers looking for a standard replacement caliper with OE-standard validation.

Common Issues This Part Can Address

• Sticking or uneven caliper movement
• Brake drag caused by worn internal components
• Reduced braking response from caliper wear
• Corrosion or finish breakdown on the caliper body
• Hydraulic leakage at the caliper assembly

Installation Notes

Verify fitment by year, make, model, and front left position before installation. This caliper includes the mounting bracket, slides, abutment clips, bleeder screw, and mounting hardware listed in the product data. Confirm inlet and bleeder thread specifications match the vehicle brake system before bleeding and final assembly.

Quality Assurance

Pagid brake calipers are tested to meet OE standards for safety and performance. Part number 355800292 is engineered for standard replacement service in applications that require OE-level fit and braking characteristics.
