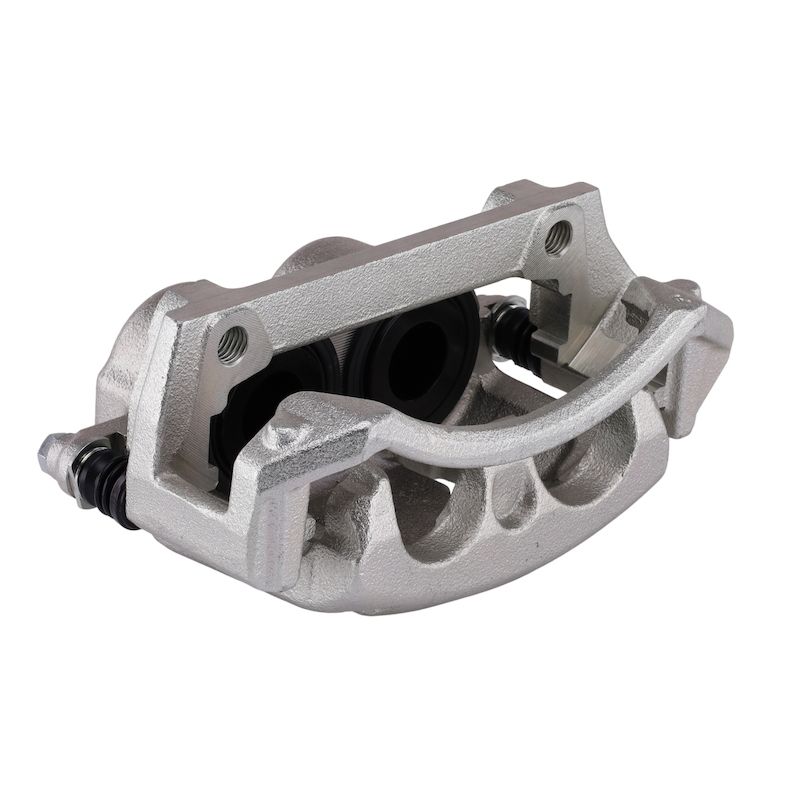

Pagid 355800372 Disc Brake Caliper - Front Left
| Brand | Pagid 355800372 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 48.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9.5 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Threads Per Inch | 24 |
| Inlet Thread Diameter [mm] | 9.5 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ford · 6 vehicles |
OE-standard replacement. Built for consistent braking performance and service fit.
Floating caliper design. Two-piston layout supports controlled pad engagement.
Service components included. Mounting bracket, slides, bleeder screw, and clips are listed.
Cross-references F65Z 2B121-EA and F75Z 2B121-BA for the same application. See all 2.
Brake Caliper Overview
The Pagid 355800372 is a standard replacement disc brake caliper built for OE-style braking performance and consistent hydraulic response. It fits select Ford truck applications, including the Ford F-150 and Ford Bronco, with application-specific hardware details already defined in the product data.
Key Features
- Floating caliper design with two pistons for controlled pad engagement.
- Cast iron caliper body with a powder-coated gray finish.
- Includes mounting hardware, mounting bracket, bleeder screw, anti-rattle spring, caliper slides, and abutment clips.
- Steel pistons with a 48.00 mm piston diameter.
- Standard replacement grade for direct service use.
Detailed Description
Pagid 355800372 is engineered as a disc brake caliper for vehicles that require a floating caliper layout and OE-standard braking characteristics. The cast iron construction, steel pistons, and powder-coated finish support dependable service in demanding brake systems. This caliper is a strong match for Ford F-150 front left brake caliper replacement needs from 1997-2001 and Ford Bronco front left brake caliper applications for 1996. The part number 355800372 is also referenced in interchange listings with F65Z 2B121-EA and F75Z 2B121-BA.
Common Repair Uses
- Restores braking response when the original caliper is sticking or seized.
- Addresses uneven pad wear caused by caliper piston or slide issues.
- Replaces a leaking caliper with damaged seals or bleeder components.
- Helps correct pulling or reduced braking performance on the affected side.
Installation Notes
Verify brake hose thread specifications, piston size, and mounting points before installation. Bleed the brake system after replacement and inspect pads, rotors, and related hydraulic components for wear or contamination. This caliper includes the mounting bracket and related service components listed in the product data, which can simplify the repair process.
Quality Assurance
HELLA brake calipers are tested to meet OE standards and are engineered for the requirements of different vehicle types, brake systems, and load conditions. Pagid 355800372 follows that OE-focused approach for consistent fit and braking performance.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2001 | Ford | F-150 | XL | 5.4L | V8 | BI-FUEL | Front Left | — |
| 2000 | Ford | F-150 | XL | 5.4L | V8 | BI-FUEL | Front Left | — |
| 1999 | Ford | F-150 | XL | 5.4L | V8 | BI-FUEL | Front Left | — |
| 1998 | Ford | F-150 | XLT | 5.4L | V8 | BI-FUEL | Front Left | — |
| 1997 | Ford | F-150 | XLT | 5.4L | V8 | — | Front Left | — |
| 1996 | Ford | Bronco | XLT | 5.8L | V8 | — | Front Left | — |
