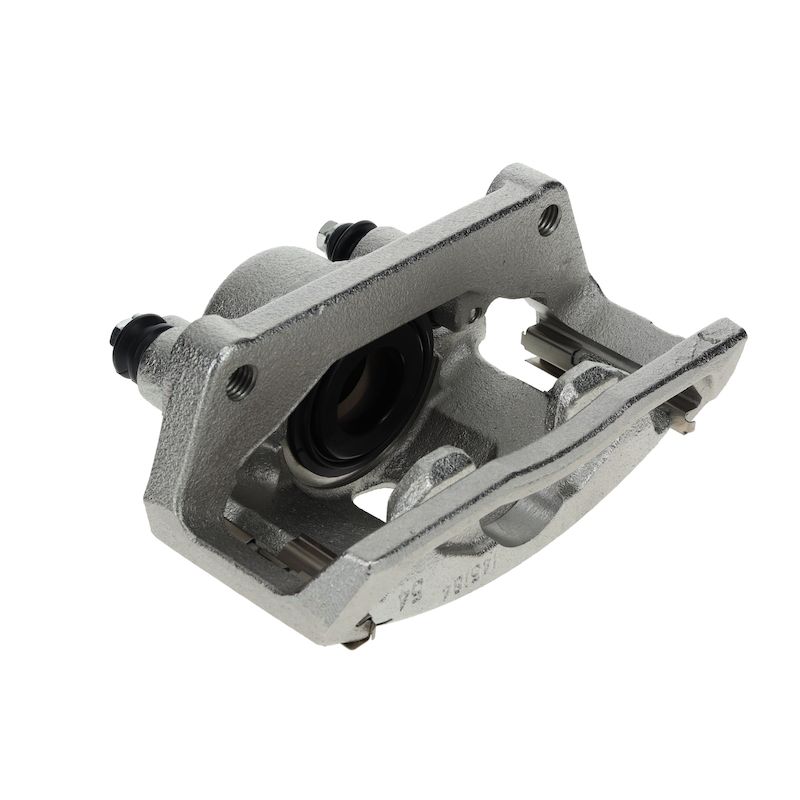

Pagid 355800522 Disc Brake Caliper - Rear Right
| Brand | Pagid 355800522 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ram · 5 vehicles |
OE-standard replacement. Built for service-level brake restoration with tested fit and performance.
Floating caliper design. Single-piston construction helps maintain consistent brake pad contact.
Cast iron housing. Powder-coated finish adds surface protection for brake system service.
Cross-references 5179880AD for the same application. See all 1.
Overview
This Pagid disc brake caliper is a standard replacement for select Ram truck applications. It is built with a floating design, cast iron housing, and a powder-coated gray finish for a direct-service brake hydraulic component.
Compatible with Ram 1500 and Ram 1500 Classic rear right applications, this caliper includes the mounting bracket, slides, bleeder screw, and mounting hardware listed in the product data. Part number 355800522 is engineered to meet OE standards for fit and braking performance.
Key Features
- Standard replacement disc brake caliper with floating design
- Cast iron caliper body with steel piston
- Powder-coated gray finish for added surface protection
- Includes mounting bracket, slides, bleeder screw, and mounting hardware
- Single-piston design with 54.00 mm piston diameter
- Bleeder screw and inlet threads specified for proper hydraulic connection
Product Details
Pagid part number 355800522 is a rear right brake caliper for Ram 1500 and Ram 1500 Classic models listed in the fitment data. The floating caliper design is paired with a cast iron housing and steel piston to match the demands of everyday braking service. HELLA brake calipers are tested to OE standards and built for the requirements of European and US nameplate applications.
This part cross-references 5179880AD for the same application.
Common Uses
- Restoring braking force when the caliper is sticking or seized
- Replacing a leaking or corroded brake caliper housing
- Addressing uneven rear brake wear or pull during braking
- Correcting hydraulic issues related to worn bleeder or inlet threads
Installation Notes
Verify rear right fitment before installation on 2017-2021 Ram truck applications. Confirm piston diameter, thread sizes, and bracket style against the removed part to ensure proper match. Bleeding the brake system after installation is required for normal brake operation.
Quality Assurance
This Pagid caliper is manufactured to OE standards and undergoes extensive testing for safety and performance. Part number 355800522 is a standard replacement brake component for service work on compatible Ram applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2021 | Ram | 1500 Classic | Special Service | Rear Right | — |
| 2020 | Ram | 1500 Classic | Special Service | Rear Right | — |
| 2019 | Ram | 1500 Classic | Special Service | Rear Right | — |
| 2018 | Ram | 1500 | Special Service | Rear Right | — |
| 2017 | Ram | 1500 | Special Service | Rear Right | — |
