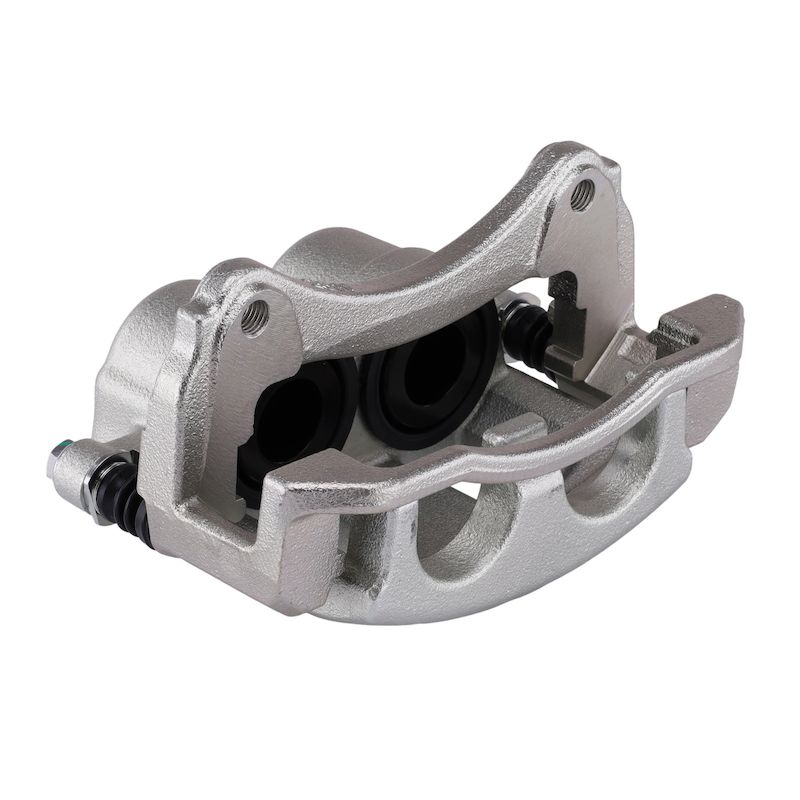

Pagid 355800662 Disc Brake Caliper - Front Left or Front Right

Brake Caliper Overview

The Pagid 355800662 disc brake caliper is a standard replacement hydraulic caliper built for OE-level fit and braking consistency. It is engineered for European and US nameplate applications and is backed by extensive testing to meet OE standards.

Key Features

• Floating caliper design with two pistons for controlled brake force.
• Cast iron caliper body with a powder-coated gray finish.
• Includes mounting hardware, mounting bracket, caliper slides, abutment clips, bleeder screw, and mounting bolt.
• Steel pistons with a 46.00 mm piston diameter.
• Pad wear sensor not included.

Detailed Description

This Pagid brake caliper, part number 355800662, is built as a standard replacement for vehicles that require a floating disc brake caliper with a 46.00 mm piston. The cast iron housing, steel pistons, and powder-coated finish support consistent hydraulic operation and corrosion resistance in everyday service. It is a direct-fit service part for select Ford Ranger, Ford Explorer, and Mercury Mountaineer applications, including Fits 2002-2005 Ford Explorer, front right; Fits 2003-2005 Ford Ranger, front right; Fits 2002-2005 Mercury Mountaineer, front right; and Fits 2006 Ford Ranger, front left.

HELLA brake calipers are developed to address different vehicle weights, brake system demands, and braking characteristics. This product line is tested to OE standards and is positioned for applications in the European independent aftermarket and European nameplates in the US. The 355800662 is also cross-referenced to Monroe Shocks & Struts part numbers 1L2Z 2B120-AB and 1L5Z 2B120-CA for the same application.

Common Uses

• Restoring hydraulic clamping force when the caliper is sticking or uneven.
• Replacing a worn caliper body, piston, or slide assembly.
• Addressing brake drag, pull, or inconsistent pedal response.
• Correcting leaks at the bleeder or inlet connection.
• Servicing a damaged or corroded caliper on compatible Ford and Mercury models.

Installation Notes and Tips

Verify the caliper position, inlet thread size, and bleeder thread specifications before installation. Confirm pad wear sensor requirements separately, since this caliper does not include one. Use the included bracket, slides, clips, and hardware as specified by the service procedure, and bleed the brake system after installation.

Quality Assurance

Pagid brake calipers are tested to meet OE standards for safety and performance. Part number 355800662 is built to standard replacement specifications for dependable service in the listed applications.
