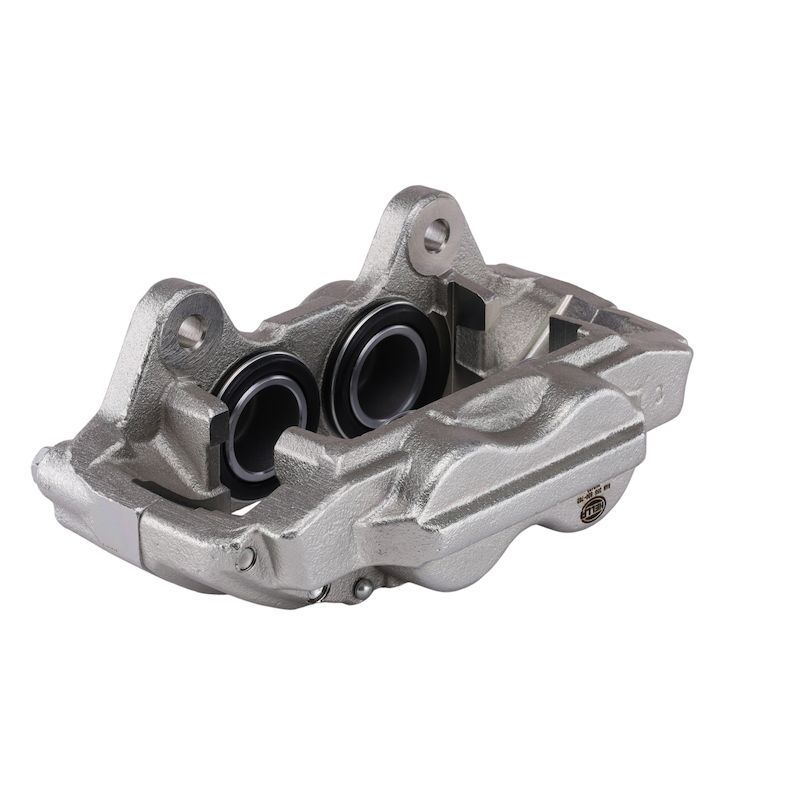

Pagid 355800702 Disc Brake Caliper - Front Right
| Brand | Pagid 355800702 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | No |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | No |
| Piston Quantity | 4 |
| Caliper Type | Fixed |
| Piston Diameter | 45.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | No |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Toyota · 15 vehicles |
Standard replacement. Built for direct brake system service with OE-standard testing.
Fixed four-piston design. Delivers consistent pad clamping for stable braking performance.
Cast iron housing. Powder-coated finish and steel pistons support durable service use.
Cross-references 47730-0C020, 47730-0C021 and 47730-0C022 for the same application. See all 4.
Disc Brake Caliper Overview
The Pagid 355800702 is a standard replacement disc brake caliper built for Toyota truck and SUV applications that require a fixed, four-piston design. It uses a cast iron body with a powder-coated gray finish and includes a bleeder screw and anti-rattle spring for a complete brake service solution.
Fits 2003-2007 Toyota Sequoia, front right; 2006 Toyota 4Runner, front right; 2004-2006 Toyota Tundra, front right; 2003-2005 Toyota 4Runner, front right; and 2001-2003 Toyota Tundra, front right. Part number 355800702 is also referenced by OE-style Toyota numbers 47730-0C020 and 47730-35160 for the same application.
Key Features
- Fixed caliper design with four pistons for consistent brake pad clamping.
- Cast iron caliper casting with a powder-coated finish for durable service use.
- Includes a bleeder screw and anti-rattle spring.
- Standard replacement grade for direct brake system service.
- Steel pistons with a 45.00 mm piston diameter.
Detailed Description
Pagid 355800702 is engineered as a disc brake caliper for Toyota Sequoia, Toyota 4Runner, and Toyota Tundra front right applications. The fixed caliper layout, four-piston construction, and OE-standard testing support stable braking performance under the demands of truck and SUV use. The cast iron housing and powder-coated gray finish provide a service-ready replacement that matches the requirements of the original brake system.
This part number, 355800702, cross-references Toyota OE numbers 47730-0C020 and 47730-35160 for the same application. It is a practical choice when replacing a worn or sticking caliper on compatible Toyota brake systems.
What It Helps Solve
- Uneven braking caused by a sticking or worn caliper.
- Brake drag from piston or seal wear.
- Reduced pedal response from caliper hydraulic issues.
- Noise from missing or worn anti-rattle components.
- Corrosion-related caliper service problems.
Installation Notes and Tips
Verify fitment by year, model, and position before installation. This caliper uses a 9 mm inlet thread diameter with 1 mm pitch and an M7 x 1 bleeder screw thread size. Mounting hardware is listed as included, while mounting bolts, caliper slides, abutment clips, and a pad wear sensor are not included.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. The 355800702 is built to the requirements of European aftermarket brake applications and nameplate coverage in the US.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2007 | Toyota | Sequoia | SR5 | — | — | Front Right | — |
| 2006 | Toyota | 4Runner | SR5 | 4.7L | V8 | Front Right | To 09/05 |
| 2006 | Toyota | Sequoia | SR5 | — | — | Front Right | — |
| 2006 | Toyota | Tundra | Limited | — | — | Front Right | — |
| 2005 | Toyota | 4Runner | SR5 | 4.7L | V8 | Front Right | 16" Wheels |
| 2005 | Toyota | Sequoia | SR5 | — | — | Front Right | — |
| 2005 | Toyota | Tundra | Limited | — | — | Front Right | — |
| 2004 | Toyota | 4Runner | Sport | 4.0L | V6 | Front Right | 16" Wheels |
| 2004 | Toyota | Sequoia | SR5 | — | — | Front Right | — |
| 2004 | Toyota | Tundra | Limited | — | — | Front Right | — |
| 2003 | Toyota | 4Runner | Sport | 4.7L | V8 | Front Right | 16" Wheels |
| 2003 | Toyota | Sequoia | SR5 | — | — | Front Right | — |
| 2003 | Toyota | Tundra | Limited | — | — | Front Right | 231mm Length Housing Dimension |
| 2002 | Toyota | Tundra | Limited | — | — | Front Right | 231mm Length Housing Dimension |
| 2001 | Toyota | Tundra | Limited | — | — | Front Right | 231mm Length Housing Dimension |
