Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

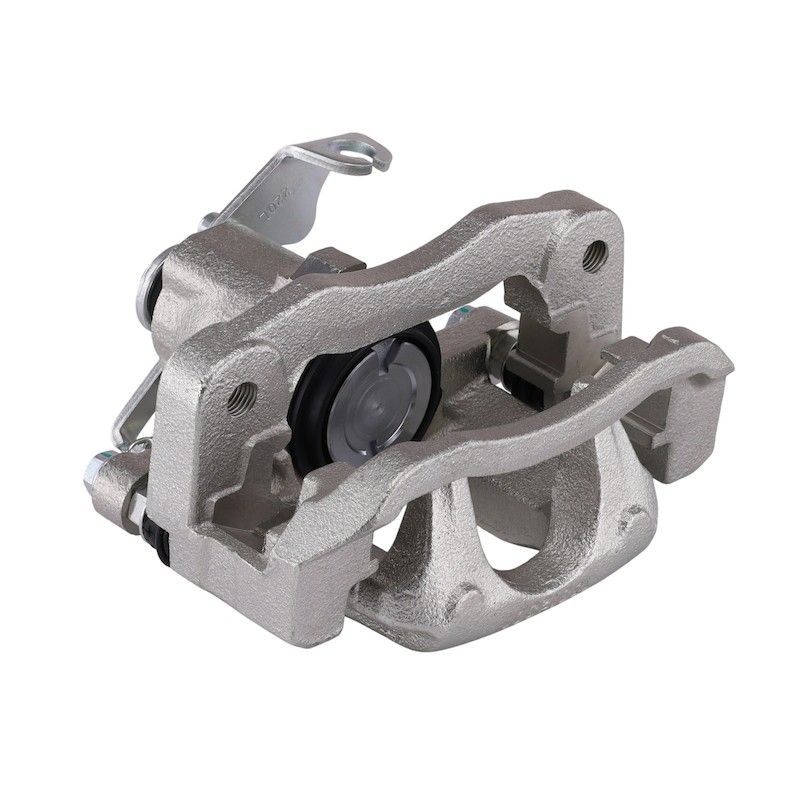

Pagid 355800792 Disc Brake Caliper - Rear Left
| Brand | Pagid 355800792 |
|---|---|
| Position | Rear Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Fixed |
| Piston Diameter | 43.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Chrysler, Dodge, and Ram · 11 vehicles |
Standard replacement. OE-style brake caliper for direct service replacement.
Cast iron body. Powder-coated finish helps resist surface wear.
Complete caliper assembly. Includes bracket, slides, bleeder screw, and mounting hardware.
Cross-references 68029849AA and 68029849AB for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
This Pagid disc brake caliper is a standard replacement brake hydraulics component built for specific rear-left applications. It combines a fixed caliper design, cast iron construction, and OE-standard testing for a direct service replacement on select Chrysler, Dodge, and Ram vehicles.
Part number 355800792 is engineered for precise brake system requirements and is cross-referenced to 68029849AA and 68029849AB for the same application.
Key Features
- Fixed disc brake caliper with one 43.00 mm piston
- Cast iron caliper body with powder-coated gray finish
- Includes mounting hardware, bracket, slides, abutment clips, bleeder screw, and mounting bolt
- Steel piston construction with M10 x 1.0 bleeder and inlet threads
- Standard replacement grade for OE-style service work
Detailed Description
Pagid 355800792 is a rear left disc brake caliper for 2011-2012 Chrysler Town & Country, 2008-2012 Dodge Grand Caravan, and 2012 Ram C/V applications listed in the fitment data. It is built as a fixed caliper with a single piston and is finished in powder coat for added surface protection. The included bracket, slides, and abutment clips support a complete service replacement where the original caliper assembly has worn, seized, or lost braking consistency.
HELLA brake calipers are developed to meet OE standards and are tested for the demands of different vehicle types and braking loads. This part number 355800792 is intended for European aftermarket coverage and European nameplates in the US, making it a practical choice for brake service on Chrysler, Dodge, and Ram platforms that require the specified rear-left configuration.
What It Is Used For
- Replacing a caliper with sticking or uneven piston movement
- Restoring hydraulic braking force at the rear left wheel
- Addressing fluid leakage at the caliper assembly
- Correcting brake drag caused by worn slides or internal wear
- Servicing OE-style brake hardware on listed Chrysler, Dodge, and Ram models
Installation Notes and Tips
Verify the rear-left position, piston size, and thread specifications before installation. This caliper includes a bleeder screw and mounting hardware, and the fitment notes should be checked for heavy-duty brake exclusions and parking brake lever coverage on the listed applications. Proper brake bleeding and system inspection are recommended after installation.
Quality Assurance
Pagid and HELLA brake calipers undergo extensive testing to meet OE standards for safety and performance. Part number 355800792 is built to standard replacement specifications for dependable brake service.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Chrysler | Town & Country | Touring | 3.6L | V6 | GAS | Rear Left | Exc.Heavy Duty Brakes |
| 2012 | Dodge | Grand Caravan | SXT | 3.6L | V6 | GAS | Rear Left | Exc.Heavy Duty Brakes |
| 2012 | Ram | C/V | Base | — | — | — | Rear Left | Exc.Heavy Duty Brakes |
| 2011 | Chrysler | Town & Country | Touring | 3.6L | V6 | GAS | Rear Left | — |
| 2011 | Dodge | Grand Caravan | R/T | 3.6L | V6 | GAS | Rear Left | — |
| 2010 | Chrysler | Town & Country | Walter P. Chrysler Signature Series | — | — | — | Rear Left | Incl.Parking Brake Lever |
| 2010 | Dodge | Grand Caravan | SE | — | — | — | Rear Left | Incl.Parking Brake Lever |
| 2009 | Chrysler | Town & Country | Limited | — | — | — | Rear Left | Incl.Parking Brake Lever |
| 2009 | Dodge | Grand Caravan | SE | — | — | — | Rear Left | Incl.Parking Brake Lever |
| 2008 | Chrysler | Town & Country | Limited | — | — | — | Rear Left | Incl.Parking Brake Lever |
| 2008 | Dodge | Grand Caravan | SXT | 4.0L | V6 | — | Rear Left | Incl.Parking Brake Lever |
| No rows match your filter. | ||||||||
