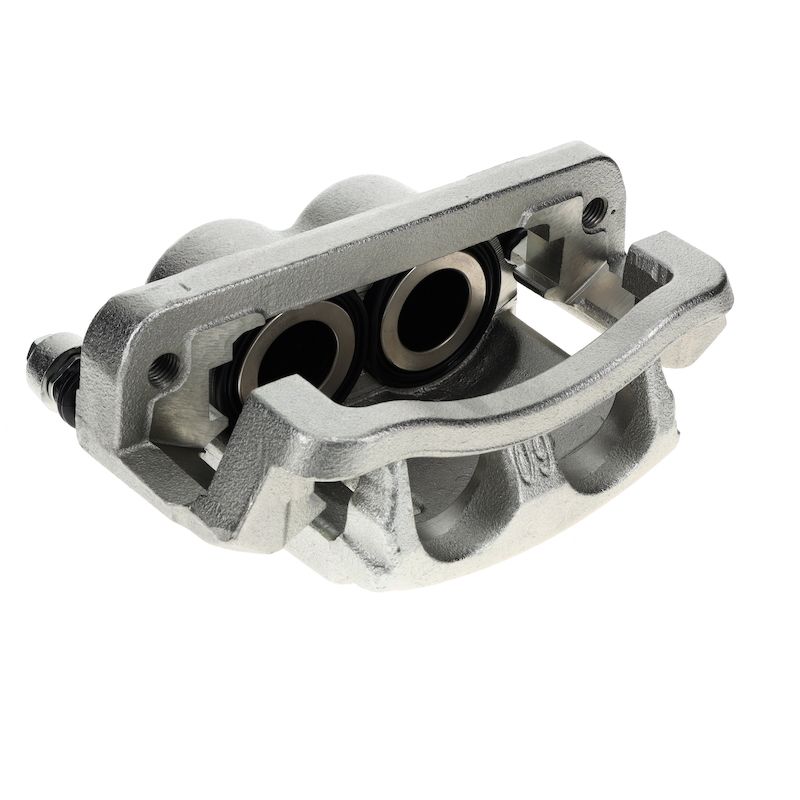

Pagid 355800862 Disc Brake Caliper - Front Right

Overview of Pagid Disc Brake Caliper 355800862

The Pagid disc brake caliper 355800862 is designed for reliable braking performance on Ford F-250 Super Duty and F-350 Super Duty trucks. This floating caliper features a durable cast iron construction and is engineered to meet standard replacement requirements.

• Compatible with Ford F-250 Super Duty and F-350 Super Duty models
• Standard replacement grade type for dependable performance
• Cast iron caliper casting material for strength and durability
• Floating caliper type with two steel pistons, each 60 mm in diameter
• Powder-coated gray finish for corrosion resistance
• Includes mounting bracket, mounting bolts, caliper slides, abutment clips, and bleeder screw
• Bleeder screw specifications: 9.5 mm diameter, 1 mm pitch, 24 threads per inch

Detailed Product Description

This Pagid disc brake caliper (part number 355800862) is engineered to restore braking efficiency on Ford F-250 Super Duty and F-350 Super Duty trucks. The floating caliper design allows for smooth pad movement and even wear. Constructed from cast iron, the caliper offers robust strength to withstand heavy-duty braking demands. The two steel pistons, each measuring 60 mm in diameter, provide consistent clamping force for effective stopping power. The caliper’s powder-coated gray finish enhances corrosion resistance, extending the service life of the component.

Included components such as the mounting bracket, mounting bolts, caliper slides, abutment clips, and bleeder screw simplify installation and ensure proper fitment. The bleeder screw features a 9.5 mm thread diameter with a 1 mm pitch, compatible with standard brake hydraulic systems. This caliper does not include a pad wear sensor or anti-rattle spring.

Applications and Problem Solving

• Replacement for worn or damaged disc brake calipers on Ford F-250 Super Duty and F-350 Super Duty
• Addresses uneven brake pad wear caused by sticking or seized calipers
• Resolves brake fluid leakage issues related to caliper piston seals
• Improves braking response and pedal feel by restoring proper caliper function
• Eliminates brake noise caused by faulty or loose caliper components

Installation Notes and Tips

• Ensure compatibility with Ford F-250 Super Duty and F-350 Super Duty before installation
• Use proper torque specifications for mounting bolts to avoid damage
• Bleed the brake system thoroughly after installation to remove air from hydraulic lines
• Inspect brake pads and rotors for wear and replace if necessary during caliper replacement
• Verify that all included components such as caliper slides and abutment clips are properly installed

Quality Assurance and Warranty

Pagid disc brake calipers are manufactured to meet OEM standards for fit, form, and function. The 355800862 caliper undergoes rigorous quality control to ensure durability and reliable braking performance. While specific warranty details are not provided here, Pagid products typically come with a limited warranty covering defects in materials and workmanship. Consult product documentation or authorized sources for exact warranty terms.
