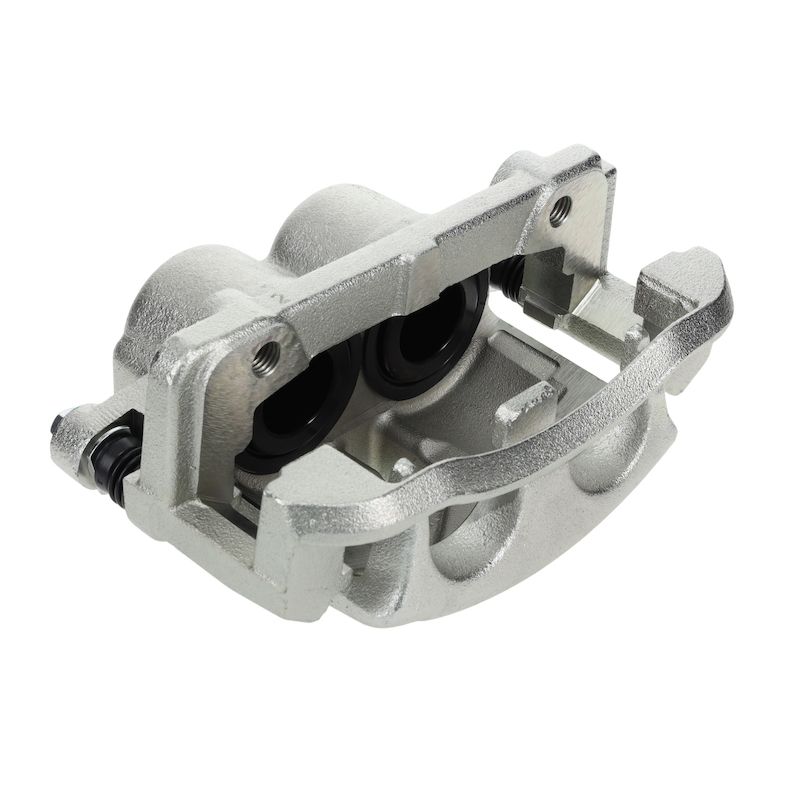

Pagid 355800952 Disc Brake Caliper - Front Left
| Brand | Pagid 355800952 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9.5 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ford and Lincoln · 7 vehicles |
Standard replacement. Built for OE-level brake service with a direct-fit hydraulic design.
Cast iron housing. Powder-coated finish helps protect the caliper body during service.
Complete service hardware. Includes bracket, slides, bleeder screw, and anti-rattle spring.
Cross-references 6L3Z-2B121-AA and 7L3Z 2B121-A for the same application. See all 2.
Overview
This Pagid disc brake caliper is a standard replacement unit built for precise brake system requirements and OE-level testing. It fits select Ford and Lincoln applications, including the Ford F-150 and Lincoln Mark LT, and uses a floating caliper design with a 54.00 mm piston for consistent braking response.
Part number 355800952 is engineered as a direct-fit brake hydraulics component for compatible applications. The cast iron body, powder-coated finish, and included bracket, slides, bleeder screw, and anti-rattle spring support a complete service replacement.
Key Features
- Standard replacement disc brake caliper for brake hydraulics service
- Floating caliper design with two pistons and 54.00 mm piston diameter
- Cast iron caliper body with powder-coated gray finish
- Includes mounting bracket, caliper slides, bleeder screw, and anti-rattle spring
- Mounting bolt and abutment clips included for service installation
- Part number 355800952 for easy identification
Detailed Description
Pagid 355800952 is a front left disc brake caliper designed for select 2006-2009 Ford F-150 and 2006-2008 Lincoln Mark LT applications. It is built as a floating caliper with steel pistons and a cast iron housing, matching the demands of everyday braking while maintaining OE-standard performance targets. The powder-coated gray finish adds corrosion resistance, while the included bleeder screw and inlet thread specifications support proper hydraulic connection during replacement.
This caliper is part of Pagid's brake hydraulics offering, backed by HELLA Brake Calipers engineering and testing. The program is focused on European aftermarket coverage and European nameplates in the US, with products tested to meet OE standards. If you are replacing a worn or sticking caliper on a Ford F-150 or Lincoln Mark LT, part number 355800952 provides the core hardware needed for a proper brake service.
Common Issues This Part Can Address
- Uneven braking caused by a sticking caliper
- Brake drag from worn internal caliper components
- Loss of hydraulic sealing at the caliper inlet or bleeder area
- Noise from worn slides, abutment points, or anti-rattle hardware
- Reduced braking performance from piston or caliper wear
Installation Notes
Verify fitment by year, make, model, and position before installation. This caliper is listed for front left applications only, with a 2006 Lincoln Mark LT fitment note of from 08/08/05. Confirm thread sizes and hydraulic connections during service, and inspect pads, rotors, and brake fluid condition when replacing the caliper.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. Part number 355800952 is built to support the requirements of the listed Ford F-150 and Lincoln Mark LT applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Ford | F-150 | Platinum | — | — | — | Front Left | — |
| 2008 | Ford | F-150 | XLT | 5.4L | V8 | FLEX | Front Left | — |
| 2008 | Lincoln | Mark LT | Base | — | — | — | Front Left | — |
| 2007 | Ford | F-150 | Harley-Davidson Edition | — | — | — | Front Left | — |
| 2007 | Lincoln | Mark LT | Base | — | — | — | Front Left | — |
| 2006 | Ford | F-150 | XLT | 5.4L | V8 | FLEX | Front Left | — |
| 2006 | Lincoln | Mark LT | Base | — | — | — | Front Left | From 08/08/05 |
| No rows match your filter. | ||||||||
