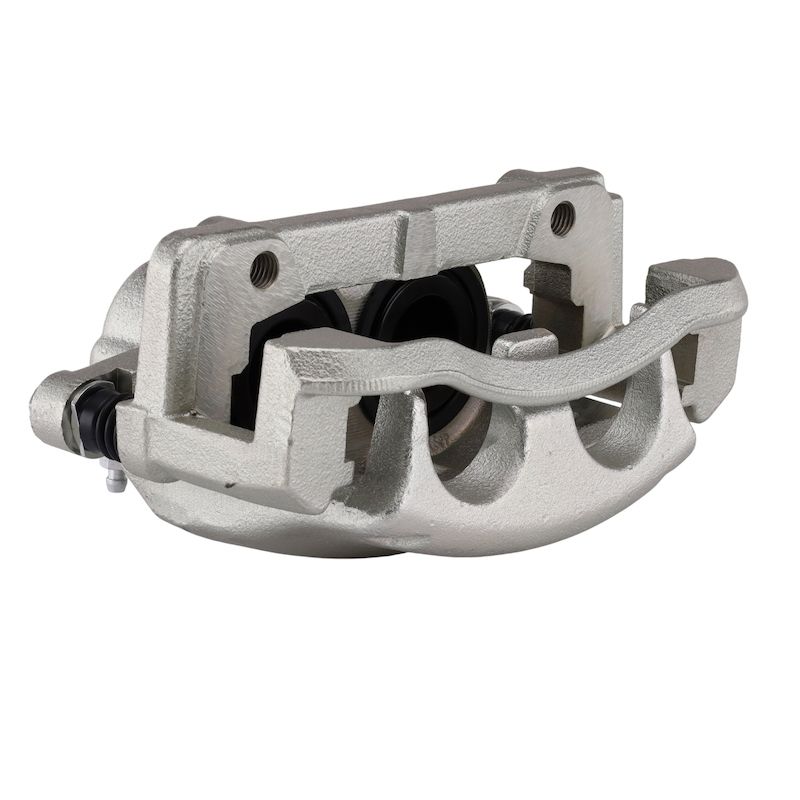

Pagid 355800962 Disc Brake Caliper - Front Right
| Brand | Pagid 355800962 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9.5 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ford and Lincoln · 7 vehicles |
Standard replacement. Direct-fit brake caliper for service-focused repairs.
Floating design. Helps maintain consistent pad contact during braking.
OE-tested construction. Built to meet OE standards for braking system requirements.
Cross-references 6L3Z 2B120-AA and 7L3Z 2B120-A for the same application. See all 2.
Brake Caliper Overview
Pagid 355800962 is a standard replacement disc brake caliper built for specific Ford and Lincoln applications. It uses a floating design with a cast iron body, a gray powder-coated finish, and a 2-piston layout for controlled braking response.
This caliper is engineered to meet OE standards and is part of HELLA Brake Calipers coverage for European aftermarket and European nameplate applications in the US. It fits 2006-2009 Ford F-150, front right, and 2007-2008 Lincoln Mark LT, front right.
Key Features
- Standard replacement disc brake caliper
- Floating caliper design with 2 pistons
- Cast iron caliper body with powder-coated finish
- Includes mounting hardware, bracket, slides, bleeder screw, anti-rattle spring, and abutment clips
- Steel pistons with 54.00 mm diameter
- Bleeder screw thread size: M10 x 1.0
Detailed Description
Pagid 355800962 is built for front right brake service on the 2006-2009 Ford F-150 and 2007-2008 Lincoln Mark LT. The floating caliper design helps maintain consistent pad contact, while the cast iron housing and steel pistons provide the structure needed for demanding brake system use. The powder-coated gray finish adds corrosion resistance for long-term service.
HELLA Brake Calipers are developed to match the requirements of different vehicle types, brake systems, engine outputs, and braking loads. Each unit undergoes testing to meet OE standards. This part cross-references Ford 6L3Z 2B120-AA and 7L3Z 2B120-A for the same application.
What It Is Used For
- Restoring braking performance when the caliper is sticking or seized
- Replacing a leaking or damaged brake caliper housing
- Correcting uneven pad wear caused by caliper wear or piston issues
- Addressing brake drag, noise, or reduced braking response
Installation Notes and Tips
Verify front right fitment before installation. Confirm bleeder screw thread size and inlet thread specifications during brake line connection. Inspect pads, rotors, and related brake components for wear before completing the repair.
Quality Assurance
Built to OE standards and tested for compliance with braking system requirements.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2009 | Ford | F-150 | Platinum | — | — | — | Front Right | — |
| 2008 | Ford | F-150 | XLT | 5.4L | V8 | FLEX | Front Right | — |
| 2008 | Lincoln | Mark LT | Base | — | — | — | Front Right | — |
| 2007 | Ford | F-150 | Harley-Davidson Edition | — | — | — | Front Right | — |
| 2007 | Lincoln | Mark LT | Base | — | — | — | Front Right | — |
| 2006 | Ford | F-150 | XLT | 5.4L | V8 | FLEX | Front Right | — |
| 2006 | Lincoln | Mark LT | Base | — | — | — | Front Right | From 08/08/05 |
