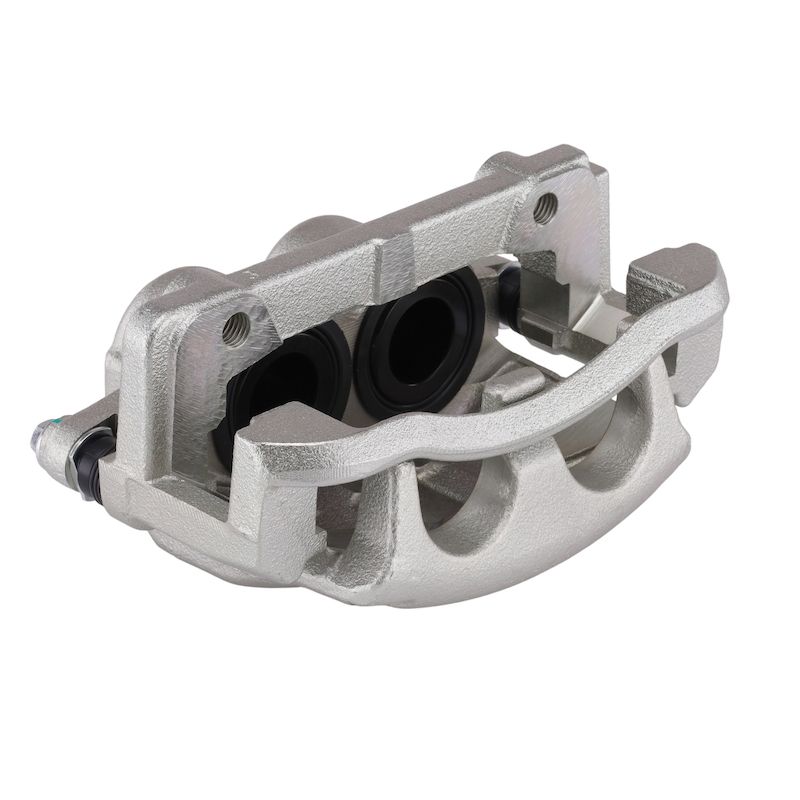

Pagid 355801032 Disc Brake Caliper - Front Left
| Brand | Pagid 355801032 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 51.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9.5 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ford · 2 vehicles |
Standard replacement. Built for service repair with OE-style fit and braking characteristics.
Cast iron body. Powder-coated finish helps resist corrosion in demanding brake environments.
Complete caliper assembly. Includes bracket, slides, bleeder screw, and mounting hardware.
Cross-references 4L3Z 2B121-AA and 4L3Z 2B121-BB for the same application. See all 2.
Overview
Pagid 355801032 is a standard replacement disc brake caliper built for direct service on select Ford truck applications. It combines a floating design, cast iron housing, and OE-level testing to support consistent braking performance.
Key Features
- Standard replacement disc brake caliper for service repair
- Floating caliper design with 2 pistons
- Cast iron caliper body with powder-coated gray finish
- Includes mounting hardware, bracket, slides, abutment clips, bleeder screw, and mounting bolt
- 51.00 mm piston diameter with steel piston material
- Pad wear sensor not included
Detailed Description
Pagid 355801032 is engineered as a standard replacement caliper for brake system repair where original braking feel and fitment matter. The cast iron construction and floating caliper layout are paired with a 51.00 mm piston diameter, steel piston material, and powder-coated finish for a service-ready design. This part cross-references Ford OE numbers 4L3Z 2B121-AA and 4L3Z 2B121-BB for the same application.
Compatible With select Ford F-150 brake service applications, this caliper is built for the front left position and matches the listed OE-style mounting and hydraulic details. Pagid 355801032 is also supported by HELLA brake caliper engineering and testing standards used across European aftermarket applications.
What It Helps Address
- Uneven braking caused by a worn or sticking caliper
- Brake drag from seized slides or piston movement issues
- Fluid leakage at the bleeder or inlet connection
- Reduced braking response from caliper wear or corrosion
- Service replacement needs after caliper housing damage
Installation Notes
Fits 2004 Ford F-150, front left, from 02/23/2004. Fits 2005 Ford F-150, front left, to 11/29/2004. Verify bleeder and inlet thread sizes, piston diameter, and bracket alignment before installation. Mounting hardware, bracket, slides, abutment clips, and bleeder screw are listed as included.
Quality Assurance
Every HELLA brake caliper in this program undergoes extensive testing to meet OE standards for safety and performance.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2005 | Ford | F-150 | Lariat | Front Left | To 11/29/2004 |
| 2004 | Ford | F-150 | STX | Front Left | From 02/23/2004 |
