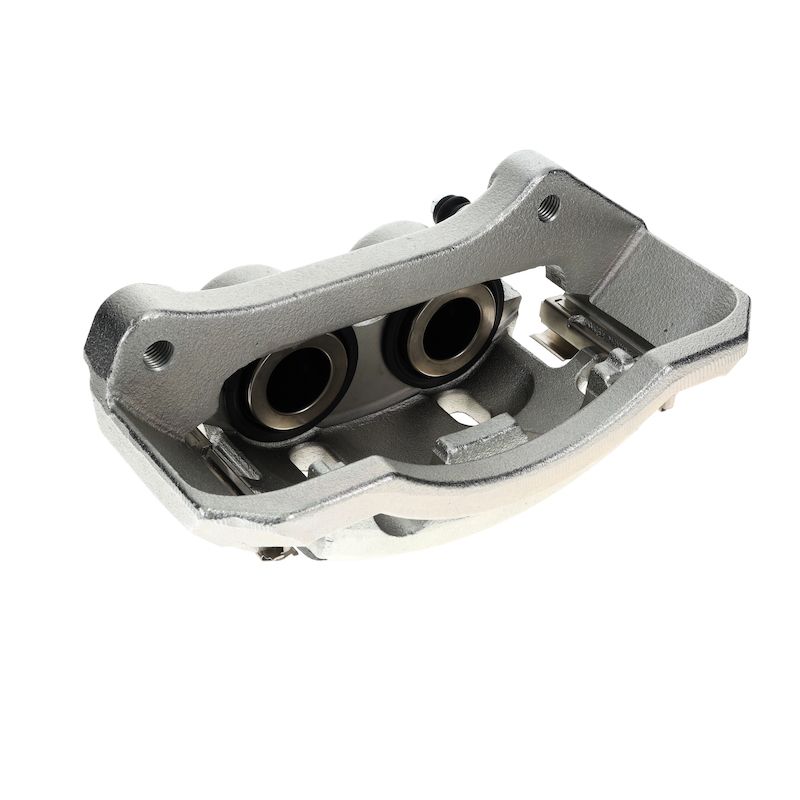

Pagid 355801172 Disc Brake Caliper - Front Left
| Brand | Pagid 355801172 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 56.00 |
| Caliper Color | Gray |
| Abutment Clips Included | No |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Dodge · 15 vehicles |
OE-standard replacement. Built to meet OE testing requirements for braking performance and safety.
Complete service caliper. Includes bracket, slides, bleeder screw, and mounting bolt for replacement work.
Cast iron body. Powder-coated finish and 2-piston floating design for durable brake service.
Cross-references 5093269AA for the same application. See all 1.
Overview
This Pagid disc brake caliper is a standard replacement built for OE-level fit and braking performance. It is a floating caliper with a cast iron body, powder-coated finish, and a 2-piston design for consistent brake response.
Fits 2006-2008 Dodge Ram 1500, front left. Fits 2003-2008 Dodge Ram 2500, front left. Fits 2003-2008 Dodge Ram 3500, front left. Part number 355801172 is also referenced by 5093269AA for the same application.
Key Features
- Standard replacement disc brake caliper for direct service use
- Floating caliper design with 2 steel pistons
- Cast iron construction with gray powder-coated finish
- Mounting bracket, slides, bleeder screw, and mounting bolt included
- 56.00 mm piston diameter for the specified brake system
Detailed Description
Pagid 355801172 is engineered to meet OE standards for braking systems that require a front left disc brake caliper with a floating design. The cast iron housing and powder-coated finish provide a durable service part, while the included bracket, slides, bleeder screw, and mounting bolt support a complete caliper replacement. This caliper is built for Dodge Ram 1500, Ram 2500, and Ram 3500 applications listed in the fitment data, making it a direct-match option for the specified brake setup. Part number 355801172 is a practical replacement choice when restoring hydraulic caliper function and brake pedal consistency.
Common Issues It Can Address
- Uneven brake pad wear caused by caliper sticking or slide wear
- Brake fluid leakage from a worn caliper body or bleeder area
- Reduced braking response from piston or seal wear
- Brake drag or pulling related to caliper movement problems
- Corrosion-related caliper deterioration on service vehicles
Installation Notes
Verify fitment by year, make, model, and front left position before installation. Confirm inlet and bleeder thread sizes match the vehicle brake line and service requirements. Bleed the brake system after installation and inspect for leaks, proper slide movement, and even pad contact.
Quality Assurance
HELLA brake calipers are tested to meet OE standards for safety and performance. Pagid 355801172 is built to the listed specifications for the confirmed applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Dodge | Ram 1500 | SXT | 5.7L | V8 | Front Left | — |
| 2008 | Dodge | Ram 2500 | Power Wagon | — | — | Front Left | — |
| 2008 | Dodge | Ram 3500 | SXT | 6.7L | L6 | Front Left | — |
| 2007 | Dodge | Ram 1500 | SLT | 5.7L | V8 | Front Left | — |
| 2007 | Dodge | Ram 2500 | Power Wagon | — | — | Front Left | — |
| 2007 | Dodge | Ram 3500 | TRX4 | — | — | Front Left | — |
| 2006 | Dodge | Ram 1500 | SLT | 5.7L | V8 | Front Left | — |
| 2006 | Dodge | Ram 2500 | Power Wagon | — | — | Front Left | — |
| 2006 | Dodge | Ram 3500 | Sport | 5.9L | L6 | Front Left | — |
| 2005 | Dodge | Ram 2500 | ST | 5.9L | L6 | Front Left | — |
| 2005 | Dodge | Ram 3500 | ST | 5.9L | L6 | Front Left | — |
| 2004 | Dodge | Ram 2500 | ST | 5.9L | L6 | Front Left | — |
| 2004 | Dodge | Ram 3500 | ST | 5.9L | L6 | Front Left | — |
| 2003 | Dodge | Ram 2500 | ST | 8.0L | V10 | Front Left | — |
| 2003 | Dodge | Ram 3500 | ST | 8.0L | V10 | Front Left | — |
