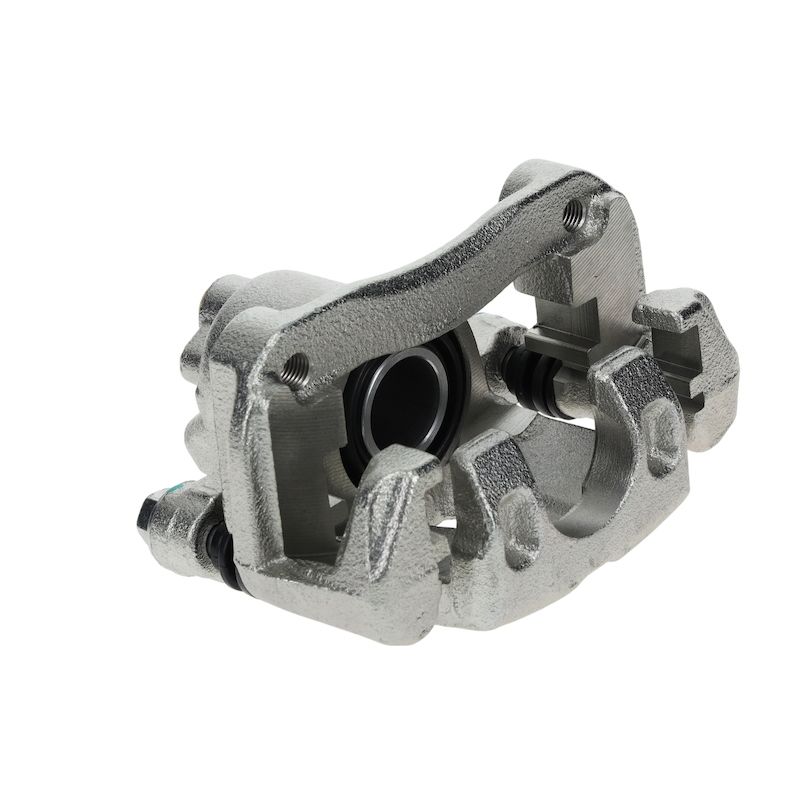

Pagid 355801272 Disc Brake Caliper - Rear Left
| Brand | Pagid 355801272 |
|---|---|
| Position | Rear Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 38.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Toyota · 13 vehicles |
OE-standard replacement. Extensive testing supports consistent brake performance and safety.
Floating caliper design. 38.00 mm piston and steel piston construction for hydraulic control.
Service-ready hardware. Includes bracket, slides, bleeder screw, and mounting bolt.
Cross-references 47750-06090 for the same application. See all 1.
Overview
This Pagid disc brake caliper is a standard replacement unit built for precise brake system fitment and OE-level performance expectations. It is engineered for the rear left position and matches the needs of Toyota sedan applications with a floating caliper design.
Part number 355801272 is a practical choice for restoring consistent braking response on compatible Toyota Camry, Toyota Avalon, and Toyota Solara applications. The gray powder-coated cast iron body, steel piston, and included mounting bracket support a direct-service replacement approach.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Floating caliper design with a 38.00 mm piston
- Cast iron caliper body with powder-coated gray finish
- Steel piston for dependable hydraulic operation
- Mounting hardware, bracket, slides, abutment clips, bleeder screw, and mounting bolt included
- Part number 355801272 for accurate ordering and catalog matching
Detailed Description
Pagid 355801272 is a rear left disc brake caliper engineered to meet OE standards through extensive testing. It is built for Toyota brake service where consistent clamping force, proper hydraulic sealing, and stable pedal response are required. The floating caliper layout, 38.00 mm piston diameter, and included slides and bracket support correct installation on the specified applications.
This part cross-references Toyota 47750-06090 for the same application. It is listed for 2002-2006 Toyota Camry, rear left, USA built; 2005-2007 Toyota Avalon, rear left; and 2004-2008 Toyota Solara, rear left. Use part number 355801272 when verifying catalog match for Toyota Camry, Toyota Avalon, and Toyota Solara brake repair.
Common Issues It Can Address
- Uneven rear brake clamping caused by caliper wear
- Brake fluid leakage at the caliper assembly
- Sticking or seized caliper movement
- Reduced braking response from worn hydraulic components
- Corrosion-related caliper performance loss
Installation Notes
Confirm rear left fitment by year, model, and the USA-built note for the 2002-2006 Toyota Camry application before installation. Inspect brake hoses, pads, and rotor condition during service, and verify bleeder screw and inlet thread specifications during assembly. Part number 355801272 should be matched to the vehicle catalog before brake system work begins.
Quality Assurance
Pagid brake calipers are tested to meet OE standards for safety and performance. The product line is engineered for European aftermarket coverage and nameplate applications in the US, with manufacturing and testing focused on consistent brake-system operation.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2008 | Toyota | Solara | Sport | 3.3L | V6 | Rear Left | — |
| 2007 | Toyota | Avalon | XLS | — | — | Rear Left | — |
| 2007 | Toyota | Solara | Sport | 3.3L | V6 | Rear Left | — |
| 2006 | Toyota | Avalon | XLS | — | — | Rear Left | — |
| 2006 | Toyota | Camry | SE | 3.3L | V6 | Rear Left | USA Built |
| 2006 | Toyota | Solara | SLE | 3.3L | V6 | Rear Left | — |
| 2005 | Toyota | Avalon | XLS | — | — | Rear Left | — |
| 2005 | Toyota | Camry | SE | 3.3L | V6 | Rear Left | USA Built |
| 2005 | Toyota | Solara | SLE | 3.3L | V6 | Rear Left | — |
| 2004 | Toyota | Camry | SE | 3.3L | V6 | Rear Left | USA Built |
| 2004 | Toyota | Solara | SLE | 3.3L | V6 | Rear Left | — |
| 2003 | Toyota | Camry | XLE | 3.0L | V6 | Rear Left | USA Built |
| 2002 | Toyota | Camry | XLE | 3.0L | V6 | Rear Left | USA Built |
