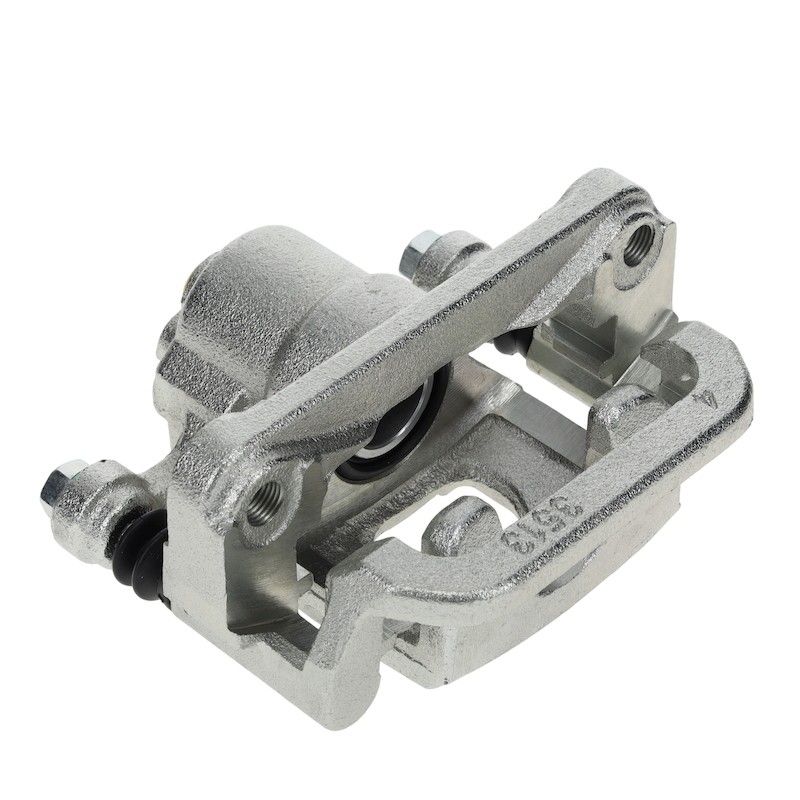

Pagid 355801302 Disc Brake Caliper - Rear Right
| Brand | Pagid 355801302 |
|---|---|
| Position | Rear Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 35.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 6 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Thread Size | M7 x 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Product line | HELLA OE Certified |
| Fits | Nissan · 28 vehicles |
OE-certified replacement. HELLA OE Certified testing supports OE-standard brake performance.
Floating caliper design. Single-piston construction with a 35.00 mm piston diameter.
Complete service-ready hardware. Includes bracket, slides, clips, bleeder screw, and mounting hardware.
Cross-references 44001JA01B, 440016CA0D and 440017Y005 for the same application. See all 4.
Overview
This Pagid disc brake caliper is a standard replacement part built for rear right brake service on select Nissan applications. It is HELLA OE Certified and engineered to meet OE standards for safety, performance, and braking consistency. Part number 355801302 is a direct-fit solution for Nissan Altima and Nissan Maxima brake repairs that require a floating caliper design.
Key Features
- Standard replacement disc brake caliper with HELLA OE Certified coverage.
- Floating caliper design with a single 35.00 mm piston.
- Cast iron caliper body with powder-coated gray finish.
- Includes mounting bracket, slides, abutment clips, bleeder screw, and mounting hardware.
- Steel piston construction for brake system service.
Detailed Description
Pagid 355801302 is engineered for rear right fitment on select Nissan Altima and Nissan Maxima models. The caliper uses a floating design with one piston and a cast iron housing, giving it the construction expected in a standard replacement brake hydraulic component. HELLA OE Certified testing supports OE-level compliance, and the powder-coated finish adds corrosion resistance for everyday brake service. This part number 355801302 is listed with application coverage for Nissan Altima and Nissan Maxima brake repairs where the original caliper includes a bracket.
This part cross-references Nissan OE numbers 44001JA01B and 440016CA0D for the same application.
What It Helps Address
- Brake drag caused by a sticking or seized caliper.
- Uneven rear braking from worn piston or slide components.
- Fluid leakage at the bleeder screw or inlet connection.
- Corrosion-related caliper wear on the housing or finish.
- Brake noise linked to missing or worn abutment hardware.
Installation Notes and Tips
Fits 2025-2026 Nissan Altima, rear right; 2017-2024 Nissan Altima, rear right; 2013-2016 Nissan Altima, rear right; 2002-2006 Nissan Altima, rear right; 2019-2023 Nissan Maxima, rear right; 2005-2007 Nissan Maxima, rear right; and 2004 Nissan Maxima, rear right. Verify brake line thread size, bracket style, and caliper orientation before installation. Bleed the brake system after installation and confirm proper slide movement and piston operation.
Quality Assurance
HELLA OE Certified products undergo extensive testing to meet OE standards for safety and performance. Pagid 355801302 is built to the requirements of European independent aftermarket applications and European nameplates in the US.
| Year | Make | Model | Submodel | Drive Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2026 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket; HELLA OE Certified |
| 2025 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket; HELLA OE Certified |
| 2024 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2023 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2023 | Nissan | Maxima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2022 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2022 | Nissan | Maxima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2021 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2021 | Nissan | Maxima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2020 | Nissan | Altima | S | FWD | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2020 | Nissan | Maxima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2019 | Nissan | Altima | S | FWD | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2019 | Nissan | Maxima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2018 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2017 | Nissan | Altima | SV | — | Rear Right | Incl.Disc Brake Caliper Bracket |
| 2016 | Nissan | Altima | SV | — | Rear Right | — |
| 2015 | Nissan | Altima | Base | — | Rear Right | — |
| 2014 | Nissan | Altima | Base | — | Rear Right | — |
| 2013 | Nissan | Altima | Base | — | Rear Right | — |
| 2007 | Nissan | Maxima | SL | — | Rear Right | — |
| 2006 | Nissan | Altima | SE-R | — | Rear Right | — |
| 2006 | Nissan | Maxima | SL | — | Rear Right | — |
| 2005 | Nissan | Altima | SE-R | — | Rear Right | — |
| 2005 | Nissan | Maxima | SL | — | Rear Right | — |
| 2004 | Nissan | Altima | SL | — | Rear Right | — |
| 2004 | Nissan | Maxima | SL | — | Rear Right | To 05/04 |
| 2003 | Nissan | Altima | SE | — | Rear Right | — |
| 2002 | Nissan | Altima | SE | — | Rear Right | — |
