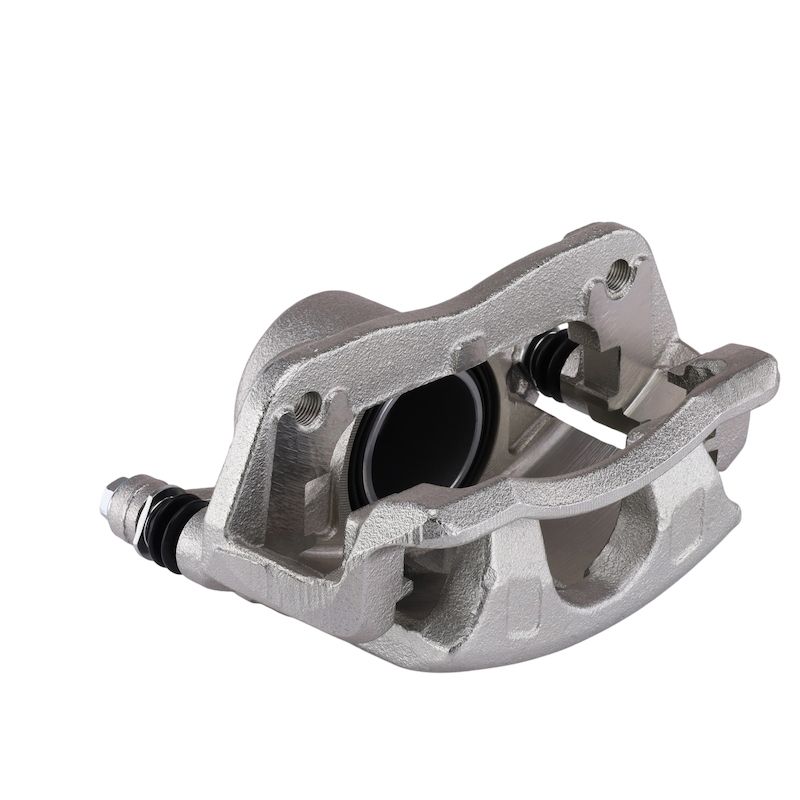

Pagid 355801432 Disc Brake Caliper - Front Left
| Brand | Pagid 355801432 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 57.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Acura and Honda · 20 vehicles |
Standard replacement. Direct-fit brake caliper for service-focused hydraulic repair.
Floating design. One-piston construction supports consistent clamping action.
Powder-coated finish. Cast iron body with steel piston for durable brake service.
Cross-references 45019-SZW-000 and 45019-T2F-A00 for the same application. See all 2.
Overview
This Pagid disc brake caliper is a standard replacement for select Honda and Acura applications with front left fitment. It is built as a floating caliper with a cast iron body, steel piston, and powder-coated gray finish for service-focused brake system replacement.
Fits 2013-2021 Honda Civic, front left. Fits 2013-2017 Honda Accord, front left. Fits 2016 Honda CR-Z, front left. Fits 2013-2015 Acura ILX, front left. Fits 2013-2014 Honda Fit, front left.
- Standard replacement disc brake caliper for brake hydraulic service
- Floating caliper design with one 57.00 mm piston
- Cast iron caliper body with steel piston and powder-coated finish
- Mounting bracket, slides, bleeder screw, bolts, and abutment clips included
- Pad wear sensor not included
Detailed Description
Pagid 355801432 is engineered as a direct-fit brake caliper for select Honda Civic, Honda Accord, Honda CR-Z, Acura ILX, and Honda Fit applications. The floating design and 57.00 mm piston support consistent clamping action, while the cast iron housing and powder-coated gray finish provide a durable service replacement for the original brake hydraulic assembly. This part cross-references Honda OE numbers 45019-SZW-000 and 45019-T2F-A00 for the same application.
What It Fixes
- Sticking or seized caliper movement
- Uneven brake pad contact and pull during braking
- Leaking or worn caliper hydraulic components
- Corrosion on the caliper body or bleeder area
- Brake service issues caused by worn slides or bracket wear
Installation Notes
Verify front left fitment and brake system configuration before installation. This caliper includes the mounting bracket, slides, bleeder screw, mounting bolts, and abutment clips, which supports a complete caliper replacement on the listed applications. Bleeder screw thread size is M10 x 1.0, and inlet thread size is 9 mm x 1.0.
Quality Assurance
HELLA brake calipers are tested to meet OE standards and are engineered for the requirements of different vehicle types, brake systems, and braking loads.
| Year | Make | Model | Submodel | Transmission | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2021 | Honda | Civic | Touring | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2020 | Honda | Civic | Touring | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2019 | Honda | Civic | Touring | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2018 | Honda | Civic | Touring | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2017 | Honda | Accord | LX | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2017 | Honda | Civic | Touring | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2016 | Honda | Accord | LX | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2016 | Honda | Civic | Touring | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2016 | Honda | CR-Z | LX | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2015 | Acura | ILX | Base | — | 2.0L | L4 | Front Left | Incl.Disc Brake Caliper Bracket |
| 2015 | Honda | Accord | LX-S | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2015 | Honda | Civic | SE | Automatic CVT | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2014 | Acura | ILX | Base | — | 2.0L | L4 | Front Left | Incl.Disc Brake Caliper Bracket |
| 2014 | Honda | Accord | LX-S | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2014 | Honda | Civic | LX | Automatic CVT | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2014 | Honda | Fit | EV | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2013 | Acura | ILX | Base | — | 2.0L | L4 | Front Left | Incl.Disc Brake Caliper Bracket |
| 2013 | Honda | Accord | LX | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2013 | Honda | Civic | LX | Automatic | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
| 2013 | Honda | Fit | EV | — | — | — | Front Left | Incl.Disc Brake Caliper Bracket |
