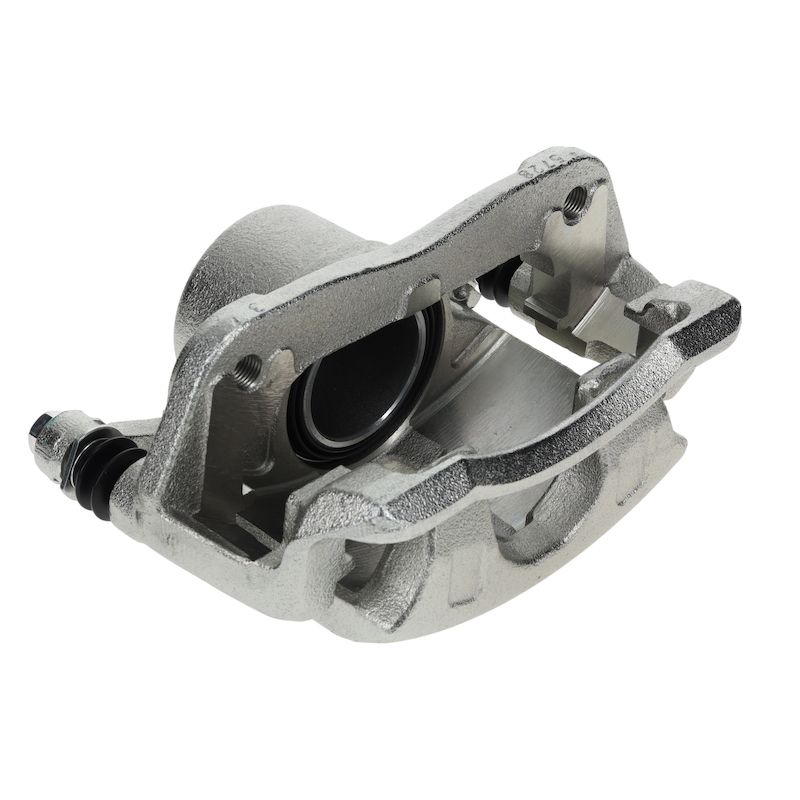

Pagid 355801442 Disc Brake Caliper - Front Right

Product Overview

This Pagid disc brake caliper is a standard replacement hydraulic caliper built for specific front right applications. It features a floating design, cast iron housing, a steel piston, and a powder-coated gray finish for a service-ready brake system replacement.

Fits 2013-2021 Honda Civic, front right. Fits 2013-2017 Honda Accord, front right. Fits 2016 Honda CR-Z, front right. Fits 2013-2015 Acura ILX, front right. Fits 2013-2014 Honda Fit, front right. Part number 355801442 is listed for these applications, and this part cross-references Honda OE numbers 45018-SZW-000 and 45018-T2F-A00 for the same application.

Key Features

• Floating caliper design for consistent brake pad movement and contact.
• Cast iron caliper body with a steel piston.
• Powder-coated gray finish for added surface protection.
• Mounting bracket, slides, abutment clips, bleeder screw, and mounting hardware included.
• Standard replacement grade for direct brake service work.

Detailed Description

Pagid 355801442 is a disc brake caliper engineered to meet OE-level requirements for braking performance, fit, and system compatibility. The caliper uses a 57.00 mm piston and a floating layout, which is common in modern hydraulic brake systems that rely on smooth piston movement and even pad engagement. The cast iron body and steel piston provide a durable construction suited to routine brake repair on the Honda Civic, Honda Accord, Honda CR-Z, Acura ILX, and Honda Fit applications listed above.

This caliper is supplied with a mounting bracket, caliper slides, abutment clips, a bleeder screw, and mounting bolts. The inlet and bleeder screw threads are both M10 x 1.0, which helps confirm hydraulic connection details during replacement. Part number 355801442 is also referenced by Honda OE numbers 45018-SZW-000 and 45018-T2F-A00.

Common Repair Uses

• Sticking or seized caliper movement.
• Uneven brake pad wear caused by caliper wear.
• Brake fluid leakage at the caliper assembly.
• Corrosion or damage to the caliper housing or piston.
• Brake noise or reduced braking response from a worn hydraulic caliper.

Installation Notes

Verify the vehicle’s front right brake configuration before installation. Confirm piston size, thread specifications, and bracket inclusion against the original part to ensure proper hydraulic and mechanical fit. Bleed the brake system after installation and inspect pad contact, slide movement, and fluid sealing before returning the vehicle to service.

Quality Assurance

HELLA brake calipers are tested to meet OE standards and are engineered for the requirements of different vehicle types and braking loads. Pagid 355801442 is a standard replacement caliper built for controlled fitment and consistent braking performance in the listed Honda and Acura applications.
