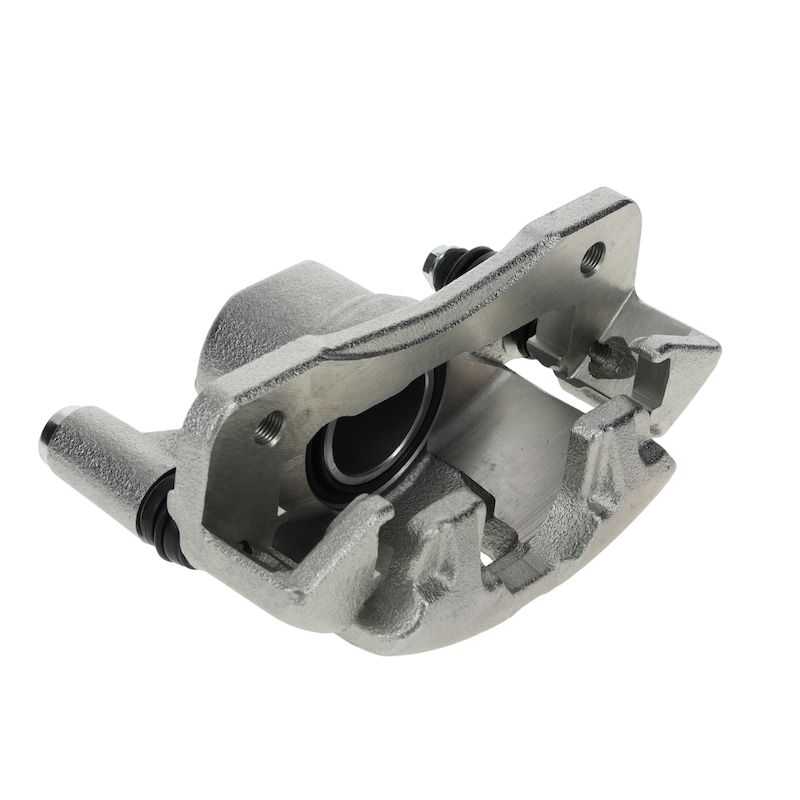

Pagid 355801492 Disc Brake Caliper - Front Left
| Brand | Pagid 355801492 |
|---|---|
| Position | Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 51.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Honda · 16 vehicles |
Standard replacement. Built for direct service use with OE-standard testing.
Floating caliper design. Single-piston construction supports consistent brake response.
Powder-coated finish. Gray coating adds surface protection to the cast iron body.
Cross-references 45019-SR3-A00, 45019-SR8-A00 and 45230-SH3-L02 for the same application. See all 6.
Brake Caliper for Honda Applications
This Pagid disc brake caliper is a standard replacement unit built for specific Honda applications. It combines a floating design with a cast iron body, powder-coated finish, and OE-standard testing for consistent braking performance.
Fits 1990 Honda CRX, front left. Fits 1990-1991 Honda Civic, front left. Fits 1992-1993 Honda Civic, front left. Fits 1993-1997 Honda Civic del Sol, front left. Fits 1994 Honda Civic, front left. Fits 1995 Honda Civic, front left. Fits 1996-1998 Honda Civic, front left. Fits 1999 Honda Civic, front left.
Key Features
- Standard replacement disc brake caliper for direct service use.
- Floating caliper design with one 51.00 mm piston.
- Cast iron caliper body with steel piston for durable brake operation.
- Powder-coated gray finish for added surface protection.
- Includes mounting bracket, caliper slides, abutment clips, bleeder screw, and mounting hardware.
- Bleeder screw thread size: M10 x 1.0; inlet thread diameter and pitch: 9 mm x 1.0.
Detailed Description
Pagid 355801492 is a brake caliper engineered for Honda Civic, Honda Civic del Sol, and Honda CRX applications that require a front left floating caliper. The design uses a single 51.00 mm piston and a cast iron housing to match the demands of everyday braking, while the powder-coated finish helps protect the caliper surface. Pagid 355801492 is built as a standard replacement and is tested to OE standards for fit and performance consistency.
This part cross-references Honda OE numbers (e.g., 45019-SR3-A00, 45019-SR8-A00) for the same application.
Common Issues This Part May Solve
- Brake drag caused by worn or sticking caliper slides.
- Uneven braking from a seized or leaking caliper.
- Soft or inconsistent pedal response related to caliper wear.
- Brake noise linked to damaged caliper components or hardware.
- Reduced braking performance from corrosion or piston wear.
Installation Notes and Tips
Verify the front left position, piston size, and inlet/bleeder thread specifications before installation. Confirm the vehicle application and brake system match the listed Honda fitment, including Japan-built, USA-built, and vendor-specific notes where shown. Inspect brake hoses, pads, and related components during service to ensure proper operation after replacement.
Quality Assurance
Pagid brake calipers are tested to OE standards and engineered to meet the requirements of the listed vehicle applications.
| Year | Make | Model | Submodel | Transmission | Position | Notes |
|---|---|---|---|---|---|---|
| 1999 | Honda | Civic | LX | — | Front Left | Japan Built |
| 1998 | Honda | Civic | LX | — | Front Left | — |
| 1997 | Honda | Civic | LX | — | Front Left | — |
| 1997 | Honda | Civic del Sol | Si | — | Front Left | — |
| 1996 | Honda | Civic | LX | Automatic | Front Left | — |
| 1996 | Honda | Civic del Sol | Si | — | Front Left | — |
| 1995 | Honda | Civic | LX | — | Front Left | Japan Built |
| 1995 | Honda | Civic del Sol | Si | — | Front Left | — |
| 1994 | Honda | Civic | LX | — | Front Left | USA Built |
| 1994 | Honda | Civic del Sol | Si | — | Front Left | — |
| 1993 | Honda | Civic | LX | — | Front Left | Japan Built |
| 1993 | Honda | Civic del Sol | Si | — | Front Left | — |
| 1992 | Honda | Civic | LX | — | Front Left | Japan Built |
| 1991 | Honda | Civic | LX | — | Front Left | Vendor:AKEBONO |
| 1990 | Honda | Civic | LX | — | Front Left | Vendor:AKEBONO |
| 1990 | Honda | CRX | Base | — | Front Left | Vendor:AKEBONO |
