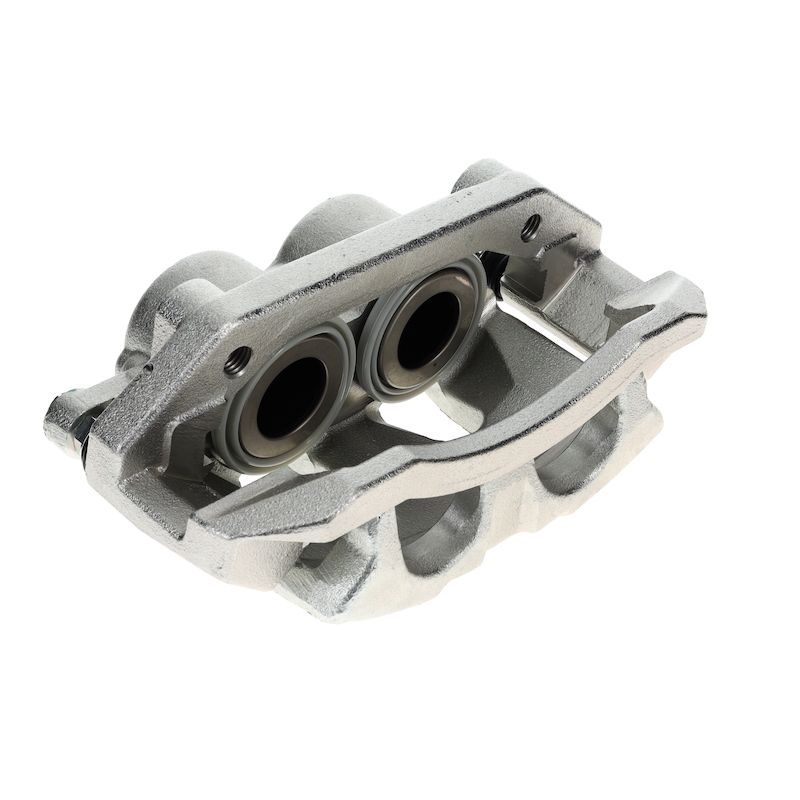

Pagid 355801512 Disc Brake Caliper - Front Left or Front Right
| Brand | Pagid 355801512 |
|---|---|
| Position | Front Right and Front Left |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 54.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Chrysler, Dodge, and Ram · 8 vehicles |
Standard replacement. Direct-fit brake caliper for service work with OE-style application coverage.
Cast iron body. Powder-coated finish helps resist corrosion during everyday brake service.
Complete caliper assembly. Includes bracket, slides, bleeder screw, and mounting bolt for a fuller repair.
Cross-references 68002702AA and 68037147AA for the same application. See all 2.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Disc Brake Caliper Overview
This Pagid disc brake caliper is a standard replacement hydraulic unit built for European and nameplate applications in the US market. It uses a floating design with a cast iron body, two steel pistons, and a powder-coated gray finish for a service-ready brake repair.
Key Features
- Standard replacement disc brake caliper with a floating design
- Cast iron caliper body with powder-coated gray finish
- Two 54.00 mm steel pistons for hydraulic braking force
- Mounting bracket, slides, abutment clips, bleeder screw, and mounting bolt included
- OE-standard testing for fit, safety, and performance
Detailed Description
Pagid 355801512 is engineered to meet the demands of different vehicle weights, brake system requirements, and braking characteristics. The cast iron construction and floating caliper layout support consistent brake pad movement, while the included bracket and slides simplify a complete caliper service. This part cross-references Monroe Shocks & Struts (e.g., 68002702AA, 68037147AA) for the same application. It is a direct-fit service option for Ram 1500 brake repair and related Chrysler and Dodge applications where this caliper configuration is specified.
Common Issues This Part Can Address
- Sticking or seized caliper movement
- Uneven brake pad wear from worn caliper components
- Brake fluid leakage at the caliper assembly
- Reduced braking response from piston or slide wear
- Corrosion-related caliper service needs
Installation Notes and Quality Assurance
Verify caliper position, inlet thread size, and bleeder screw thread size before installation. Bleeding the brake system after replacement is required to restore proper hydraulic operation. This part includes hardware components listed in the product data, and Pagid states that every unit undergoes extensive testing to meet OE standards.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2011 | Ram | 1500 | Tradesman | — | — | Front Left | — |
| 2011 | Ram | Dakota | ST | — | — | Front Left | — |
| 2010 | Dodge | Ram 1500 | Sport | — | — | Front Left | — |
| 2009 | Dodge | Ram 1500 | TRX4 | 5.7L | V8 | Front Left | — |
| 2008 | Chrysler | Aspen | Limited | 5.7L | V8 | Front Right | — |
| 2008 | Dodge | Durango | SLT | 5.7L | V8 | Front Right | — |
| 2007 | Chrysler | Aspen | Limited | 5.7L | V8 | Front Right | — |
| 2007 | Dodge | Durango | SXT | 5.7L | V8 | Front Right | — |
| No rows match your filter. | |||||||
