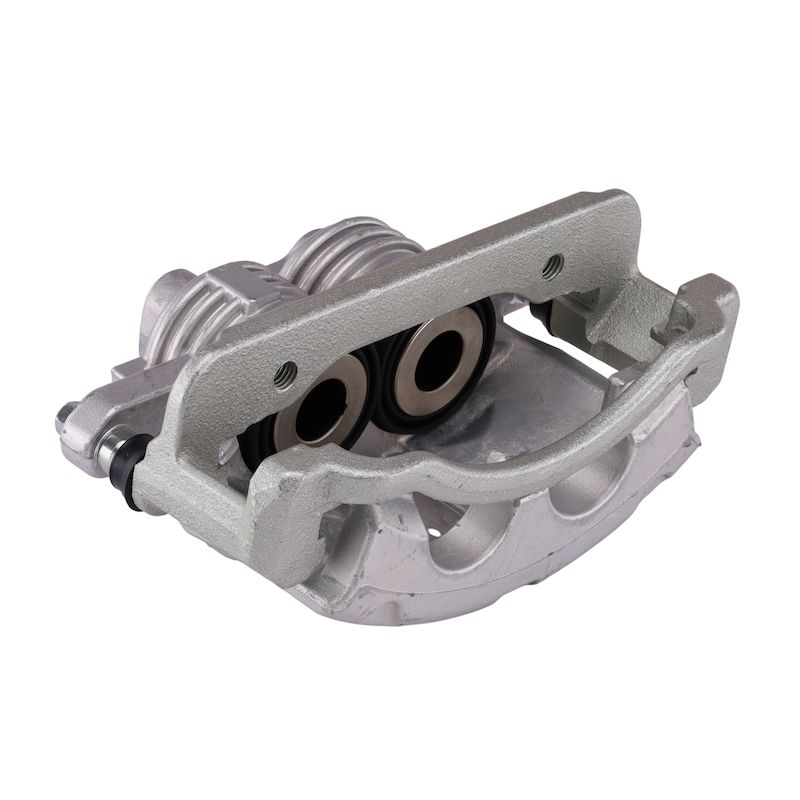

Pagid 355801622 Disc Brake Caliper - Front Right
| Brand | Pagid 355801622 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Aluminum |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 45.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 9 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ford · 4 vehicles |
OE-standard testing. Built and validated to meet OE performance and safety requirements.
Floating caliper design. Two-piston construction supports even pad contact and controlled braking.
Complete service hardware. Includes bracket, slides, bleeder screw, and anti-rattle spring.
Cross-references XR3Z 2B120-AA for the same application. See all 1.
Overview
The Pagid 355801622 disc brake caliper is a standard replacement brake hydraulics component for the Ford Mustang. It is built as a floating caliper with a two-piston design, aluminum casting, and powder-coated finish for a service-ready fit and consistent braking response.
Fits 1999-2002 Ford Mustang, front right. This part cross-references XR3Z 2B120-AA for the same application.
Key Features
- Standard replacement disc brake caliper from Pagid.
- Floating caliper design with two steel pistons.
- Aluminum caliper casting with gray powder-coated finish.
- Mounting bracket, slides, abutment clips, bleeder screw, and anti-rattle spring included.
- Mounting hardware included for a complete service replacement.
Detailed Description
Pagid 355801622 is engineered for brake service on the Ford Mustang and matches OE-level requirements for fit, function, and braking characteristics. The aluminum body helps reduce weight, while the floating design and 45 mm piston diameter support even pad contact and controlled brake application. The caliper includes a mounting bracket, caliper slides, bleeder screw, anti-rattle spring, and abutment clips, making it a practical replacement for worn or sticking brake hardware.
Pagid brake components are developed to meet the demands of different vehicle types and braking loads, and this caliper is tested to OE standards. For buyers searching for a Ford Mustang front right brake caliper or Pagid 355801622 brake caliper, this part provides a direct service solution for the listed application.
What It Helps Fix
- Uneven braking caused by a sticking caliper.
- Poor pad movement from worn slides or hardware.
- Brake drag related to seized piston action.
- Noise from missing or worn anti-rattle components.
- Corrosion-related caliper replacement needs.
Installation Notes
Verify brake hose thread size, inlet thread size, and mounting points before installation. Bleeder screw and inlet specifications are listed as M10 x 1.0, with a 9 mm thread diameter. Always inspect pads, rotors, and brake fluid condition during caliper replacement to complete the repair correctly.
Quality Assurance
Pagid 355801622 is tested to OE standards for safety and performance. The product is part of HELLA Brake Calipers coverage for European aftermarket applications and European nameplates in the US.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 2002 | Ford | Mustang | GT | Front Right | — |
| 2001 | Ford | Mustang | GT | Front Right | — |
| 2000 | Ford | Mustang | GT | Front Right | — |
| 1999 | Ford | Mustang | GT | Front Right | — |
| No rows match your filter. | |||||
