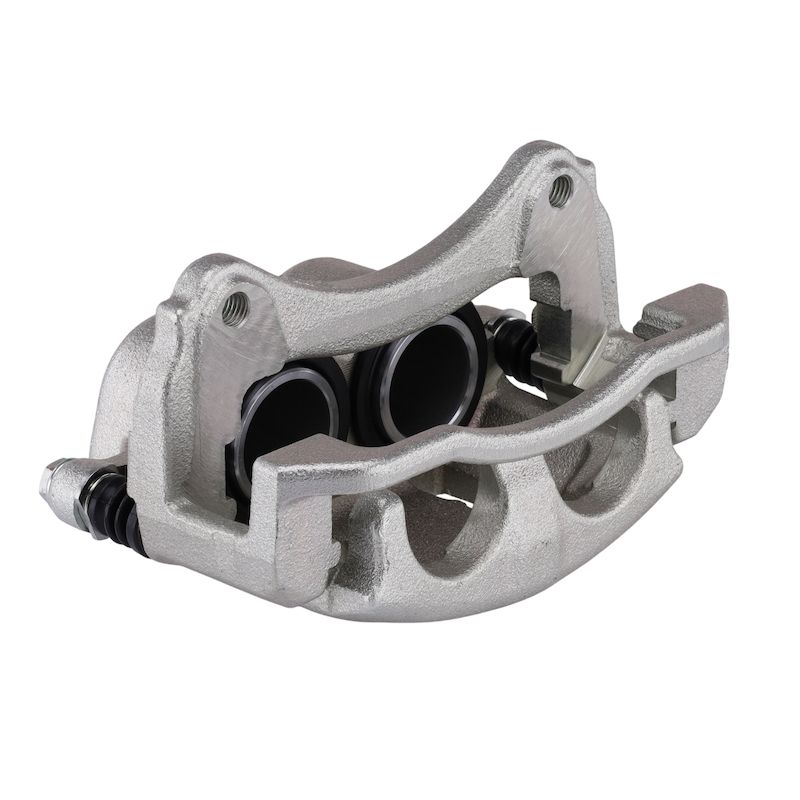

Pagid 355801692 Disc Brake Caliper - Front Left

Overview

This Pagid disc brake caliper, part number 355801692, is a standard replacement unit built for OE-level braking performance. It uses a floating caliper design with a cast iron body, gray powder-coated finish, and a 2-piston layout for consistent brake response.

Compatible with Ford Ranger, Ford Explorer, and Mercury Mountaineer applications in the front left position, this caliper is built for direct service replacement on supported vehicles. The 355801692 caliper also includes the mounting bracket, slides, bleeder screw, anti-rattle spring, abutment clips, and mounting hardware.

Key Features

• Standard replacement disc brake caliper for brake hydraulic service
• Floating caliper design with 2 pistons for balanced clamping action
• Cast iron construction with a powder-coated gray finish
• Steel pistons and a 46.00 mm piston diameter
• Includes mounting bracket, slides, bleeder screw, anti-rattle spring, and abutment clips
• Pad wear sensor not included

Detailed Description

Pagid 355801692 is engineered as a standard replacement brake caliper for supported Ford Ranger, Ford Explorer, and Mercury Mountaineer front left applications. The floating design and 2-piston configuration are matched to the braking demands of the listed vehicles, while the cast iron housing and powder-coated finish provide a service-ready replacement for brake hydraulic repair. HELLA brake calipers are tested to meet OE standards, and this part number 355801692 follows that approach for fit and function.

This part cross-references Ford OE numbers F57Z 2B121-A and XL2Z 2B121-AB for the same application.

What It Helps Fix

• Uneven or reduced braking force at the front left wheel
• Sticking or seized caliper movement
• Brake fluid leakage around the caliper assembly
• Brake noise caused by worn caliper hardware or slides
• Poor pad contact from a worn hydraulic caliper

Installation Notes

Fits 1995-2001 Ford Explorer, front left. Fits 1995-1998 Ford Ranger, front left. Fits 1997-2001 Mercury Mountaineer, front left. Fits 1999-2002 Ford Ranger, front left, housing assembly.

Verify brake hose thread size, inlet thread specifications, and piston configuration before installation. Bleeder screw, mounting bolt, caliper slides, abutment clips, and mounting bracket are listed as included, so compare the replacement unit to the original caliper during service. Follow proper brake bleeding procedures after installation.

Quality Assurance

Pagid brake calipers are backed by HELLA engineering and extensive testing to meet OE standards for safety and performance.
