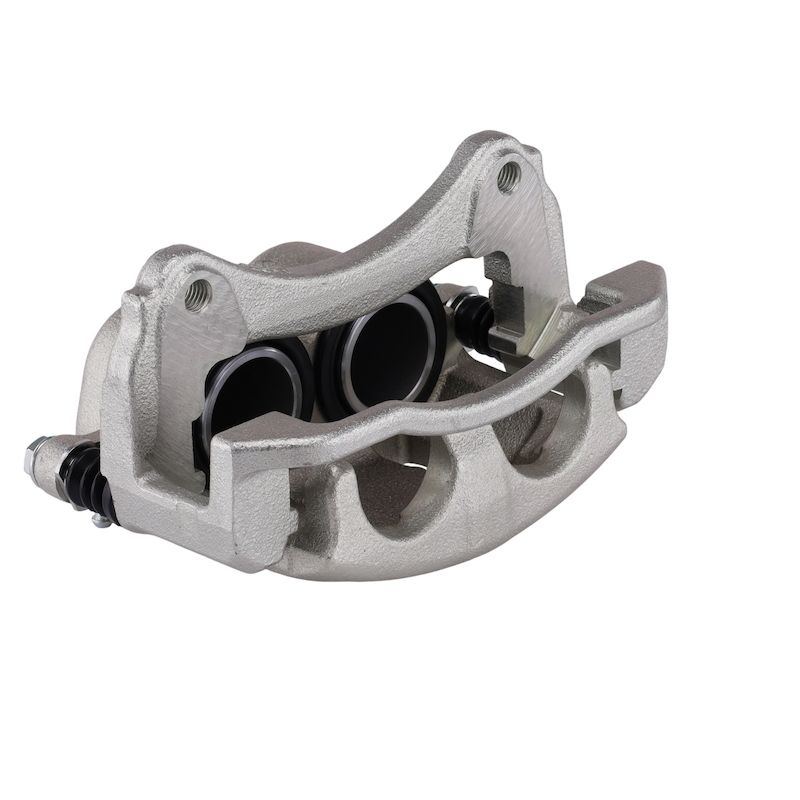

Pagid 355801702 Disc Brake Caliper - Front Right
| Brand | Pagid 355801702 |
|---|---|
| Position | Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | Yes |
| Caliper Slides Included | Yes |
| Piston Quantity | 2 |
| Caliper Type | Floating |
| Piston Diameter | 46.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9.5 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Bleeder Screw Threads Per Inch | 24 |
| Inlet Thread Diameter [mm] | 9.5 |
| Inlet Thread Pitch [mm] | 1 |
| Fits | Ford and Mercury · 20 vehicles |
OE-standard replacement. Built for brake hydraulic service with tested fit and performance.
Floating caliper design. Uses 2 steel pistons for consistent pad contact and braking response.
Service-ready hardware. Includes bracket, slides, bleeder screw, anti-rattle spring, and clips.
Cross-references F57Z 2B120-A, XL2Z 2B120-AB and XL2Z 2B120-BA for the same application. See all 3.
Brake Caliper Overview
This Pagid disc brake caliper is a standard replacement for select Ford, Mercury applications and is built to match OE-level braking requirements. Part number 355801702 is engineered as a floating caliper with a cast iron body and powder-coated gray finish for dependable service.
Key Features
- Standard replacement disc brake caliper for brake hydraulic service
- Floating design with 2 steel pistons
- Cast iron caliper body with powder-coated gray finish
- Mounting bracket, slides, bleeder screw, anti-rattle spring, and abutment clips included
- Mounting bolt included for installation support
- Pad wear sensor not included
Detailed Description
Pagid part number 355801702 is a front right disc brake caliper built for select Ford Ranger, Ford Explorer, and Mercury Mountaineer applications. It uses a 46.00 mm piston diameter and a floating caliper layout to support consistent pad contact and braking response. The cast iron housing, steel pistons, and powder-coated finish provide a service-ready construction for brake system replacement work.
HELLA brake calipers are developed to meet OE standards and are tested for fit and performance across a wide range of European and European-nameplate applications in the US market. This part cross-references Ford and Mercury OE numbers such as F57Z 2B120-A and XL2Z 2B120-AB for the same application.
What It Is Used For
- Restoring braking performance when the caliper is sticking or uneven
- Replacing a leaking or corroded brake caliper assembly
- Correcting brake drag caused by worn slides or piston issues
- Addressing noise from damaged anti-rattle or abutment components
- Servicing a front right brake hydraulic assembly on supported vehicles
Installation Notes
Fits 1999-2002 Ford Ranger, front right, housing assembly. Fits 1999-2001 Ford Explorer, front right, housing assembly. Fits 1999-2001 Mercury Mountaineer, front right, housing assembly. Fits 1995-1998 Ford Explorer, front right. Fits 1995-1998 Ford Ranger, front right. Fits 1997-1998 Mercury Mountaineer, front right.
Verify inlet and bleeder thread specifications before installation. Confirm pad wear sensor requirements, since this caliper does not include a pad wear sensor. Bleeding the brake system after installation is required for proper pedal feel and hydraulic operation.
Quality Assurance
Pagid and HELLA brake calipers are tested to meet OE standards for safety and performance. Part number 355801702 is built for standard replacement service in brake hydraulic applications.
| Year | Make | Model | Submodel | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2002 | Ford | Ranger | XLT | 4.0L | V6 | Front Right | Housing Assembly |
| 2001 | Ford | Explorer | XLS | — | — | Front Right | Housing Assembly |
| 2001 | Ford | Ranger | XLT | 4.0L | V6 | Front Right | Housing Assembly |
| 2001 | Mercury | Mountaineer | Base | 5.0L | V8 | Front Right | Housing Assembly |
| 2000 | Ford | Explorer | XLT | 5.0L | V8 | Front Right | Housing Assembly |
| 2000 | Ford | Ranger | XLT | 4.0L | V6 | Front Right | Housing Assembly |
| 2000 | Mercury | Mountaineer | Base | 5.0L | V8 | Front Right | Housing Assembly |
| 1999 | Ford | Explorer | XLT | 5.0L | V8 | Front Right | Housing Assembly |
| 1999 | Ford | Ranger | XLT | 4.0L | V6 | Front Right | Housing Assembly |
| 1999 | Mercury | Mountaineer | Base | 5.0L | V8 | Front Right | Housing Assembly |
| 1998 | Ford | Explorer | XLT | 5.0L | V8 | Front Right | — |
| 1998 | Ford | Ranger | EV | — | — | Front Right | — |
| 1998 | Mercury | Mountaineer | Base | 5.0L | V8 | Front Right | — |
| 1997 | Ford | Explorer | XLT | 5.0L | V8 | Front Right | — |
| 1997 | Ford | Ranger | XLT | 4.0L | V6 | Front Right | — |
| 1997 | Mercury | Mountaineer | Base | — | — | Front Right | — |
| 1996 | Ford | Explorer | XL | — | — | Front Right | — |
| 1996 | Ford | Ranger | XLT | 4.0L | V6 | Front Right | — |
| 1995 | Ford | Explorer | XLT | — | — | Front Right | — |
| 1995 | Ford | Ranger | XLT | 3.0L | V6 | Front Right | — |
