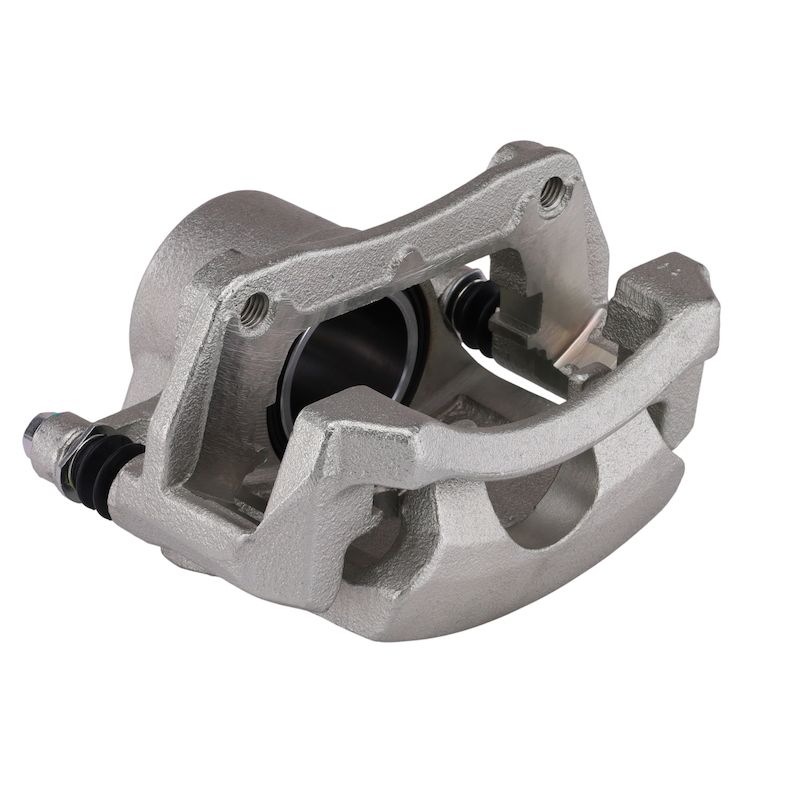

Pagid 355801832 Disc Brake Caliper - Front Left or Front Right
| Brand | Pagid 355801832 |
|---|---|
| Position | Front Left and Front Right |
| Pad Wear Sensor Included | No |
| Mounting Hardware Included | Yes |
| Grade Type | Standard replacement |
| Caliper Casting Material | Cast iron |
| Mounting Bolt Included | Yes |
| Bleeder Screw Included | Yes |
| Anti-Rattle Spring Included | No |
| Caliper Slides Included | Yes |
| Piston Quantity | 1 |
| Caliper Type | Floating |
| Piston Diameter | 60.00 |
| Caliper Color | Gray |
| Abutment Clips Included | Yes |
| Mounting Bracket Included | Yes |
| Piston Material | Steel |
| Bleeder Screw Thread Size | M10 - 1.0 |
| Bleeder Screw Quantity | 1 |
| Caliper Finish | Powder coated |
| Bleeder Screw Thread Diameter [mm] | 9 |
| Bleeder Screw Thread Pitch [mm] | 1 |
| Inlet Thread Diameter [mm] | 8.5 |
| Inlet Thread Pitch [mm] | 1.5 |
| Fits | Chevrolet, Pontiac, and Saturn · 32 vehicles |
OE-standard replacement. Built to meet OE requirements for safety and braking performance.
Floating caliper design. Single-piston construction supports consistent brake actuation.
Powder-coated finish. Gray cast iron housing resists corrosion in service.
Cross-references 22705313 for the same application. See all 1.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Disc Brake Caliper Overview
This Pagid disc brake caliper, part number 355801832, is a standard replacement unit built for specific GM applications. It uses a floating design with a cast iron body and a single 60.00 mm piston for consistent brake actuation.
Compatible With Chevrolet Malibu, Chevrolet HHR, Pontiac G6, Pontiac Solstice, and Saturn Aura applications, this caliper is engineered to meet OE standards and support the braking demands of European and US-market nameplates. Part number 355801832 also cross-references 22705313 for the same application.
Key Features
- Standard replacement disc brake caliper for direct service use
- Floating caliper design with one steel piston
- Cast iron construction with powder-coated gray finish
- Mounting bracket, slides, abutment clips, bleeder screw, and mounting hardware included
- Bleeder screw and inlet thread dimensions specified for proper hydraulic connection
Detailed Description
Pagid 355801832 is a front brake caliper engineered for vehicles that require a floating caliper layout and a 60.00 mm piston. The cast iron housing, steel piston, and powder-coated finish provide a service-ready replacement built around OE-level fit and function. This part number 355801832 is suited for Chevrolet Malibu front left, Chevrolet HHR front left, Pontiac G6 front left, Saturn Sky front left, Pontiac Solstice front right, and Saturn Aura front left applications.
The caliper includes a mounting bracket, caliper slides, abutment clips, bleeder screw, mounting bolt, and hardware, which helps streamline brake service when replacing a worn hydraulic unit. For buyers searching for a Chevrolet Malibu front left brake caliper or a Pontiac G6 front left disc brake caliper, this Pagid unit matches the listed fitment and hydraulic thread specifications.
What It Is Used For
- Restoring brake clamping force when the original caliper is sticking or seized
- Replacing a leaking hydraulic caliper body or damaged piston assembly
- Correcting uneven pad wear caused by worn slides or guide components
- Addressing soft, inconsistent, or reduced braking response from caliper wear
Installation Notes and Tips
Verify the vehicle position, piston size, and hydraulic thread specifications before installation. Bleed the brake system after replacement and inspect pads, rotors, and hoses for wear or damage. Confirm the caliper orientation matches the listed front left or front right application for the specific vehicle.
Quality Assurance
HELLA brake calipers are tested to meet OE standards for safety and performance. Pagid 355801832 is built for the listed applications and validated through extensive product testing for brake-system compliance.
| Year | Make | Model | Submodel | Liters | Cylinders | Fuel Type | Position | Notes |
|---|---|---|---|---|---|---|---|---|
| 2012 | Chevrolet | Malibu | LTZ | 3.6L | V6 | — | Front Left | — |
| 2011 | Chevrolet | HHR | LS | — | — | — | Front Left | — |
| 2011 | Chevrolet | Malibu | LTZ | 3.6L | V6 | — | Front Left | — |
| 2010 | Chevrolet | HHR | LS | — | — | — | Front Left | — |
| 2010 | Chevrolet | Malibu | Hybrid | — | — | — | Front Left | — |
| 2010 | Pontiac | G6 | GT | 3.5L | V6 | GAS | Front Left | — |
| 2010 | Saturn | Sky | Red Line | — | — | — | Front Left | — |
| 2009 | Chevrolet | HHR | LS | — | — | — | Front Left | — |
| 2009 | Chevrolet | Malibu | Hybrid | — | — | — | Front Left | — |
| 2009 | Pontiac | G6 | GXP | — | — | — | Front Left | — |
| 2009 | Pontiac | Solstice | GXP | — | — | — | Front Right | — |
| 2009 | Saturn | Aura | XE | — | — | — | Front Left | — |
| 2009 | Saturn | Sky | Red Line | — | — | — | Front Left | — |
| 2008 | Chevrolet | HHR | LS | — | — | — | Front Left | — |
| 2008 | Chevrolet | Malibu | Hybrid | — | — | — | Front Left | — |
| 2008 | Pontiac | G6 | GXP | — | — | — | Front Left | — |
| 2008 | Pontiac | Solstice | GXP | — | — | — | Front Right | — |
| 2008 | Saturn | Aura | XR | — | — | — | Front Left | — |
| 2008 | Saturn | Sky | Red Line | — | — | — | Front Left | — |
| 2007 | Chevrolet | HHR | LS | — | — | — | Front Left | — |
| 2007 | Chevrolet | Malibu | SS | — | — | — | Front Left | — |
| 2007 | Pontiac | G6 | GTP | — | — | — | Front Left | — |
| 2007 | Pontiac | Solstice | GXP | — | — | — | Front Right | — |
| 2007 | Saturn | Aura | XR | — | — | — | Front Left | — |
| 2007 | Saturn | Sky | Red Line | — | — | — | Front Left | — |
| 2006 | Chevrolet | HHR | LS | — | — | — | Front Left | — |
| 2006 | Chevrolet | Malibu | SS | — | — | — | Front Left | — |
| 2006 | Pontiac | G6 | GTP | — | — | — | Front Left | — |
| 2006 | Pontiac | Solstice | Base | — | — | — | Front Right | — |
| 2005 | Chevrolet | Malibu | Maxx LT | — | — | — | Front Left | — |
| 2005 | Pontiac | G6 | Base | — | — | — | Front Left | — |
| 2004 | Chevrolet | Malibu | Maxx | — | — | — | Front Left | — |
