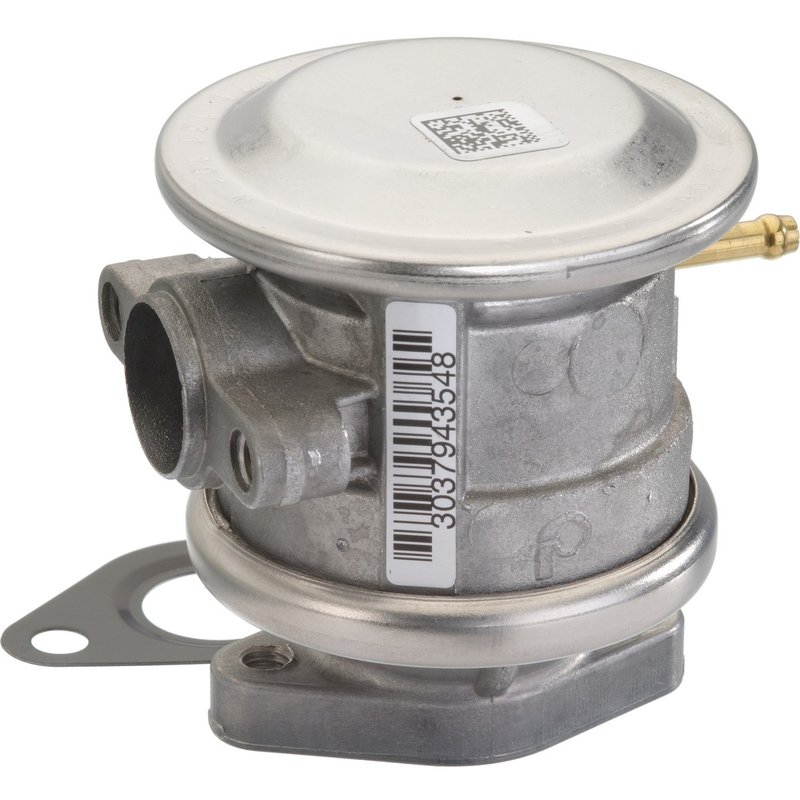

Pierburg 7.06714.24.0 Secondary Air Injection Control Valve
| Brand | Pierburg 7.06714.24.0 |
|---|---|
| Operating Mode | Pneumatic |
| Supplementary Article/Supplementary Info | With gasket / seal |
| Valve type | Shut-off valve |
| Product line | Genuine OE from HELLA |
| Fits | Audi and Lamborghini · 23 vehicles |
OE-grade fit. Direct replacement style for secondary air injection service.
Pneumatic shut-off valve. Controls fresh air flow with precise exhaust system operation.
Seal included. Helps support a cleaner, more secure installation interface.
Cross-references 07L 131 101 F, 07L 131 101 M and 07L 131 101 N for the same application. See all 10.
Secondary Air Injection Control Valve
Pierburg Secondary Air Injection Control Valve 7.06714.24.0 regulates fresh air flow into the exhaust system during cold starts. It is built as a pneumatic shut-off valve with a seal included, and it follows OE-grade fitment standards for direct replacement service.
Key Features
- Pneumatic operating mode for controlled air injection.
- Shut-off valve design for precise exhaust air routing.
- Includes gasket/seal for sealing at the installation point.
- OE-grade fit and plug-and-play style replacement.
- Genuine OE from HELLA product line.
Detailed Description
This Pierburg secondary air injection control valve, part number 7.06714.24.0, is used to manage the flow of fresh air into the exhaust stream so the system can reach cleaner operation sooner after startup. The pneumatic shut-off design helps control when air is admitted, supporting reduced emissions and stable engine behavior during cold operation. It is a strong fitment match for Audi R8 applications, including 2009-2012, 2014-2015, 2016, 2017-2018, 2020, and 2021 models, and it also fits Audi RS5 and Lamborghini Aventador applications listed in the fitment data. This part cross-references OE numbers 07L 131 101 F and 07L 131 101 M for the same application.
What It Is Used For
- Restoring secondary air injection control when emissions faults are present.
- Correcting delayed or inconsistent cold-start air delivery.
- Addressing rough cold-start engine behavior tied to air injection control.
- Replacing a leaking or sticking shut-off valve in the air injection system.
- Resolving OE-number-matched service needs on listed Audi and Lamborghini applications.
Installation Notes and Tips
Install as a pneumatic shut-off valve in the secondary air injection system and verify the seal surfaces are clean before assembly. Confirm the OE number and fitment notes against the vehicle application before ordering. Part number 7.06714.24.0 is listed with OE-number-specific applications, so matching the existing reference number is important for correct selection.
Quality Assurance
Genuine OE from HELLA indicates OE-level sourcing and application alignment for this Pierburg valve. The part number 7.06714.24.0 is supported by fitment data for Audi R8, Audi RS5, and Lamborghini Aventador applications.
| Year | Make | Model | Liters | Cylinders | Fuel Type | Notes |
|---|---|---|---|---|---|---|
| 2021 | Audi | R8 | 5.2L | V10 | GAS | Pneumatic Shut Off Valve; Genuine OE from HELLA |
| 2020 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101N; Genuine OE from HELLA |
| 2018 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2018 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2017 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2017 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2016 | Audi | R8 | 5.2L | V10 | — | Pneumatic Shut Off Valve; Genuine OE from HELLA |
| 2016 | Audi | RS5 | 4.2L | V8 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2016 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2015 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2015 | Audi | RS5 | 4.2L | V8 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2015 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2014 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2014 | Audi | RS5 | 4.2L | V8 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2014 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2013 | Audi | RS5 | 4.2L | V8 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2013 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2012 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2012 | Lamborghini | Aventador | 6.5L | V12 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2011 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2011 | Audi | RS5 | 4.2L | V8 | — | Shut-Off Valve/Non-Return Valve - Pneumatic - with Seal; Genuine OE from HELLA |
| 2010 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
| 2009 | Audi | R8 | 5.2L | V10 | — | With OE No. 07L131101M; Genuine OE from HELLA |
