Home› Engine > Cylinder Block Components› Pioneer Cables 501116 Engine Oil Pan
Pioneer Cables 501116 Engine Oil PanOE Quality 60-Day Returns
Part #: 501116

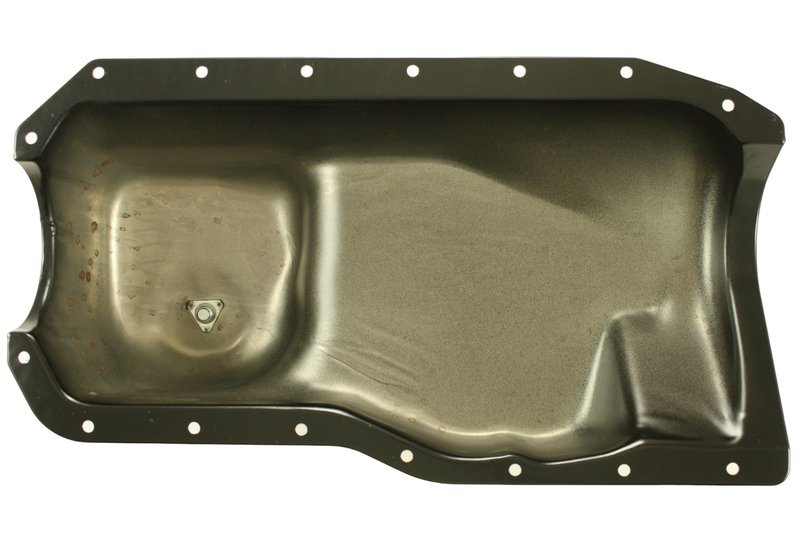

Pioneer Cables 501116 Engine Oil Pan

117 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$204.19Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
Fitment: Buick, Chevrolet, GMC, Jeep, Oldsmobile, and Pontiac, 6000, Astro, Camaro, Celebrity, Century, Citation, Citation II, CJ5, CJ7, Cutlass Ciera, Cutlass Cruiser, Fiero, Firebird, Monza, Omega, Phoenix, S10, S10 Blazer, S15, S15 Jimmy, Safari, Scrambler, Skylark, Sonoma, Starfire, and Sunbird
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Engine Oil Pan options

OE Replacement Oil Pan for GM and Jeep Applications

Pioneer Cables 501116 is an engine oil pan built as an OE replacement for a wide range of GM and Jeep vehicles. It is formed to original design specifications with the correct oil capacity and baffle layout for the application, and it includes a replacement drain plug for serviceable sealing.

Key Features

  • OE-style engine oil pan for factory-fit replacement
  • Heavy-gauge construction for added durability
  • Application-specific oil capacity and internal baffles
  • Powdercoated finish on originally painted parts for corrosion resistance
  • Includes replacement drain plug
  • Cross-references Spectra Premium GMP29A for the same application

Detailed Description

This Pioneer Cables oil pan, part number 501116, is designed for direct replacement on vehicles such as the Chevrolet S10, GMC Sonoma, Chevrolet Camaro, Pontiac Firebird, and Jeep CJ7. It follows the original pan design so the sump shape, capacity, and baffle arrangement match the vehicle’s requirements. The heavy-gauge material helps maintain form and sealing integrity during service, while the powdercoated finish on painted applications adds long-term surface protection. If you are replacing a damaged or leaking pan on a Chevrolet S10 or GMC Sonoma, 501116 provides a factory-style solution without changing the original engine layout.

Common Problems This Part Can Address

  • Oil leaks from a rusted, dented, or cracked pan
  • Damaged drain plug threads or a stripped drain plug
  • Poor sealing at the oil pan rail
  • Oil loss caused by impact damage from road debris
  • Replacement after corrosion on older GM and Jeep engines

Installation Notes and Tips

Drain the engine oil before removal and inspect the pan rail, gasket surface, and drain plug threads before installation. Clean all mating surfaces thoroughly and verify that the replacement pan matches the original shape and mounting pattern for your application. Confirm fitment for your specific Chevrolet S10, GMC Sonoma, Camaro, Firebird, or Jeep CJ7 engine configuration before installation.

Quality Assurance

Pioneer Cables manufactures this oil pan as an OE replacement alternative using heavy-gauge materials and application-specific design details. The part number 501116 is built to meet the original pan’s functional requirements for fit, capacity, and baffle configuration.

This part fits 117 vehicles. Search below:

YearMakeModelLitersCylindersFuel TypePositionNotes
1993ChevroletS102.5LL4GASN/A
1993GMCSonoma2.5LL4GASN/A
1992ChevroletS102.5LL4GASN/A
1992GMCSonoma2.5LL4GASN/A
1991ChevroletS102.5LL4GASN/A
1991GMCSonoma2.5LL4GASN/A
1990ChevroletAstro2.5LL4GASN/A
1990ChevroletS102.5LL4GASN/A
1990GMCS152.5LL4GASN/A
1990GMCSafari2.5LL4GASN/A
1989ChevroletAstro2.5LL4GASN/A
1989ChevroletS102.5LL4GASN/A
1989GMCS152.5LL4N/A
1989GMCSafari2.5LL4GASN/A
1988ChevroletAstro2.5LL4GASN/A
1988ChevroletS102.5LL4GASN/A
1988ChevroletS10 Blazer2.5LL4GASN/A
1988GMCS152.5LL4N/A
1988GMCS15 Jimmy2.5LL4GASN/A
1988GMCSafari2.5LL4GASN/A
1987BuickCentury2.5LL4GASN/A
1987ChevroletAstro2.5LL4GASN/A
1987ChevroletCelebrity2.5LL4GASN/A
1987ChevroletS102.5LL4GASN/A
1987ChevroletS10 Blazer2.5LL4GASN/A
1987GMCS152.5LL4N/A
1987GMCS15 Jimmy2.5LL4GASN/A
1987GMCSafari2.5LL4GASN/A
1987OldsmobileCutlass Ciera2.5LL4GASN/A
1987OldsmobileCutlass Cruiser2.5LL4GASN/A
1987Pontiac60002.5LL4GASN/A
1987PontiacFiero2.5LL4GASN/A
1986BuickCentury2.5LL4GASN/A
1986ChevroletAstro2.5LL4GASN/A
1986ChevroletCamaro2.5LL4GASN/A
1986ChevroletCelebrity2.5LL4GASN/A
1986ChevroletS102.5LL4GASN/A
1986ChevroletS10 Blazer2.5LL4GASN/A
1986GMCS152.5LL4GASN/A
1986GMCS15 Jimmy2.5LL4GASN/A
1986GMCSafari2.5LL4GASN/A
1986OldsmobileCutlass Ciera2.5LL4GASN/A
1986Pontiac60002.5LL4GASN/A
1986PontiacFiero2.5LL4GASN/A
1986PontiacFirebird2.5LL4GASN/A
1985BuickCentury2.5LL4GASN/A
1985BuickSkylark2.5LL4GASN/A
1985ChevroletAstro2.5LL4GASN/A
1985ChevroletCamaro2.5LL4GASN/A
1985ChevroletCelebrity2.5LL4GASN/A
1985ChevroletCitation II2.5LL4GASN/A
1985ChevroletS102.5LL4GASN/A
1985ChevroletS10 Blazer2.5LL4GASN/A
1985GMCS152.5LL4GASN/A
1985GMCS15 Jimmy2.5LL4GASN/A
1985GMCSafari2.5LL4GASN/A
1985OldsmobileCutlass Ciera2.5LL4GASN/A
1985Pontiac60002.5LL4GASN/A
1985PontiacFiero2.5LL4GASN/A
1985PontiacFirebird2.5LL4GASN/A
1984BuickCentury2.5LL4GASN/A
1984BuickSkylark2.5LL4GASN/A
1984ChevroletCamaro2.5LL4GASN/A
1984ChevroletCelebrity2.5LL4GASN/A
1984ChevroletCitation II2.5LL4GASN/A
1984OldsmobileCutlass Ciera2.5LL4GASN/A
1984OldsmobileOmega2.5LL4GASN/A
1984Pontiac60002.5LL4GASN/A
1984PontiacFiero2.5LL4GASN/A
1984PontiacFirebird2.5LL4GASN/A
1984PontiacPhoenix2.5LL4GASN/A
1983BuickCentury2.5LL4GASN/A
1983BuickSkylark2.5LL4GASN/A
1983ChevroletCamaro2.5LL4GASN/A
1983ChevroletCelebrity2.5LL4GASN/A
1983ChevroletCitation2.5LL4GASN/A
1983JeepCJ52.5LL4GASN/A
1983JeepCJ72.5LL4GASN/A
1983JeepScrambler2.5LL4GASN/A
1983OldsmobileCutlass Ciera2.5LL4GASN/A
1983OldsmobileOmega2.5LL4GASN/A
1983Pontiac60002.5LL4GASN/A
1983PontiacFirebird2.5LL4GASN/A
1983PontiacPhoenix2.5LL4GASN/A
1982BuickCentury2.5LL4GASN/A
1982BuickSkylark2.5LL4GASN/A
1982ChevroletCamaro2.5LL4GASN/A
1982ChevroletCelebrity2.5LL4GASN/A
1982ChevroletCitation2.5LL4GASN/A
1982JeepCJ52.5LL4GASN/A
1982JeepCJ72.5LL4GASN/A
1982JeepScrambler2.5LL4GASN/A
1982OldsmobileCutlass Ciera2.5LL4GASN/A
1982OldsmobileOmega2.5LL4GASN/A
1982Pontiac60002.5LL4GASN/A
1982PontiacFirebird2.5LL4GASN/A
1982PontiacPhoenix2.5LL4GASN/A
1981BuickSkylark2.5LL4GASN/A
1981ChevroletCitation2.5LL4GASN/A
1981JeepCJ52.5LL4GASN/A
1981JeepCJ72.5LL4GASN/A
1981JeepScrambler2.5LL4GASN/A
1981OldsmobileOmega2.5LL4GASN/A
1981PontiacPhoenix2.5LL4GASN/A
1980BuickSkylark2.5LL4GASN/A
1980ChevroletCitation2.5LL4GASN/A
1980ChevroletMonza2.5LL4GASN/A
1980JeepCJ52.5LL4GASN/A
1980JeepCJ72.5LL4GASN/A
1980OldsmobileOmega2.5LL4GASN/A
1980OldsmobileStarfire2.5LL4GASN/A
1980PontiacPhoenix2.5LL4GASN/A
1980PontiacSunbird2.5LL4GASN/A
1979ChevroletMonza2.5LL4GASN/A
1979OldsmobileStarfire2.5LL4GASN/A
1979PontiacSunbird2.5LL4GASN/A
1978ChevroletMonza2.5LL4GASN/A

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

100446832002831264162311468GMP29ATW6762B

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
