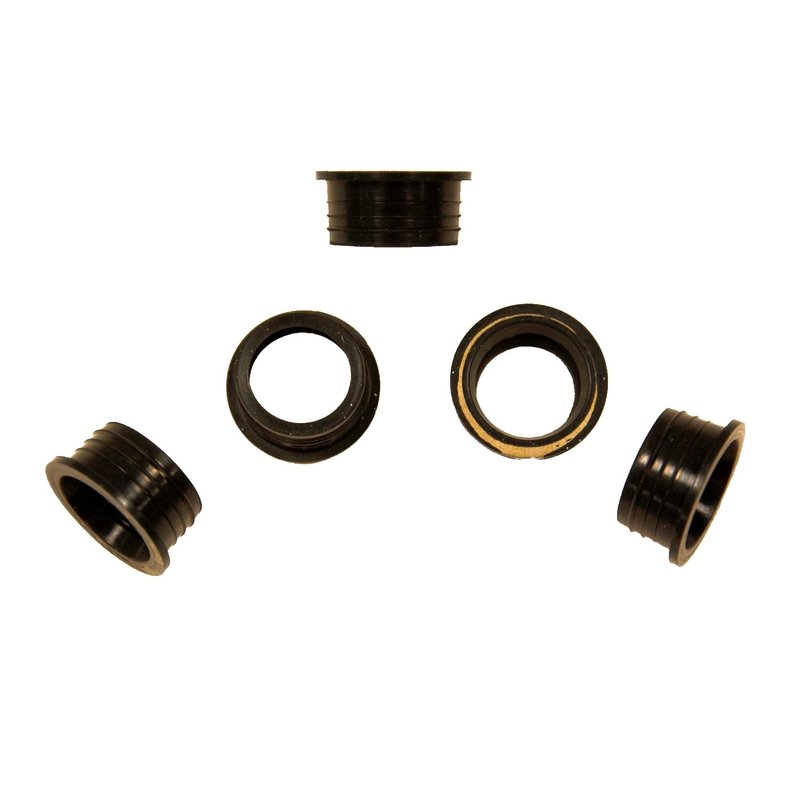

Pioneer Cables 760013 Automatic Transmission Detent Cable Seal

Automatic Transmission Detent Cable Seal

Pioneer Cables 760013 is an automatic transmission detent cable seal made for exact-fit replacement in a wide range of GM and related applications. With precise dimensions and OE-style sealing geometry, it helps restore a secure seal at the detent control cable, throttle valve cable, or top hat boot interface.

Built to match the original service part, this seal supports clean transmission operation on vehicles such as Chevrolet Impala, Pontiac Grand Prix, Buick Regal, and many others across 1979-2006 applications.

Key Features

• Exact-fit replacement from Pioneer Transmission Components
• Automatic transmission detent cable seal for sealing the cable entry point
• Inside diameter: 0.625 in.
• Thickness: 0.4375 in.
• Outside diameter: 0.8125 in.
• OE-style fit for a broad range of GM passenger cars, trucks, and vans
• This part cross-references Bosch (e.g., 13581, 17154) for the same application.

Detailed Description

Pioneer Cables 760013 is engineered as a direct replacement automatic transmission detent cable seal for vehicles using the detent control cable, throttle valve cable, or top hat boot seal arrangement. The listed dimensions help ensure proper seating and sealing at the transmission case opening, which is important for maintaining a clean, secure interface around the cable passage. This part number is commonly searched for fitment on Chevrolet Impala, Pontiac Grand Prix, and Buick Regal applications, along with many Buick, Cadillac, Chevrolet, GMC, Oldsmobile, and Pontiac models. If you are replacing a worn or leaking transmission cable seal, 760013 provides a service-ready option for a wide range of 1979-2006 vehicles.

What This Part Helps Address

• Transmission fluid seepage around the detent cable or throttle valve cable opening
• Worn, hardened, or flattened cable seal material
• Loose sealing at the transmission case entry point
• Contamination entering the cable passage area
• Service replacement during transmission cable or seal repair

Installation Notes and Tips

Verify the transmission family and application notes before installation, especially on vehicles with specific fitment restrictions such as THM400, 4L60-E, TH200, THM200, or 4T60 variants. Confirm the seal dimensions against the original part and inspect the cable housing and case bore for wear, scoring, or debris before assembly. For best results, install on a clean surface and ensure the seal seats evenly without distortion.

Quality Assurance

Pioneer Transmission Components are exact-fit replacement parts built for service applications where OE-style fit and sealing matter. Part number 760013 is manufactured to match the original replacement intent for the listed vehicles and transmission configurations.
