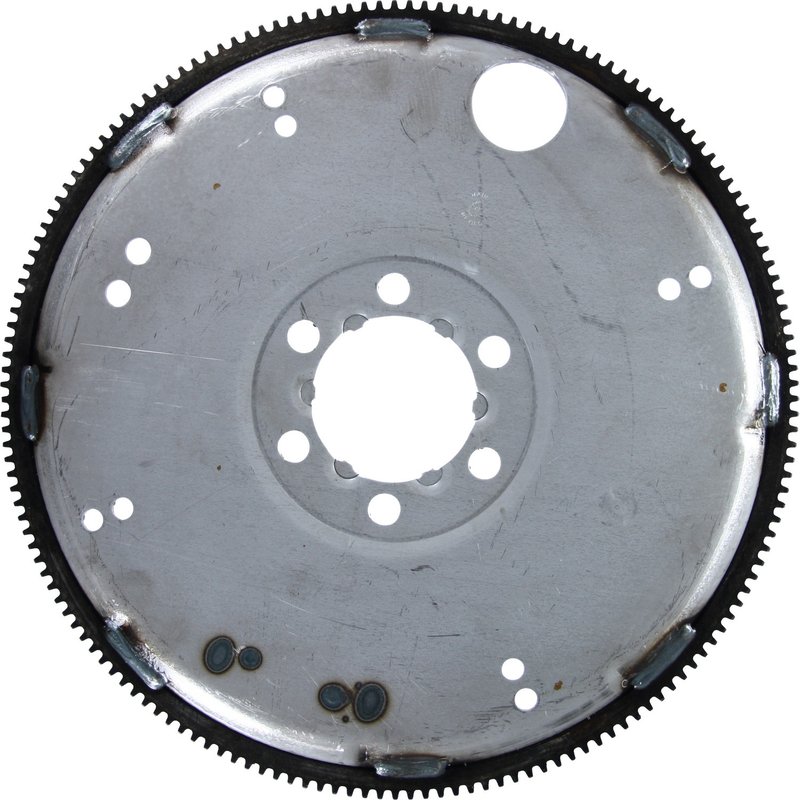

Pioneer Cables FRA-118 Automatic Transmission Flexplate

Overview of Pioneer Cables FRA-118 Flexplate

The Pioneer Cables FRA-118 is a precision-engineered automatic transmission flexplate designed for select Jeep models. This flexplate ensures reliable power transfer between the engine and transmission, specifically compatible with Jeep Cherokee, CJ5, CJ7, Comanche, Grand Wagoneer, J10, J20, Scrambler, Wagoneer, and Wrangler vehicles.

• Outside diameter: 13.813 inches
• Tooth quantity: 164 teeth
• Mounting hole diameter: 11.25 inches
• Diameter: 1.151 inches (350.838 mm)
• Pitch flywheels: Compatible with 12 to 14 pitch flywheels
• Not SFI approved and does not include SFI certification sticker

Detailed Product Description

The FRA-118 flexplate from Pioneer Cables is manufactured to meet the specific dimensional requirements of various Jeep models, including the Cherokee, CJ5, CJ7, Comanche, Grand Wagoneer, J10, J20, Scrambler, Wagoneer, and Wrangler. With an outside diameter of 13.813 inches and 164 teeth, this flexplate is designed to mesh precisely with 12 to 14 pitch flywheels, ensuring smooth engagement and power transmission. The mounting hole diameter of 11.25 inches allows for secure attachment to the crankshaft, maintaining proper alignment and balance during operation. The 1.151-inch diameter (350.838 mm) specification further confirms its compatibility with the intended applications. While this flexplate is not SFI approved, it is engineered for durability and consistent performance in automatic transmission systems.

Applications and Problem Solving

• Replaces worn or damaged flexplates in Jeep Cherokee and Wrangler automatic transmissions
• Addresses issues with flexplate tooth wear or missing teeth that cause starter engagement problems
• Resolves mounting hole deformation that can lead to vibration or misalignment
• Corrects flexplate diameter mismatches that affect flywheel compatibility
• Prevents transmission input shaft damage caused by faulty flexplates

Installation Notes and Tips

• Verify compatibility with your specific Jeep model and transmission before installation
• Inspect the flywheel and starter ring gear for wear or damage prior to flexplate replacement
• Use proper torque specifications when securing the flexplate to avoid warping or loosening
• Ensure the flexplate teeth align correctly with the starter motor for reliable engine starting
• Consult a professional mechanic if unsure about installation procedures

Quality Assurance and Warranty

Pioneer Cables manufactures the FRA-118 flexplate with attention to dimensional accuracy and material quality to meet OEM standards for Jeep vehicles. Although this part is not SFI certified, it undergoes quality control inspections to ensure fit and function. Warranty details should be confirmed with the distributor or manufacturer, as coverage may vary.
