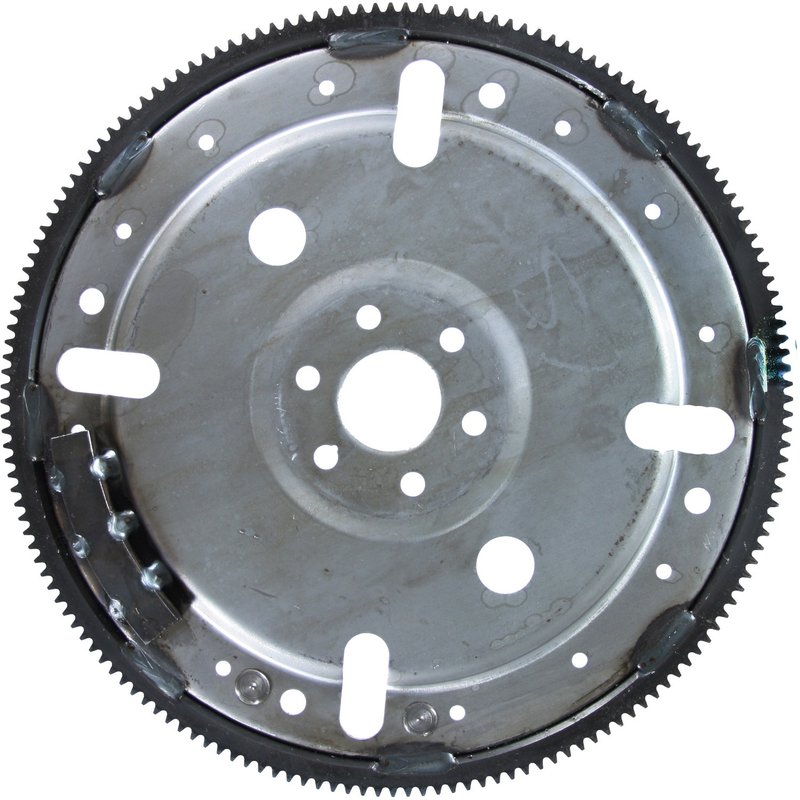

Pioneer Cables FRA-225 Automatic Transmission Flexplate

Overview of Pioneer Cables FRA-225 Automatic Transmission Flexplate

The Pioneer Cables FRA-225 is a precision-engineered automatic transmission flexplate designed for select Ford and Mercury vehicles. This flexplate is compatible with models such as the Ford Mustang, Capri, LTD, and Mercury Marquis, ensuring reliable performance in your transmission system.

• Outside diameter: 14.25 inches
• Tooth quantity: 164 teeth
• Mounting hole diameter: 11.5 mm
• Diameter: 1.188 inches (30.18 mm)
• Pitch flywheels: 12
• SFI approved: No
• SFI certification sticker included: No

Detailed Product Description

The FRA-225 flexplate from Pioneer Cables features a 14.25-inch outside diameter and 164 teeth, designed to mesh precisely with the starter motor for smooth engine engagement. The mounting hole diameter of 11.5 mm ensures secure attachment to the crankshaft flange. With a diameter of 1.188 inches (approximately 30.18 mm), this flexplate is engineered to maintain proper alignment and balance within the automatic transmission system. The 12 pitch flywheels specification aligns with the flywheel design of compatible Ford and Mercury models, including the Mustang, Capri, LTD, and Marquis.

Compatible Vehicles and Applications

This automatic transmission flexplate is specifically compatible with the following vehicles:

• Ford Mustang
• Ford Capri
• Ford LTD
• Mercury Marquis

Using the correct flexplate like the Pioneer Cables FRA-225 ensures proper transmission function and engine starting performance in these models.

Common Issues Addressed by the FRA-225 Flexplate

• Starter engagement problems due to worn or damaged flexplate teeth
• Vibration or imbalance in the transmission system caused by a warped flexplate
• Transmission noise related to flexplate misalignment
• Crankshaft mounting issues from incorrect hole diameter or flexplate size
• Failure to properly transfer engine torque to the transmission

Installation Notes and Tips

• Ensure the mounting surface and crankshaft flange are clean and free of debris before installation
• Verify the tooth count and pitch match the starter motor and flywheel specifications
• Torque mounting bolts to manufacturer specifications to avoid flexplate warping
• Inspect the flexplate for any damage or defects prior to installation
• Use thread locker on mounting bolts if recommended by the vehicle manufacturer

Quality Assurance and Warranty Information

The Pioneer Cables FRA-225 flexplate is manufactured to meet industry standards for durability and fitment accuracy. While this product is not SFI approved and does not include an SFI certification sticker, it is designed to provide reliable service in compatible Ford and Mercury automatic transmission applications. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
