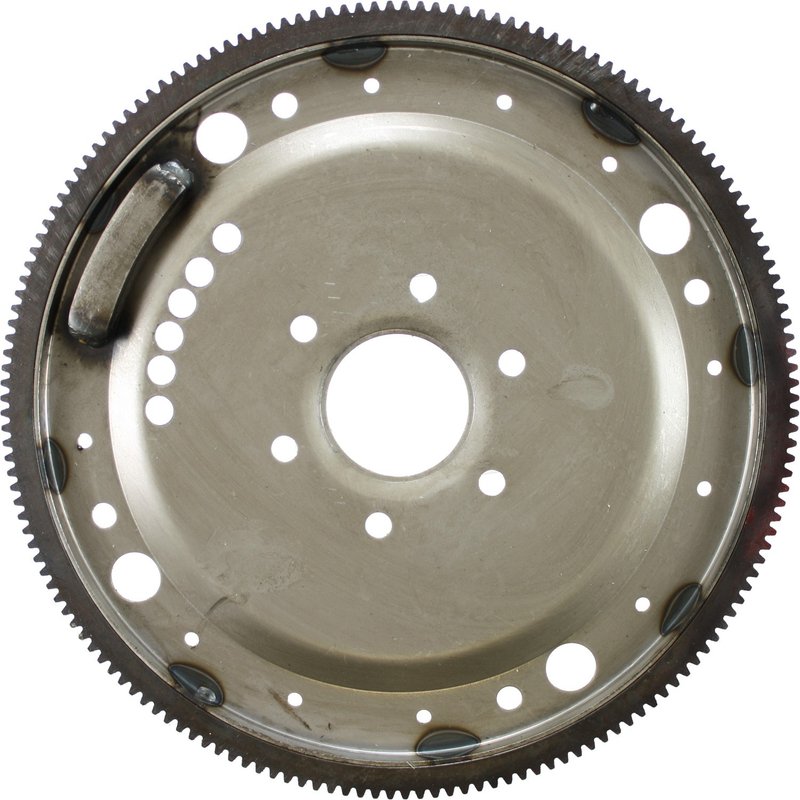

Pioneer Cables FRA-230 Automatic Transmission Flexplate

Overview of Pioneer Cables FRA-230 Flexplate

The Pioneer Cables FRA-230 is an automatic transmission flexplate designed specifically for select Ford vehicles. Engineered to meet precise specifications, this flexplate ensures reliable performance for models such as the Ford E-100 Econoline and F-150.

• Outside diameter: 14.25 inches (336.55 mm)
• Tooth quantity: 164 teeth
• Mounting hole diameter: 11.5 mm
• Pitch flywheels: 12
• Diameter: 1.188 inches
• Compatible with multiple Ford Econoline and F-Series models
• Part number: FRA-230

Detailed Specifications and Compatibility

The FRA-230 flexplate from Pioneer Cables features a 14.25-inch outside diameter and 164 teeth, designed to mesh accurately with the starter motor and flywheel assembly. The mounting hole diameter of 11.5 mm ensures a secure fit on the crankshaft flange. This flexplate is compatible with a range of Ford vehicles including the E-100 Econoline, E-250 Econoline Club Wagon, F-100, F-150, F-250 HD, and Thunderbird models. Its 12-pitch flywheel design supports smooth torque transfer in automatic transmissions.

Applications and Problem Resolution

This automatic transmission flexplate is used to connect the engine’s crankshaft to the torque converter, facilitating power transfer in automatic transmission systems. It addresses several common issues:

• Worn or damaged flexplate teeth causing starter engagement problems
• Cracks or warping leading to vibration or transmission noise
• Improper fitment resulting in misalignment of the torque converter
• Flexplate failure causing transmission slippage or engine stalling

Installation Notes and Tips

When installing the Pioneer Cables FRA-230 flexplate, ensure the mounting surface is clean and free of debris. Verify the tooth count and pitch match the vehicle’s starter and flywheel specifications. Torque mounting bolts to manufacturer specifications to prevent loosening or warping. It is recommended to inspect the torque converter and starter for wear during installation to avoid future issues.

Quality Assurance and Warranty

The Pioneer Cables FRA-230 flexplate is manufactured to meet OEM standards for durability and fitment. While this product is not SFI approved and does not include an SFI certification sticker, it is engineered for reliable service in compatible Ford vehicles. Warranty details should be confirmed with the distributor or manufacturer to ensure coverage terms.
