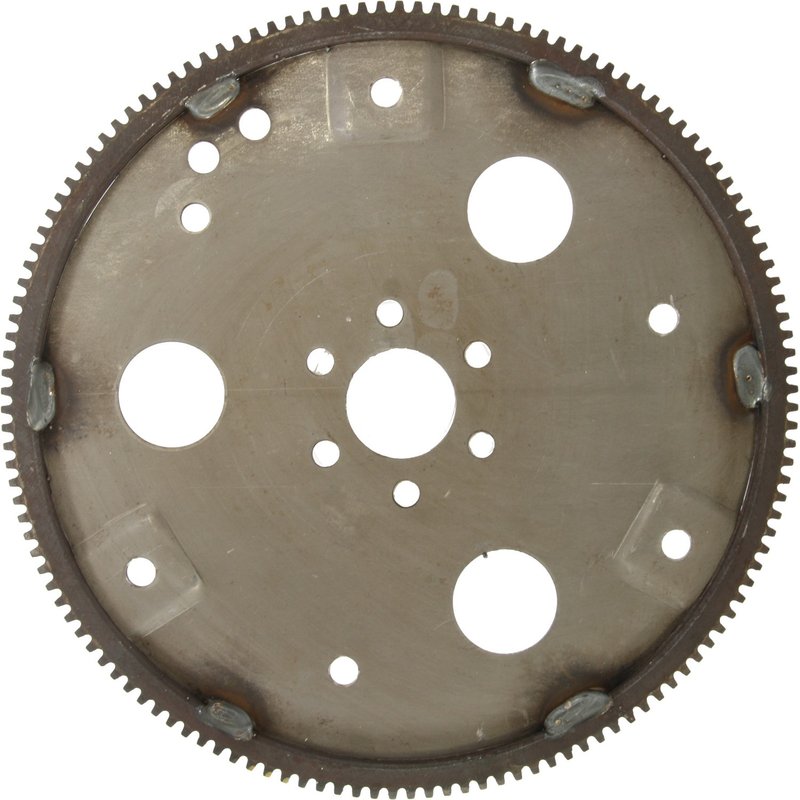

Pioneer Cables FRA-534 Automatic Transmission Flexplate
| Brand | Pioneer Cables FRA-534 |
|---|---|
| Outside Diameter | 11.313 |
| Tooth Quantity | 135 |
| Diameter (in) | 0.943 |
| Diameter (mm) | 287.375 |
| Pitch Flywheels | 12 to 14 |
| SFI Approved | N |
| SFI Certification Sticker Included | N |
| Teeth | 135 |
| Fits | Chevrolet · 8 vehicles |
OEM-level replacement. Built to original dimensions for a precise fit and restored performance.
High-grade steel. Automated welding adds strength and consistency to the flexplate.
Precision balanced. Factory-spec balancing helps deliver smooth operation.
Cross-references Pioneer Automotive Industries FRA-534 for the same application. See all 1.
Pioneer Cables FRA-534 Flexplate Overview
The Pioneer Cables FRA-534 is an automatic transmission flexplate built to restore OEM-level performance in the drivetrain. It is made from high-grade steel, formed to original dimensions, and precision balanced to factory specifications for consistent operation in the Chevrolet Aveo and Chevrolet Aveo5 applications listed below.
Key Features
- Automatic transmission flexplate for OE-style replacement use
- High-grade steel construction for strength and durability
- Automated welding process for consistent weld quality
- Precision balanced to factory specifications
- 11.313-inch outside diameter
- 135 teeth / 135-tooth ring gear
- 0.943-inch diameter, 287.375 mm diameter
- Pitch flywheels: 12 to 14
Detailed Product Description
Pioneer Cables FRA-534 flexplate is engineered for automatic transmission service where correct tooth count, diameter, and balance are critical. The 135-tooth design and 11.313-inch outside diameter support proper starter engagement and drivetrain alignment, while the factory-spec balancing helps maintain smooth operation. This part number, FRA-534, is listed for 2004-2008 Chevrolet Aveo and 2006-2008 Chevrolet Aveo5 applications.
This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
Common Issues This Part Can Address
- Cracked or warped flexplate surfaces
- Damaged ring gear teeth affecting starter engagement
- Noise from an out-of-balance flexplate
- Drivetrain vibration related to flexplate wear
- Replacement needs after transmission service or engine repair
Installation Notes and Tips
Verify tooth count, outside diameter, and pitch before installation to confirm the correct match for your vehicle. Inspect the starter drive, crankshaft flange, and related mounting surfaces for wear or damage during service. Proper torque procedures and alignment checks are important when installing a flexplate in automatic transmission applications.
Quality Assurance
Pioneer Cables builds this flexplate from original dimensions using automated welding and factory-spec balancing to support consistent fit and operation. The FRA-534 is not SFI approved and does not include an SFI certification sticker.
- Fits 2004-2008 Chevrolet Aveo
- Fits 2006-2008 Chevrolet Aveo5
| Year | Make | Model | Drive Type | Liters | Cylinders | Notes |
|---|---|---|---|---|---|---|
| 2008 | Chevrolet | Aveo | FWD | 1.6L | L4 | — |
| 2008 | Chevrolet | Aveo5 | FWD | 1.6L | L4 | — |
| 2007 | Chevrolet | Aveo | FWD | 1.6L | L4 | — |
| 2007 | Chevrolet | Aveo5 | FWD | 1.6L | L4 | — |
| 2006 | Chevrolet | Aveo | FWD | 1.6L | L4 | — |
| 2006 | Chevrolet | Aveo5 | FWD | 1.6L | L4 | — |
| 2005 | Chevrolet | Aveo | FWD | 1.6L | L4 | — |
| 2004 | Chevrolet | Aveo | FWD | 1.6L | L4 | — |
