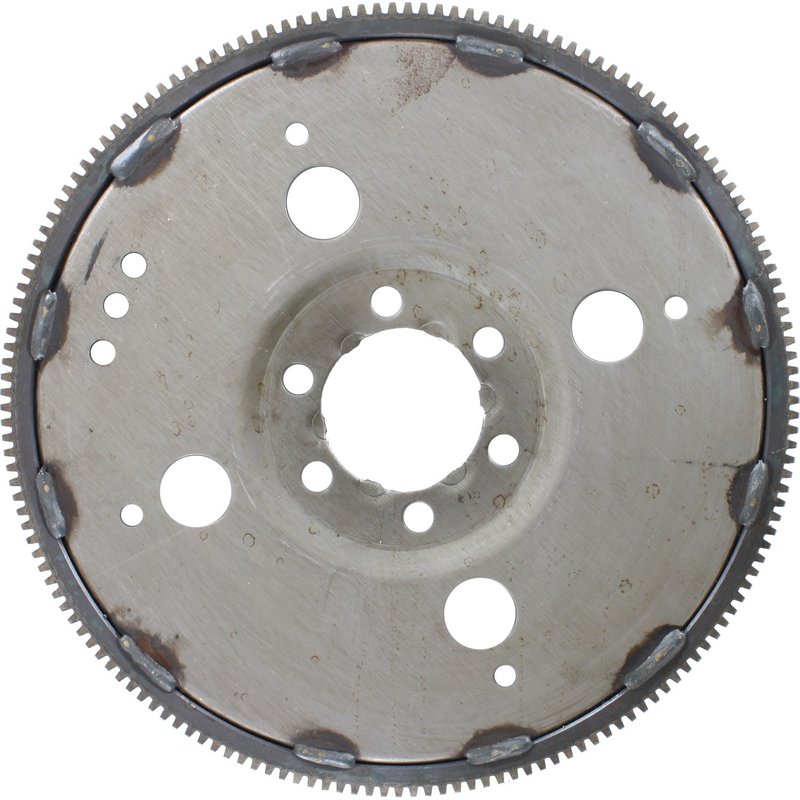

Pioneer Cables FRA-535 Automatic Transmission Flexplate

Pioneer Cables FRA-535 Flexplate Overview

The Pioneer Cables FRA-535 is an automatic transmission flexplate built to restore OEM-level performance in supported Jeep applications. It is made from high-grade steel, formed to original dimensions, welded with an automated process for consistent strength, and precision balanced to factory specifications.

Compatible with 1997-2002 Jeep TJ and Wrangler, and 1999-2004 Jeep Grand Cherokee applications that use a 164-tooth, 13.81-inch outer diameter flexplate.

Key Features

• Part number: FRA-535
• Automatic transmission flexplate for Jeep applications
• 164 teeth with a 13.813-inch outside diameter
• 6 mounting holes with 10.0 mm mounting hole diameter
• Built from high-grade steel for dimensional accuracy
• Automated welding process for consistent structural integrity
• Precision balanced to factory specifications
• Pitch range: 12 to 14 flywheels
• Cross-reference part numbers include 4091002 and 52104410AA

Detailed Description

The FRA-535 flexplate is engineered as a direct replacement for automatic transmission setups that require the specified tooth count, bolt pattern, and diameter. Its 164-tooth design and 13.813-inch outside diameter support proper starter engagement and drivetrain alignment in the listed Jeep Grand Cherokee, TJ, and Wrangler applications. The part number FRA-535 is also referenced under OE-style interchange numbers for the same application family.

This flexplate is built to original dimensions and balanced to factory specs to help maintain smooth operation in the torque converter and crankshaft interface. For buyers searching for a Jeep Grand Cherokee flexplate, Jeep Wrangler flexplate, or Jeep TJ automatic transmission flexplate, FRA-535 provides a specification-matched replacement option.

What It Helps Fix

• Cracked or warped flexplate surfaces
• Starter engagement issues caused by worn or incorrect tooth count
• Vibration from an out-of-balance flexplate
• Noise from damaged mounting holes or distorted bolt patterns
• Drivetrain fitment problems from incorrect diameter or tooth count

Installation Notes and Tips

Verify tooth count, outside diameter, mounting hole quantity, and mounting hole diameter before installation. Confirm the vehicle uses a 164-tooth flexplate with a 13.81-inch outer diameter and 6 mounting holes. Check starter alignment, crankshaft flange condition, and torque converter bolt pattern during installation to ensure proper fitment on the Jeep TJ, Wrangler, or Grand Cherokee application.

Quality Assurance

Pioneer Cables manufactures this flexplate using high-grade steel, automated welding, and precision balancing to factory specifications. The design is intended to restore OEM-level performance in the listed applications and support consistent operation in automatic transmission use.
