Pioneer Cables FRA-560HD Automatic Transmission FlexplateOE Quality 60-Day Returns

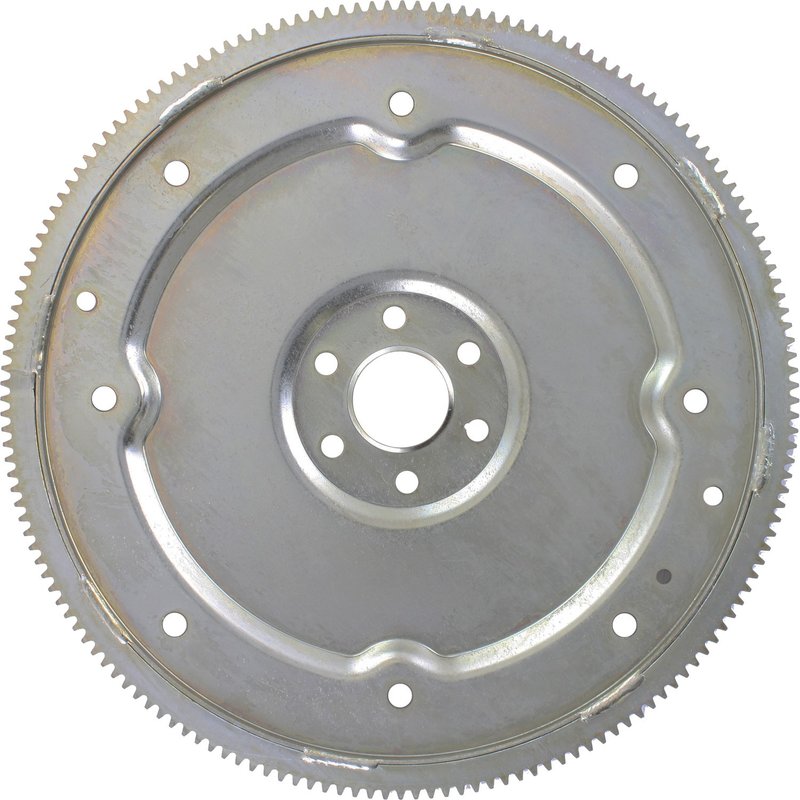

Pioneer Cables FRA-560HD Automatic Transmission Flexplate - view 1
Pioneer Cables FRA-560HD Automatic Transmission Flexplate - view 2
Pioneer Cables FRA-560HD Automatic Transmission Flexplate - view 3
Part #: FRA-560HD

Pioneer Cables FRA-560HD Automatic Transmission Flexplate

⚙️ 130 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$147.80Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
🔥
✅ In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
✅OE Direct Replacement — Bolt-on fit, no modifications needed
🚗Fitment: Ford, Lincoln, and Mercury, E-150, E-250, Town Car, Crown Victoria, F-150, Grand Marquis, E-150 Club Wagon, Expedition, F-150 Heritage, Mustang, Marauder, E-150 Econoline, E-150 Econoline Club Wagon, F-250, Mark VIII, Thunderbird, and Cougar
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Automatic Transmission Flexplate options

Reliable Automatic Transmission Flexplate for Ford, Lincoln, and Mercury

The Pioneer Cables FRA-560HD automatic transmission flexplate is engineered to meet the specific requirements of various Ford, Lincoln, and Mercury vehicles. Designed with precision, this flexplate ensures proper engagement and smooth operation for models like the Ford F-150, Lincoln Town Car, and Mercury Cougar.

  • Outside diameter: 14.234 inches
  • Tooth quantity: 164 teeth
  • Diameter: 1.186 inches (379.413 mm)
  • Compatible with pitch flywheels sized 12 to 14
  • Designed for automatic transmissions
  • Compatible with multiple Ford, Lincoln, and Mercury models

Detailed Product Description

The FRA-560HD flexplate from Pioneer Cables is manufactured to precise specifications, featuring 164 teeth and an outside diameter of 14.234 inches. This flexplate is designed to work with pitch flywheels ranging from 12 to 14, making it suitable for a range of automatic transmission applications. Its diameter of 1.186 inches (379.413 mm) ensures proper fitment and reliable performance. This part is compatible with popular vehicles such as the Ford Mustang, Crown Victoria, E-150 Econoline, Lincoln Mark VIII, and Mercury Marauder, among others.

Common Applications and Problem Solving

  • Replacement for worn or damaged flexplates causing transmission engagement issues
  • Fixes vibration or noise problems related to flexplate tooth damage
  • Resolves starter ring gear misalignment in Ford F-150 and Lincoln Town Car models
  • Addresses flexplate cracks or warping in Mercury Cougar and Ford E-250 vehicles
  • Ensures smooth torque transfer between engine and transmission

Installation Notes and Tips

  • Verify tooth count and diameter match your vehicle’s specifications before installation
  • Inspect the flywheel and starter ring gear for wear during replacement
  • Use proper torque specifications when securing the flexplate to avoid warping
  • Ensure alignment with the crankshaft and transmission input shaft for optimal performance

Quality Assurance and Warranty

The Pioneer Cables FRA-560HD flexplate is manufactured to meet industry standards for durability and fitment. While this part is not SFI approved and does not include an SFI certification sticker, it is designed to provide reliable service in compatible Ford, Lincoln, and Mercury vehicles. Warranty details should be confirmed with the distributor or manufacturer at the time of purchase.

BrandPioneer Cables
Part NumberFRA-560HD
Diameter (in)1.186
Diameter (mm)379.413
Outside Diameter14.234
Pitch Flywheels12 To 14
Teeth164
Tooth Quantity164

This part fits 130 vehicles. Search below:

YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersFuel TypePositionNotes
2014FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2014FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2013FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2013FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2012FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2012FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2011FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2011FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2011LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2010FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2010FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2010FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2010FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2010LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2010MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2009FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2009FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2009FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2009FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2009LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2009MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2008FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2008FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2008FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2008FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; Triton (Romeo) Engine; 6 Bolt Pattern
2008LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2008MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2007FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2007FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2007FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2007FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2007LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2007MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2006FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2006FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2006FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2006FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; Triton (Romeo) Engine; 6 Bolt Pattern
2006LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2006MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2005FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2005FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2005FordE-150 Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2005FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2005FordF-150XLTRWDAutomatic4.6LV8GASN/AOuter Diameter: 14.25"
2005LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2005MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004FordE-150 Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2004FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2004FordF-150 Heritage4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2004FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2004MercuryMarauder4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003FordE-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003FordE-150 Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003FordE-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2003FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version; 6 Flywheel Bolt Attaching Holes
2003FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2003MercuryMarauder4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002FordE-150 Econoline4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002FordE-150 Econoline Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2002MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001FordE-150 Econoline4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001FordE-150 Econoline Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2001MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000FordE-150 Econoline4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000FordE-150 Econoline Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
2000MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999FordE-150 Econoline4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999FordE-150 Econoline Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999FordF-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"
1999FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1999MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998FordE-150 Econoline4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"
1998FordE-150 Econoline Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998FordF-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"
1998FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998LincolnMark VIII4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1998MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordE-150 Econoline4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordE-150 Econoline Club Wagon4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordExpedition4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordF-1504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordF-2504.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"
1997FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997FordThunderbird4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997LincolnMark VIII4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997MercuryCougar4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1997MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996FordCrown Victoria4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996FordMustang4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996FordThunderbird4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996LincolnMark VIII4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996LincolnTown Car4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996MercuryCougar4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version
1996MercuryGrand Marquis4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; 6 Bolt Pattern; HD Version
1995LincolnMark VIII4.6LV8N/AImproved Heavy Duty; Teeth: 164; Outer Diameter: 14.25"; HD Version

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.

Related Articles
