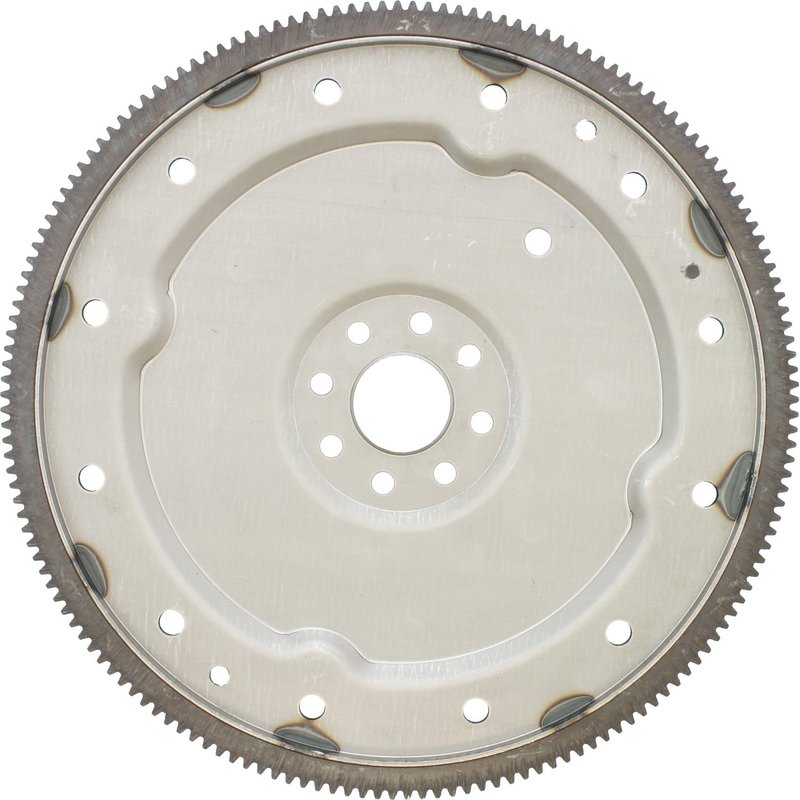

Pioneer Cables FRA-562 Automatic Transmission Flexplate

Overview of Pioneer Cables FRA-562 Automatic Transmission Flexplate

The Pioneer Cables FRA-562 is a precision-engineered automatic transmission flexplate designed for select Ford, Lincoln, and Mercury vehicles. This flexplate ensures reliable connection between the engine and transmission, supporting smooth power transfer in models like the Ford F-150 and Lincoln Navigator.

• Outside diameter: 14.234 inches
• Mounting hole quantity: 8
• Tooth quantity: 164
• Mounting hole diameter: 11.5 mm
• Diameter: 1.186 inches (379.413 mm)
• Compatible with pitch flywheels sized 12 to 14
• Not SFI approved and does not include SFI certification sticker

Detailed Product Description

The FRA-562 flexplate from Pioneer Cables is engineered to meet the specifications required for automatic transmissions in various Ford, Lincoln, and Mercury vehicles. With an outside diameter of 14.234 inches and 164 teeth, this flexplate is designed to mesh precisely with compatible flywheels featuring a pitch size between 12 and 14. The 8 mounting holes, each with an 11.5 mm diameter, provide secure attachment to the crankshaft, ensuring stable operation under normal driving conditions. The 1.186-inch thickness contributes to the structural integrity needed for reliable torque transfer.

Compatible Vehicles and Applications

This automatic transmission flexplate is compatible with a range of Ford, Lincoln, and Mercury models, including but not limited to:

• Ford Crown Victoria
• Ford E-150, E-150 Club Wagon, E-150 Econoline, E-150 Econoline Club Wagon
• Ford E-250, E-250 Econoline
• Ford E-350 Club Wagon, E-350 Econoline, E-350 Econoline Club Wagon, E-350 Super Duty
• Ford Expedition, F-150, F-150 Heritage, F-250, F-250 Super Duty, F-350 Super Duty
• Lincoln Grand Marquis, Mark LT, Navigator

Common Issues Addressed by the FRA-562 Flexplate

• Worn or damaged flexplate teeth causing starter engagement problems
• Cracks or warping leading to vibration or transmission noise
• Loose or damaged mounting holes affecting flexplate stability
• Flexplate failure resulting in transmission slippage or power loss
• Replacement for OEM flexplates that no longer meet performance standards

Installation Notes and Tips

• Ensure the flexplate matches the vehicle’s flywheel pitch (12 to 14) before installation
• Verify the 8 mounting holes align correctly with the crankshaft flange
• Use proper torque specifications to avoid warping or loosening
• Inspect the starter ring gear teeth for damage during installation
• Consult vehicle service manual for transmission removal and installation procedures

Quality Assurance and Warranty

The Pioneer Cables FRA-562 flexplate is manufactured to meet industry standards for durability and fitment. While this part is not SFI approved and does not include an SFI certification sticker, it is designed to provide reliable service in compatible Ford, Lincoln, and Mercury vehicles. Warranty coverage details should be confirmed with the point of purchase or manufacturer documentation.
