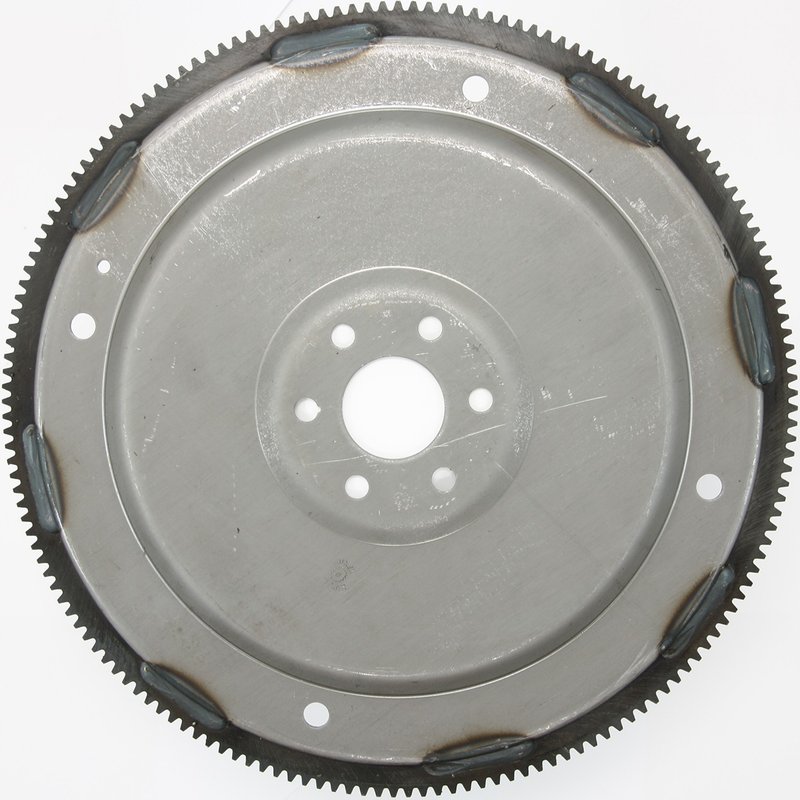

Pioneer Cables FRA-566 Automatic Transmission Flexplate

Brand Pioneer Cables FRA-566
Outside Diameter 14.25
Tooth Quantity 164
Mounting Hole Diameter 11.4375
Diameter (in) 1.188
Diameter (mm) 336.55
Pitch Flywheels 12 to 14
SFI Approved N
SFI Certification Sticker Included N
Teeth 164
Fits Ford and Mercury · 33 vehicles

OE-level replacement. Built to original dimensions for a direct-fit flexplate.

High-grade steel. Automated welding adds strength and consistency.

Factory-balanced. Precision balancing helps restore smooth OEM performance.

Cross-references 6L2Z6375AA for the same application. See all 1.

$87.50Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $87.50
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Automatic Transmission Flexplate options

Pioneer Cables FRA-566 Flexplate Overview

The Pioneer Cables FRA-566 automatic transmission flexplate is a direct replacement for select Ford and Mercury applications that require a 164-tooth, 14.25-inch flexplate. Built from high-grade steel and precision balanced to factory specifications, it restores the original fit and rotational consistency needed for smooth drivetrain operation.

Fits 2006-2010 Ford Explorer, N/A; Fits 2007-2010 Ford Explorer Sport Trac, N/A; Fits 2006-2010 Mercury Mountaineer, N/A.

  • 164 teeth for the listed OE-style applications
  • 14.25-inch outside diameter
  • 11.4375-inch mounting hole diameter
  • Built from high-grade steel for strength and consistency
  • Automated welding process for uniform construction
  • Precision balanced to factory specifications
  • Interchange reference: 6L2Z6375AA

Detailed Fitment and Function

The FRA-566 is an automatic transmission flexplate for vehicles that use the specified 164-tooth pattern and 11.4375-inch bolt circle. It is engineered to match original dimensions, helping maintain proper starter engagement and crankshaft-to-transmission interface on the Ford Explorer, Ford Explorer Sport Trac, and Mercury Mountaineer listed above. If you are replacing a worn or damaged flexplate on a 2006-2010 Ford Explorer or 2006-2010 Mercury Mountaineer, this part number provides the dimensional match needed for the application.

Common Problems This Part Addresses

  • Cracked or warped flexplate surfaces
  • Starter engagement issues caused by worn teeth
  • Vibration from an out-of-balance flexplate
  • Noise from damaged or fatigued flexplate material
  • Fitment issues when replacing an incorrect OE-style flexplate

Installation Notes and Tips

Verify tooth count, outside diameter, and bolt circle diameter before installation. Confirm the transmission and engine combination matches the listed application, especially when servicing a Ford Explorer, Ford Explorer Sport Trac, or Mercury Mountaineer. Inspect the starter ring gear area, crankshaft flange, and related fasteners for wear or damage before installing the new flexplate.

Quality Assurance

Pioneer Cables manufactures this flexplate as an OE-style replacement using original dimensions, automated welding, and factory-spec balancing to support consistent performance in the listed applications. Part number FRA-566 is built to restore the dimensional and balance characteristics expected for this fitment.

Related reading

This part fits 33 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypeTransmissionLitersCylindersFuel TypeNotes
2010FordExplorer———4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2010FordExplorer Sport TracXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2010FordExplorer Sport TracLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2010MercuryMountaineerPremier——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2009FordExplorerXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2009FordExplorerLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2009FordExplorerEddie Bauer——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2009FordExplorer Sport TracXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2009FordExplorer Sport TracLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2009MercuryMountaineerPremier——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2008FordExplorerXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2008FordExplorerLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2008FordExplorerEddie Bauer——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2008FordExplorer Sport TracXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2008FordExplorer Sport TracLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2008MercuryMountaineerPremier——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2007FordExplorerXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2007FordExplorerLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2007FordExplorerEddie Bauer——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2007FordExplorer Sport TracXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2007FordExplorer Sport TracLimited——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2007MercuryMountaineerPremier——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerLimitedRWD—4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerEddie BauerRWD—4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerLimited4WD—4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerEddie Bauer4WD—4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerXLT——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerLimitedRWDAutomatic4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerEddie BauerRWDAutomatic4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerLimited4WDAutomatic4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006FordExplorerEddie Bauer4WDAutomatic4.6LV8GASTeeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006MercuryMountaineerPremier——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
2006MercuryMountaineerLuxury——4.6LV8—Teeth: 164; Outer Diameter: 14.250"; Bolt Circle Diameter: 11.4375"
Directly replaces or cross-references 1 part number
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
6L2Z6375AA
