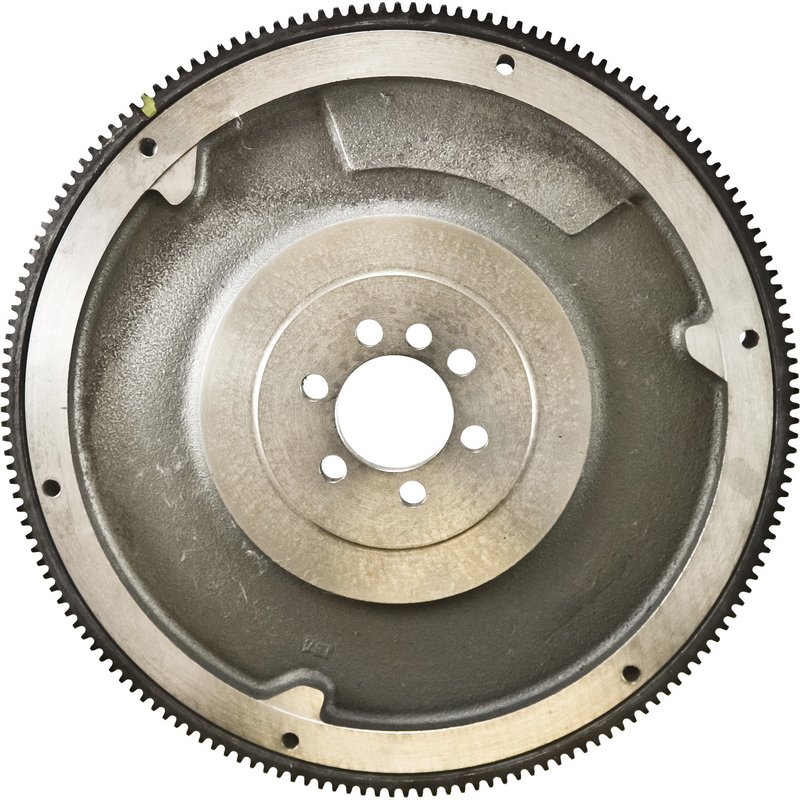

Pioneer Cables FW-109 Clutch Flywheel

Overview of Pioneer Cables FW-109 Clutch Flywheel

The Pioneer Cables FW-109 clutch flywheel is engineered for reliable performance in Chevrolet and GMC trucks and SUVs. Designed with precise specifications, this flywheel supports smooth clutch engagement and optimal transmission function for a range of models including the Chevrolet Blazer and GMC Sierra series.

• Thickness at teeth: 0.468 inches for durability and proper gear meshing
• Tooth quantity: 168 teeth ensuring accurate starter engagement
• Inside diameter: 2.045 inches for correct fitment on compatible crankshafts
• Outside diameter: 14.13 inches matching OEM dimensions

Technical Specifications and Compatibility

The FW-109 clutch flywheel features a 0.468-inch thickness at the teeth, providing the necessary strength to withstand repeated starter motor engagement without premature wear. With 168 teeth, it ensures consistent and reliable starter gear meshing. The inside diameter of 2.045 inches and outside diameter of 14.13 inches are designed to match factory specifications for a precise fit. This flywheel is compatible with a wide range of Chevrolet and GMC vehicles, including models such as the Astro, Blazer, C10, C1500, K5 Blazer, S10, Tahoe, Yukon, and various Suburban and pickup truck variants.

Applications and Problem Resolution

This clutch flywheel is intended for use in transmission systems where a direct replacement or upgrade is required. It addresses several common issues:

• Starter gear slipping or failure due to worn teeth
• Vibration or noise caused by uneven flywheel thickness
• Improper clutch engagement resulting from incorrect flywheel dimensions
• Transmission shifting difficulties linked to flywheel wear

Installation Notes and Tips

When installing the Pioneer Cables FW-109 flywheel, ensure the mating surfaces are clean and free of debris. Verify the flywheel’s tooth count and dimensions against the vehicle’s specifications to confirm compatibility. Torque all mounting bolts to manufacturer-recommended settings to prevent warping or loosening. It is advisable to inspect the clutch assembly and starter motor components during installation for any signs of wear.

Quality Assurance and Warranty

Pioneer Cables manufactures the FW-109 clutch flywheel to meet industry standards for durability and performance. Each unit undergoes quality control inspections to ensure dimensional accuracy and material integrity. While specific warranty details are not provided, Pioneer Cables products typically come with a limited warranty against manufacturing defects. Consult product documentation or contact the manufacturer for exact warranty terms.
