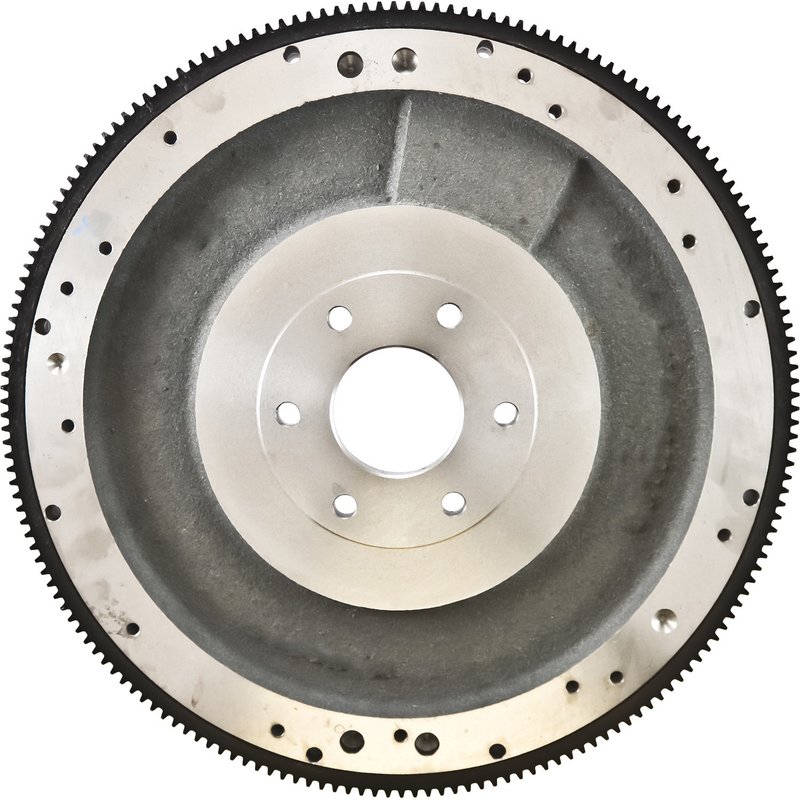

Pioneer Cables FW-114 Clutch Flywheel

Overview of Pioneer Cables FW-114 Clutch Flywheel

The Pioneer Cables FW-114 clutch flywheel is engineered for reliable performance in select Ford trucks and vans. Designed to meet specific fitment requirements, this flywheel supports smooth clutch operation and drivetrain efficiency for vehicles like the Ford E-250 Econoline Club Wagon and F-350.

• Thickness at teeth: 0.462 inches for precise engagement
• Tooth quantity: 180 teeth ensuring compatibility with starter motors
• Inside diameter: 2.488 inches for proper fit on crankshaft
• Outside diameter: 15.5 inches matching OEM specifications
• Compatible with multiple Ford models including E-250 Econoline Club Wagon, E-350 Econoline, and F-250

Technical Details and Specifications

The FW-114 clutch flywheel features a 0.462-inch thickness at the teeth, which is critical for maintaining correct starter gear engagement and minimizing wear. With 180 teeth, it aligns precisely with the starter motor’s pinion gear, ensuring reliable engine starts. The inside diameter of 2.488 inches allows for a secure fit on the crankshaft flange, while the 15.5-inch outside diameter matches the original equipment dimensions for proper clutch assembly alignment. This flywheel is designed specifically for Ford trucks and vans, including the E-250 Econoline Club Wagon, E-350 Econoline, and F-350 models, providing a direct replacement option that meets factory standards.

Compatible Vehicles and Applications

This clutch flywheel is compatible with the following Ford vehicles:

• Ford E-250 Econoline Club Wagon
• Ford E-350 Econoline
• Ford E-350 Econoline Club Wagon
• Ford F-250
• Ford F-350

It is intended for use in transmission systems requiring a clutch flywheel with the specified dimensions and tooth count, ensuring proper engagement and clutch function.

Common Issues Addressed by FW-114 Clutch Flywheel

• Starter gear slipping or failure due to worn flywheel teeth
• Clutch chatter or uneven engagement caused by incorrect flywheel thickness
• Vibration or noise from misaligned flywheel dimensions
• Difficulty in clutch pedal operation related to flywheel wear
• Replacement of damaged or warped flywheels in Ford E-250 and F-350 models

Installation Notes and Tips

When installing the Pioneer Cables FW-114 clutch flywheel, ensure the following:

• Verify the flywheel matches the vehicle’s OEM specifications, including tooth count and diameters
• Inspect the crankshaft flange and starter motor pinion for wear before installation
• Use proper torque specifications to secure the flywheel to avoid warping
• Check clutch components for wear and replace if necessary during flywheel installation
• Balance the flywheel if required to prevent drivetrain vibrations

Quality Assurance and Warranty

Pioneer Cables manufactures the FW-114 clutch flywheel to meet industry standards for durability and fitment. While specific warranty details are not provided, the product is designed to comply with OEM quality requirements for Ford transmission components. Proper installation and maintenance will help ensure long service life and reliable clutch performance.
