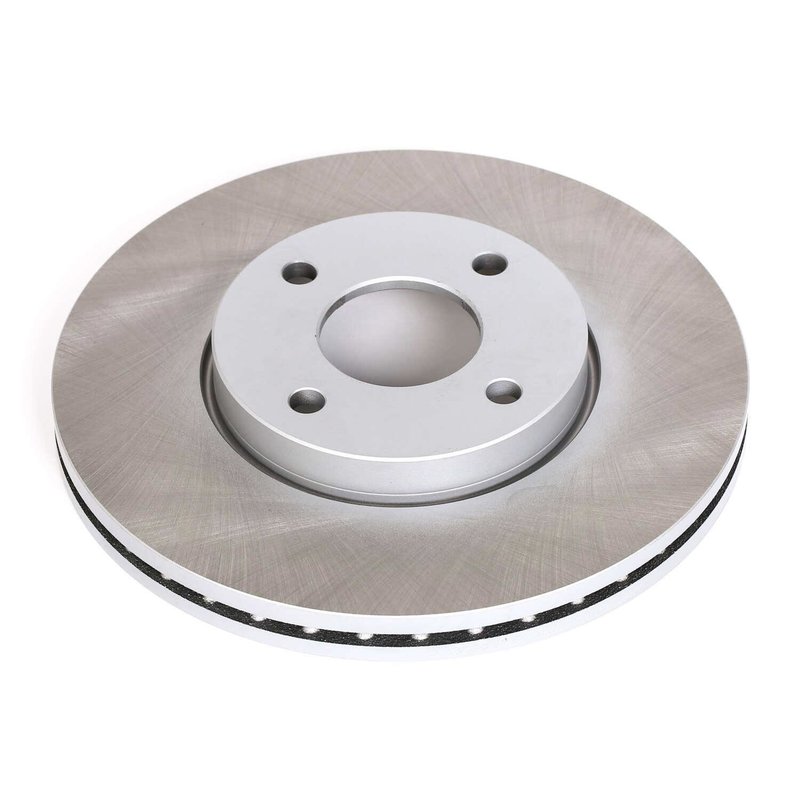

PowerStop AR8170SCR Disc Brake Rotor - Front
| Brand | PowerStop AR8170SCR |
|---|---|
| Position | Front |
| Discard Thickness | 0.91 |
| Discard Thickness | 23.00 |
| Nominal Thickness | 0.98 |
| Nominal Thickness | 25.00 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.77 |
| Overall Height | 45.00 |
| Outside Diameter | 10.94 |
| Outside Diameter | 278.00 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 108.00 |
| Mounting Bolt Hole Circle Diameter | 4.25 |
| Stud/Lug Hole Quantity | 4 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Ford · 3 vehicles |
OE-style replacement. Direct bolt-on design matches original equipment specifications for straightforward service.
Corrosion-resistant coating. Silver epoxy protects exposed areas and helps preserve a clean wheel-well appearance.
Vented full cast rotor. Smooth surface and mill-balanced construction support consistent braking performance.
Cross-references 4S4Z 1125-A, 4S4Z 1125-AA and 7S4Z 1125-A for the same application. See all 4.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Overview
The PowerStop AR8170SCR is a coated disc brake rotor built as a direct bolt-on replacement for the original equipment part. It is made for drivers who want OE-style fitment, corrosion protection, and a clean appearance behind alloy wheels.
Compatible with the Ford Focus front brake application for 2005-2007 models, this rotor matches original equipment performance and specifications, including weight and vane count. The AR8170SCR is a practical choice for restoring braking performance while maintaining a factory-style fit.
Key Features
- Part number AR8170SCR
- Part of the PowerStop coated hat and edge rotor line
- Silver epoxy coating on corrosion-prone areas
- Vented, full cast construction with a smooth surface
- Mill balanced for consistent rotor quality
- Direct bolt-on replacement with OE-style specifications
Detailed Description
PowerStop AR8170SCR is engineered as a front brake rotor for the Ford Focus, 2005-2007. The vented design helps support heat management during braking, while the full cast construction and smooth surface provide a factory-style replacement profile. The coated hat, outer edge, and vanes are treated with a silver epoxy finish to resist corrosion and help preserve appearance in wheel openings where the rotor is visible.
This rotor is designed to match original equipment dimensions and performance targets, including overall size, thickness, and vane count. If you are replacing worn or rusted front rotors on a Ford Focus, AR8170SCR offers a straightforward OE-style solution. This part cross-references Ford OE numbers (e.g., 4S4Z 1125-A, 7S6Z1125A) for the same application.
What It Helps Address
- Brake pulsation caused by worn rotor surfaces
- Visible rust on the hat, edge, or internal vanes
- Reduced braking consistency from rotor wear
- Factory-style replacement needs for a Ford Focus front brake service
- Rotor fitment concerns when matching OE dimensions
Installation Notes and Tips
Fits 2005-2007 Ford Focus, front. Verify rotor dimensions, bolt circle, and hub fitment before installation. Clean the hub mounting surface thoroughly to help prevent runout-related issues and ensure proper seating. The AR8170SCR is a direct replacement rotor, so installation follows standard brake service procedures for the vehicle.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment. The coated surfaces add corrosion resistance in exposed areas, supporting long-term appearance and serviceability.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2007 | Ford | Focus | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2006 | Ford | Focus | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2005 | Ford | Focus | Front | PowerStop - Front Coated Hat and Edge Rotor |
