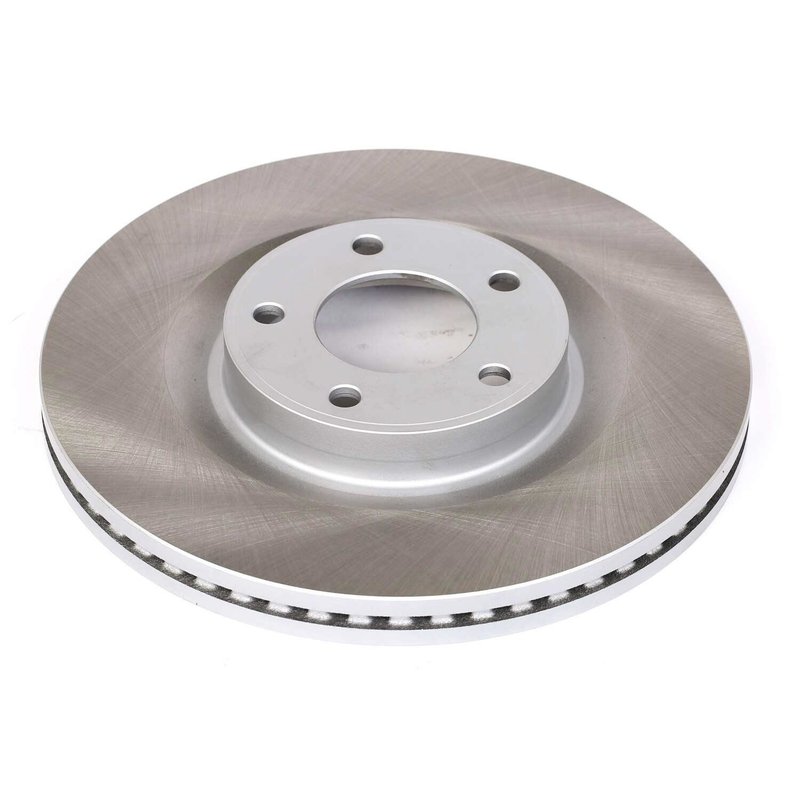

PowerStop AR8190SCR Disc Brake Rotor - Front
OE Quality 60-Day Returns
PowerStop
 PowerStop - Front Coated Hat and Edge Rotor

PowerStop AR8190SCR Disc Brake Rotor - Front

Brand PowerStop AR8190SCR
Position Front
Discard Thickness 1.02
Discard Thickness 26.00
Nominal Thickness 1.10
Nominal Thickness 28.00
Balancing Type Mill balanced
Construction Full cast
Rust Resistant Coating Yes
Overall Height 1.90
Overall Height 48.30
Outside Diameter 12.60
Outside Diameter 320.00
ABS Tone Ring Included No
Surface Type Smooth
Solid Or Vented Type Rotor Vented
Mounting Bolt Hole Circle Diameter 114.30
Mounting Bolt Hole Circle Diameter 4.50
Stud/Lug Hole Quantity 5
Product line PowerStop - Front Coated Hat and Edge Rotor
Fits Ford and Lincoln · 17 vehicles

OE-style replacement. Direct bolt-on brake rotor built to match original equipment specifications.

Corrosion-resistant coating. Silver epoxy protects the hat, edge, and vanes from rust.

Vented full cast design. Engineered for OE-style brake service and consistent fitment.

Cross-references 7T4Z 1125-A and 7U2Z1V125ED for the same application. See all 2.

$111.49Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $111.49
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Overview

PowerStop AR8190SCR is a coated disc brake rotor built as a direct bolt-on replacement for original equipment. It is engineered for drivers who want OE-style fitment, vented construction, and corrosion protection in one brake rotor.

Compatible with Ford Edge and Lincoln MKX front brake applications, this rotor matches original equipment performance and specifications, including weight and vane count. The AR8190SCR is a practical choice for restoring braking performance while helping preserve a clean appearance behind alloy wheels.

Key Features

  • Partially coated rotor with silver epoxy on corrosion-prone areas
  • Coated hat, outer edge, and vanes help resist rust
  • Vented, full cast construction for OE-style brake service
  • Mill balanced for consistent operation
  • Smooth surface finish for a clean braking contact area

Detailed Description

The PowerStop Front Coated Hat and Edge Rotor line focuses on direct replacement rotors that follow original equipment dimensions and design targets. This AR8190SCR rotor uses a rust-resistant coating on the hat, outer edge, and internal vanes to help slow corrosion in exposed areas, while the vented full cast design supports the same general fit and function expected from the factory-style part. For Ford Edge and Lincoln MKX owners, that means a rotor built to match the application without changing the vehicle’s brake layout.

PowerStop AR8190SCR is also cross-referenced to Ford OE part numbers 7T4Z 1125-A and 7U2Z1V125ED for the same application.

What It Helps Address

  • Brake rotor corrosion on exposed metal surfaces
  • Uneven appearance behind alloy wheels
  • Factory rotor wear that calls for replacement
  • Loss of OE-style braking feel from worn rotors
  • Fitment issues caused by non-matching rotor dimensions

Installation Notes

Install as a direct bolt-on replacement for the specified front brake applications. Verify rotor diameter, bolt circle, and thickness before installation. The rotor is vented and mill balanced, and it does not include an ABS tone ring.

Quality Assurance

PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for confirmed application fitment.

Related reading

This part fits 17 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2015LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2014FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2014LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2013FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2013LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2012FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2012LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2011FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2011LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2010FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2010LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2009FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2009LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2008FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2008LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
2007FordEdgeFrontPowerStop - Front Coated Hat and Edge Rotor
2007LincolnMKXFrontPowerStop - Front Coated Hat and Edge Rotor
Directly replaces or cross-references 2 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
7T4Z 1125-A7U2Z1V125ED
