Will it fit your vehicle?
Confirm before you buy. Free return shipping if it doesn't fit.

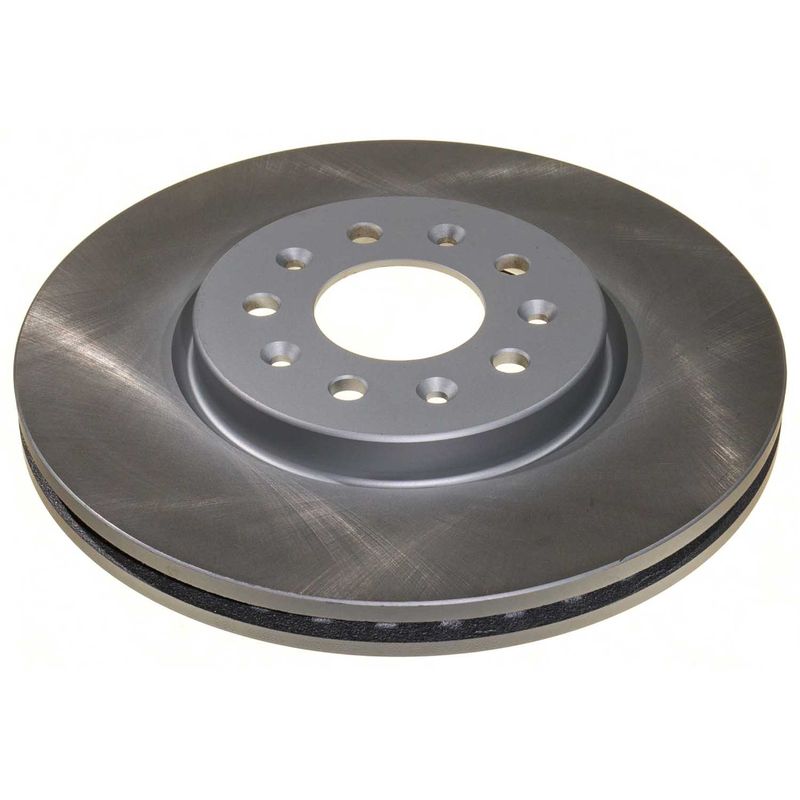

PowerStop AR82194SCR Disc Brake Rotor - Front
| Brand | PowerStop AR82194SCR |
|---|---|
| Position | Front |
| Discard Thickness | 1.02 |
| Discard Thickness | 26.00 |
| Nominal Thickness | 1.11 |
| Nominal Thickness | 28.10 |
| Balancing Type | Mill balanced |
| Construction | Full cast |
| Rust Resistant Coating | Yes |
| Overall Height | 1.81 |
| Overall Height | 45.90 |
| Outside Diameter | 12.65 |
| Outside Diameter | 321.20 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 115.00 |
| Mounting Bolt Hole Circle Diameter | 4.53 |
| Stud/Lug Hole Quantity | 5 |
| Product line | PowerStop - Front Coated Hat and Edge Rotor |
| Fits | Buick, Chevrolet, and GMC · 19 vehicles |
OE-style replacement. Direct bolt-on rotor built to match original equipment specifications.
Corrosion-resistant coating. Silver epoxy protects the hat, outer edge, and vanes from rust.
Vented cast design. Full cast construction with a smooth surface and mill-balanced finish.
Cross-references 13517847, 13518653 and 13583718 for the same application. See all 3.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Coated Front Brake Rotor
The PowerStop AR82194SCR is a front disc brake rotor built as a direct bolt-on replacement for original equipment. It uses a silver epoxy coating on corrosion-prone areas to help preserve appearance behind alloy wheels while matching OE performance and specifications.
Compatible with Chevrolet Equinox, Buick Regal Sportback, Buick Regal TourX, GMC Terrain, Buick LaCrosse, and Buick Envision front brake applications, this rotor is engineered around OE weight and vane count for proper fitment. The vented, full cast design with a smooth surface supports consistent braking performance, and the mill-balanced construction helps maintain rotor quality. This part cross-references GM OE numbers 13517847 and 13518653 for the same application.
Key Features
- Direct bolt-on replacement for original equipment
- Silver epoxy coating on the hat, outer edge, and vanes
- Vented, full cast rotor construction
- Mill balanced for consistent build quality
- Smooth surface finish with OE-matched specifications
- Part number AR82194SCR for easy identification
What It Helps Address
- Corrosion on exposed rotor surfaces
- Brake vibration caused by worn or uneven rotors
- Reduced braking consistency from rotor wear
- Appearance issues behind alloy wheels
- Fitment problems from non-OE-style dimensions
Installation Notes and Tips
Fits 2018-2021 Chevrolet Equinox, front. Fits 2018-2020 Buick Regal Sportback, front. Fits 2018-2020 Buick Regal TourX, front. Fits 2018-2020 GMC Terrain, front. Fits 2017-2019 Buick LaCrosse, front, J17 braking system. Fits 2016-2018 Buick Envision, front. Verify rotor dimensions, bolt circle, and brake system details before installation. The AR82194SCR is a front rotor, so confirm the application matches the vehicle’s front brake setup.
Quality Assurance
PowerStop designs this rotor to match original equipment performance and specifications, including weight and vane count, for guaranteed fitment. The coated finish adds corrosion resistance to help maintain the rotor’s appearance in daily use.
| Year | Make | Model | Drive Type | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2021 | Chevrolet | Equinox | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Buick | Regal Sportback | AWD | 2.0L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Buick | Regal TourX | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | Chevrolet | Equinox | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2020 | GMC | Terrain | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Buick | LaCrosse | — | — | — | Front | J17 Braking System; PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Buick | Regal Sportback | AWD | 2.0L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Buick | Regal TourX | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | Chevrolet | Equinox | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2019 | GMC | Terrain | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Buick | Envision | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Buick | LaCrosse | — | — | — | Front | J17 Braking System; PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Buick | Regal Sportback | AWD | 2.0L | L4 | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Buick | Regal TourX | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | Chevrolet | Equinox | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2018 | GMC | Terrain | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Buick | Envision | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| 2017 | Buick | LaCrosse | — | — | — | Front | J17 Braking System; PowerStop - Front Coated Hat and Edge Rotor |
| 2016 | Buick | Envision | — | — | — | Front | PowerStop - Front Coated Hat and Edge Rotor |
| No rows match your filter. | |||||||
